Installing Control Unit For PDCC

  1. Position control unit on the holder and secure it with the two fastening screws -1-  . Tightening torque 9.7 Nm (7.5 ftlb.)

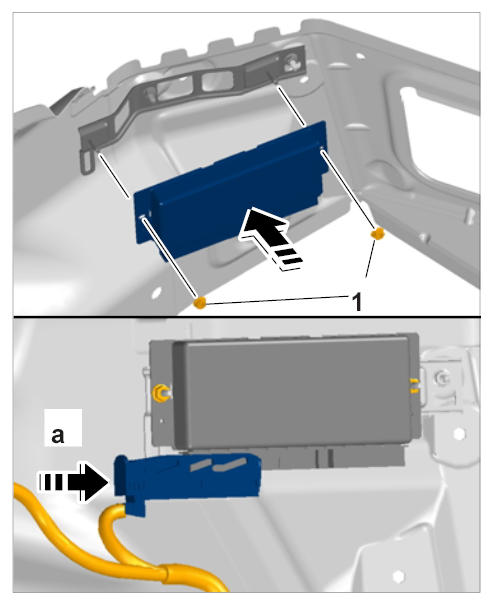

    Fig 1: Installing Control Unit Connector
    G09807771Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push connector onto the control unit and lock it -a-  .
