Installing Air Vent

Information

The description relates to the right side in direction of travel. The same procedure applies for the left side.

1. Plug in electric plug connections for the servo motors until they engage securely.

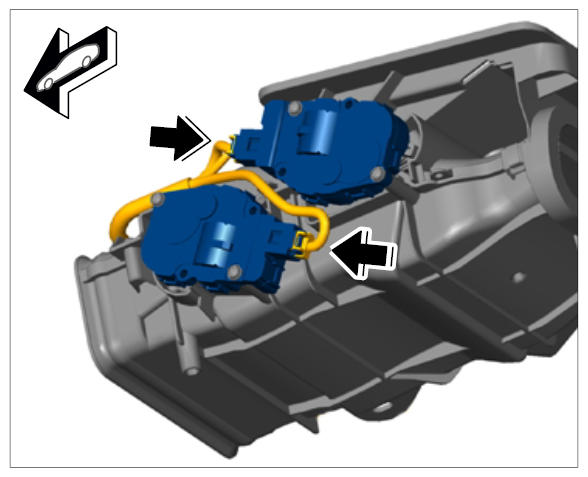

   Fig 1: Plugging In Electric Plug Connections For Servo Motors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Plug in electric plug connection for the temperature sensor until it engages securely.

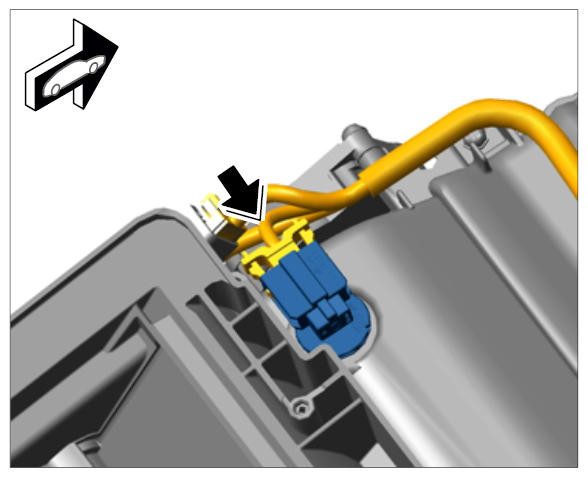

   Fig 2: Plugging In Electric Plug Connection For Temperature Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Insert the two line brackets -2-  into the air vent.

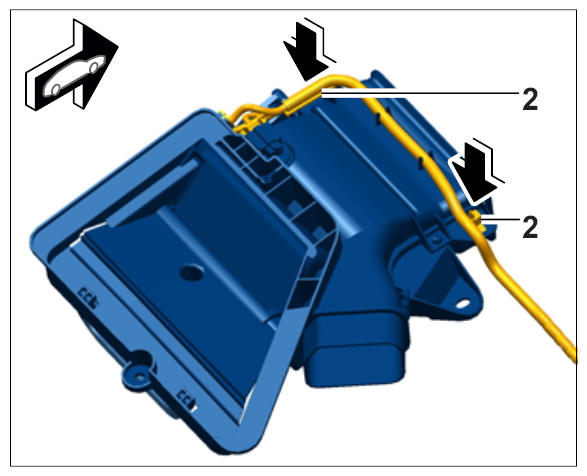

   Fig 3: Inserting Line Brackets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Position the air vent and slide it into the rear air guide at the center -1-  , into the air guide on the B-pillar -2-  and into the air guide on the front center console -3-  .

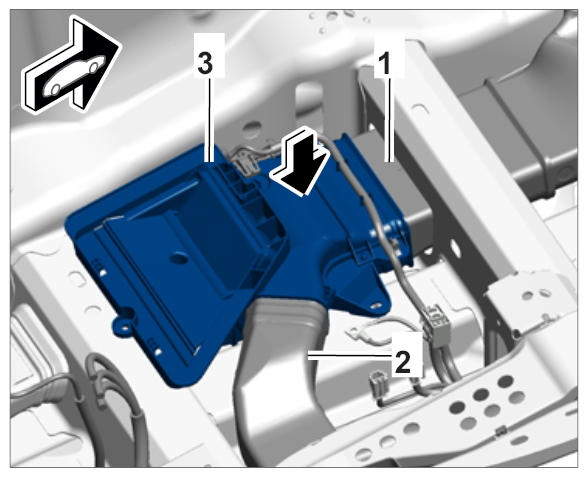

   Fig 4: Sliding In Air Vent

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Make sure that all the air guides engage securely.
6. Tighten the fastening nut -1-  on the B-pillar air guide.

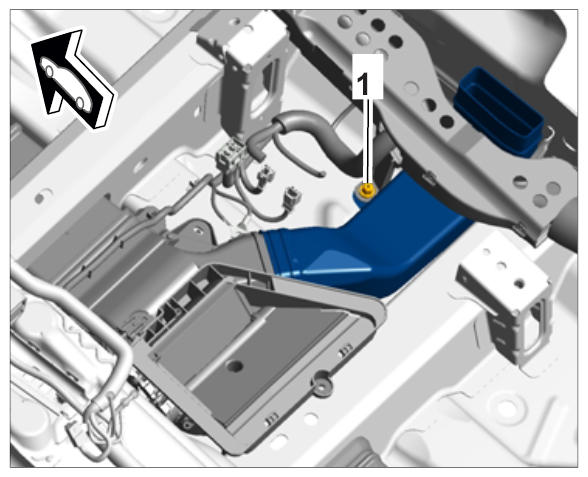

   Fig 5: Unscrewing Fastening Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Tighten the two fastening screws -1-  on the air vent.

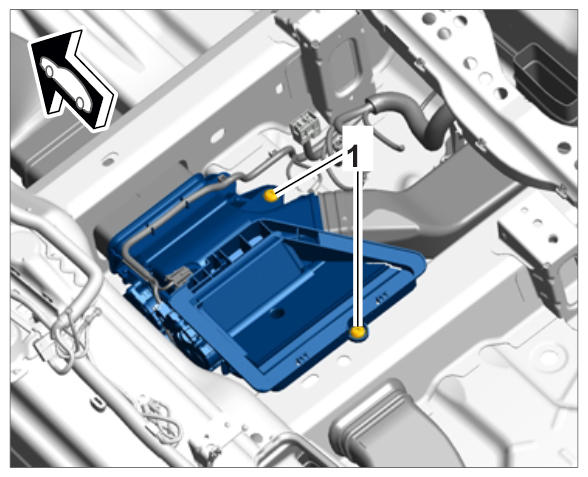

   Fig 6: Unscrewing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
