Preliminary Work

  1. Open the bonnet. The secondary-air pump is secured to the valve cover on cylinder bank 1-4 with a bracket.

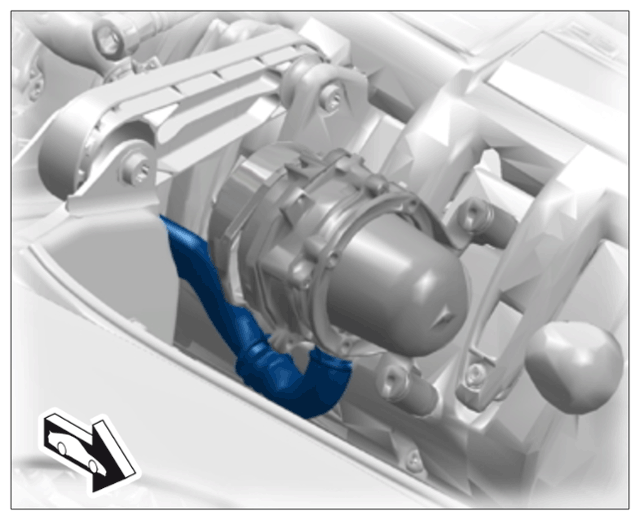

    G15198843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of secondary-air pump
