Removing And Installing Tailpipe Cover

  1. Unscrew screw -1-  and pull off tailpipe cover.

    > Tightening torque 8 Nm (6 ftlb.) +/- 1 (0.5 lb.) Nm

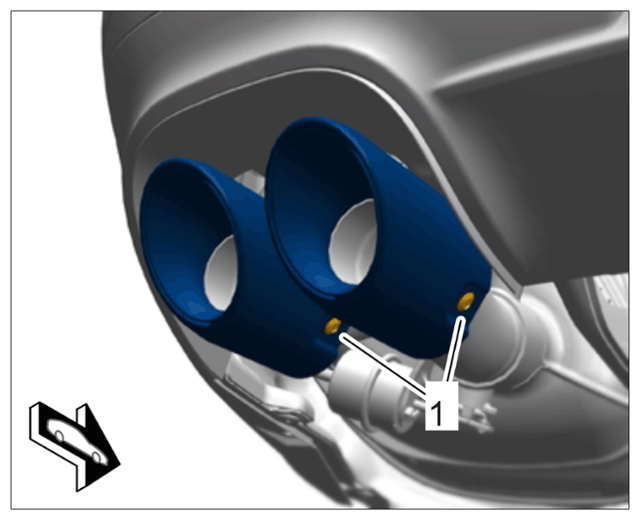

    G15198842Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tailpipe cover
