Installation Dimensions Of Exhaust System
Information
- The exhaust system can expand up to 30 mm to the rear during operation.
- If heat causes the exhaust system to expand during operation, it may touch against the luggage-compartment pan, rear axle or heat protection panels if it is not installed correct y and cause noise (tapping, rumbling, droning).
- During installation, the exhaust system must be positioned when cool with sufficient distance from neighboring components.
- When installing the exhaust system when cool, it is best to push the exhaust system towards the catalytic converters before fastening the clamping sleeves.
- Secure all 8 screws in the rubber mounting, push the exhaust system towards the catalytic converters, set the dimensions as shown in the illustration, screw on the clamping sleeves.

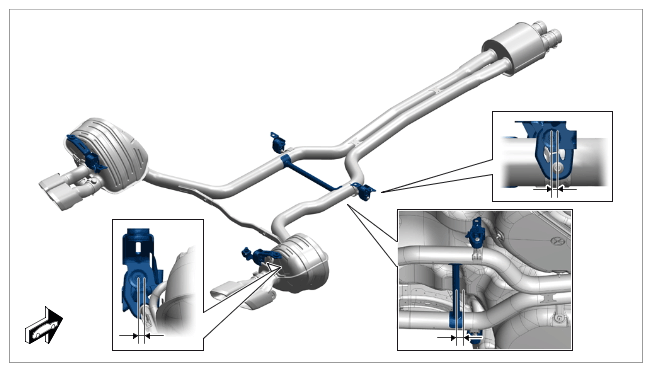

Installation dimensions of exhaust system when cold
| 1 | Set a tilt of approx. 7 mm at the rubber mounting (exhaust system can expand towards the rear). |
| 2 | Set a distance of approx. 8 mm from the centre of the crash support (pipe) to the rear axle housing. |
| 3 | Set a tilt of approx. 10 mm at the rubber mounting (exhaust system can expand towards the rear). |
