19 - Engine - Cooling -- PANAMERA (970)
>>
WM 192419 Removing And Installing Front Air Guide (LP) (PANAMERA, PANAMERA 4)
>>
Installing Front Air Guide
Installing Front Air Guide

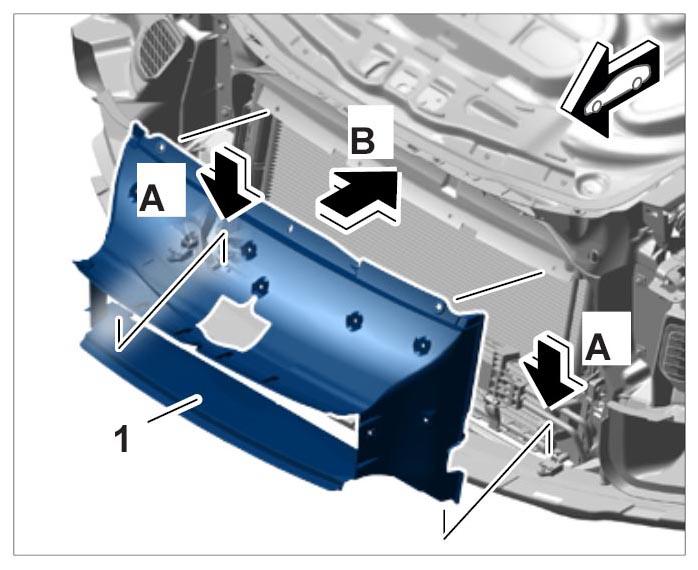

Fit air guide at the bottom
-arrows A-
.
Swivel in air guide
-arrow B-
.
Fig 1: Positioning Front Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

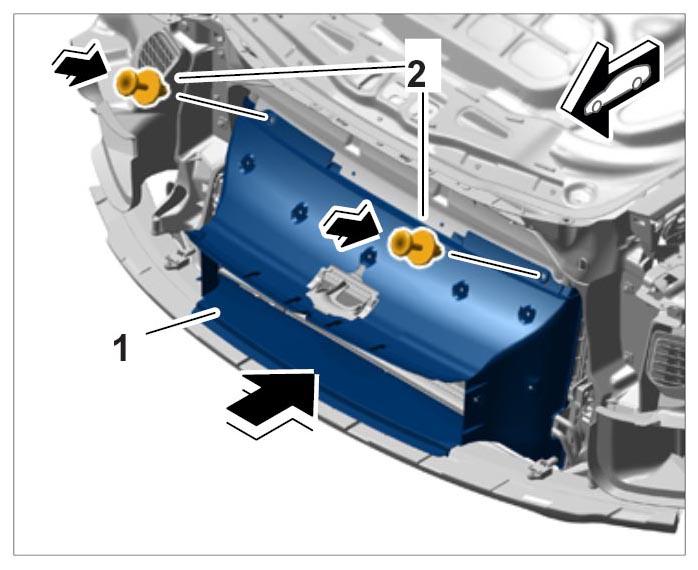

Secure the air guide
-1-
with expansion rivets
-2-
.
Fig 2: Securing Front Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
