Installing Upper Part Of Rear Lid Lock
- Place upper part of lid lock in installation position.
- Screw in and tighten fastening screws for upper part of lid lock Tightening torque 23 Nm (17 ftlb.) +/-2.3 Nm (+/-1, 7 ftlb.)
until secure.

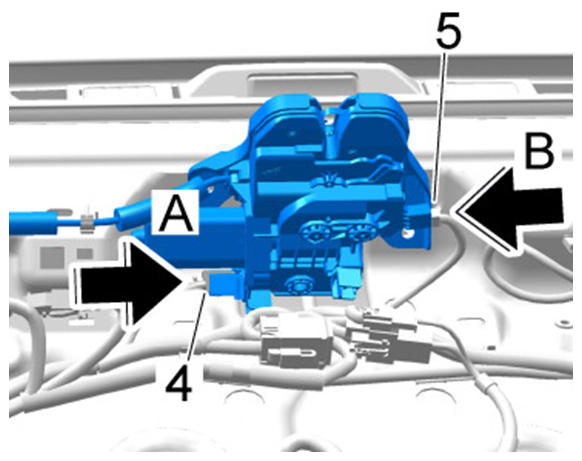

- Connect plug connections.
- 3.1. Plug in connector for control system -5-
(-B-
) until it engages securely.
- 3.2. Plug in connector for power supply -4-
(-A-
) until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

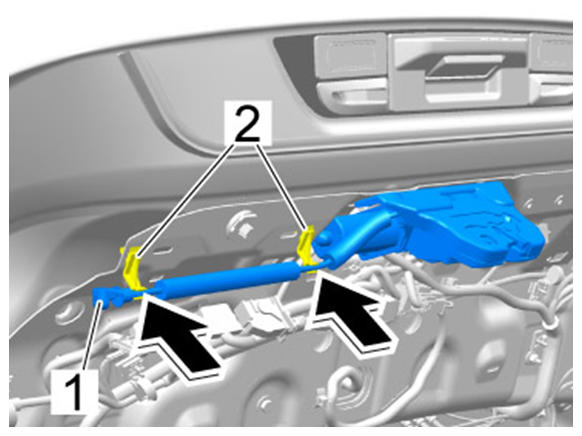

- Clip in emergency release -1-
(-2-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
