Removing Release For Rear Lid

  1. Pull section of insulation -5-  off the rear lid (under upper part of lid lock).

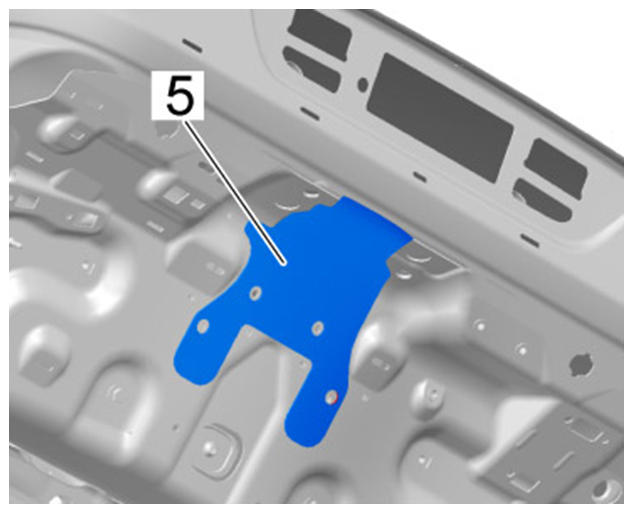

    Fig 1: Identifying Rear Lid Section Of Insulation
    G09810168Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw off fastening nuts -2-  for rear lid release -1-  from the fastening bolts -3-  .

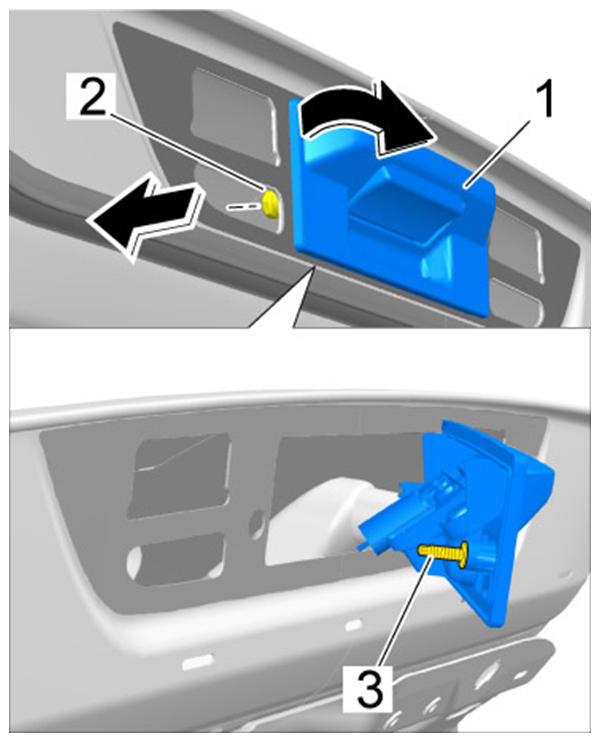

    Fig 2: Removing Rear Lid Nuts And Bolts
    G09810169Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove release.
  4. Release plug connection -4-  (-a-  ) and pull it off -A-  .

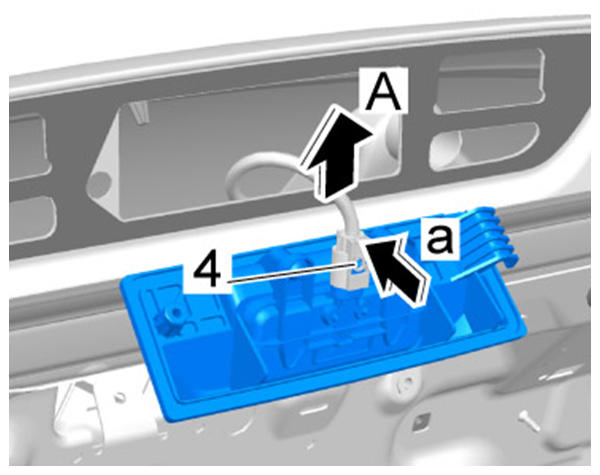

    Fig 3: Disconnecting Plug Connection
    G09810170Courtesy of PORSCHE CARS NORTH AMERICA, INC.
