Removing Cover For Front Underbody

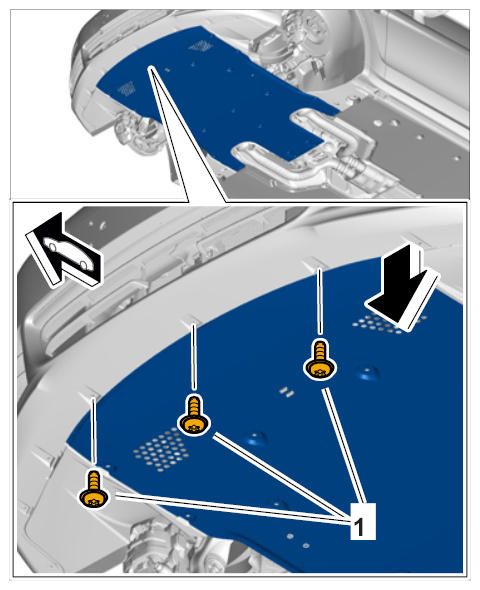

Unscrew fastening screws -1- for front apron.

Fig 1: Removing Fastening Screws For Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

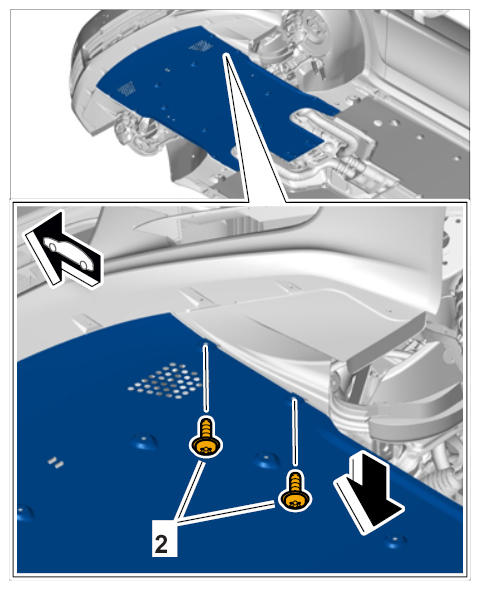

Unscrew fastening screws -2- for right wheel housing liner.

Fig 2: Removing Fastening Screws For Right Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

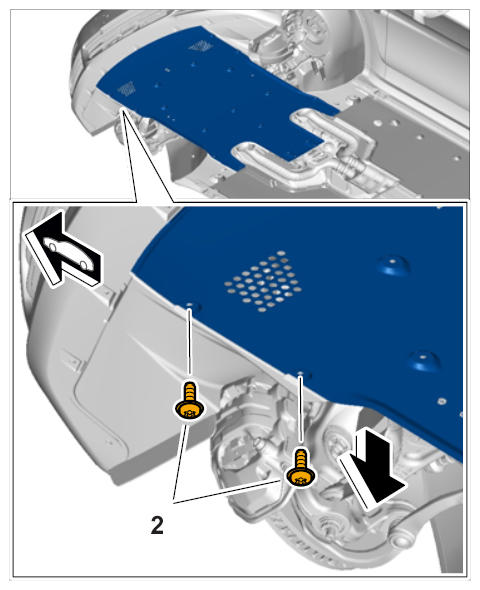

Unscrew fastening screws -2- for left wheel housing liner.

Fig 3: Removing Fastening Screws For Left Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

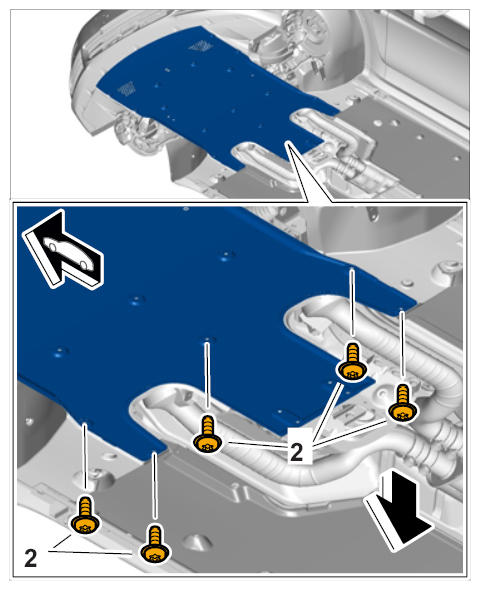

Unscrew fastening screws -2- for transmission support.

Fig 4: Removing Fastening Screws For Transmission Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

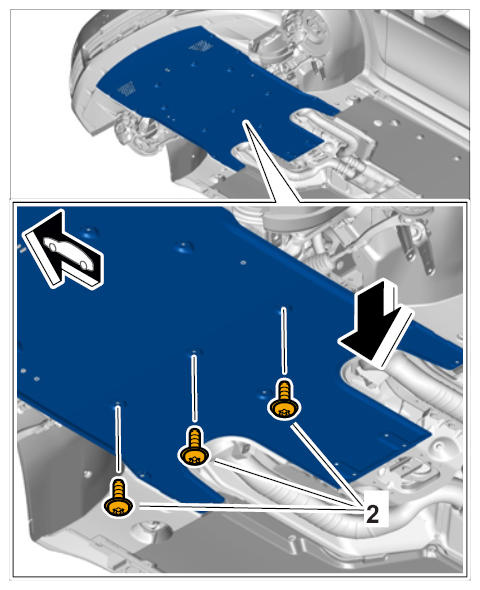

Unscrew fastening screws -2- at the rear.

Fig 5: Removing Rear Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

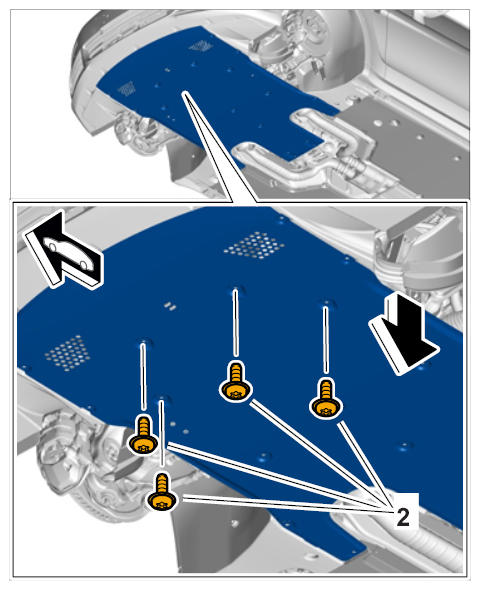

Unscrew center fastening screws -2- at the rear.

Fig 6: Removing Center Fastening Screws At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

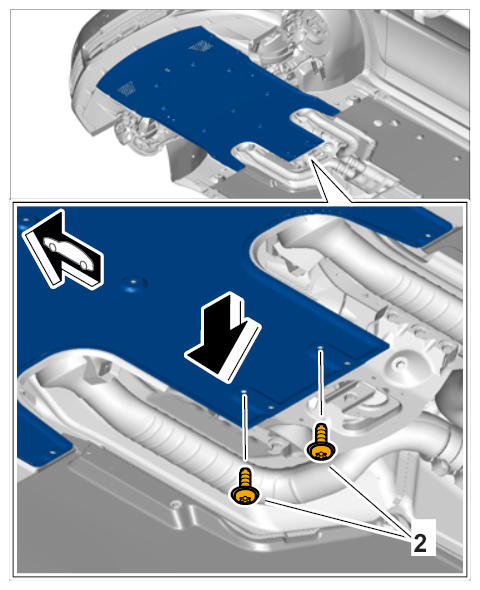

Unscrew center fastening screws -2- at the front.

Fig 7: Removing Center Fastening Screws At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover.
