Installing Front Part Of C-Pillar Trim Panel

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

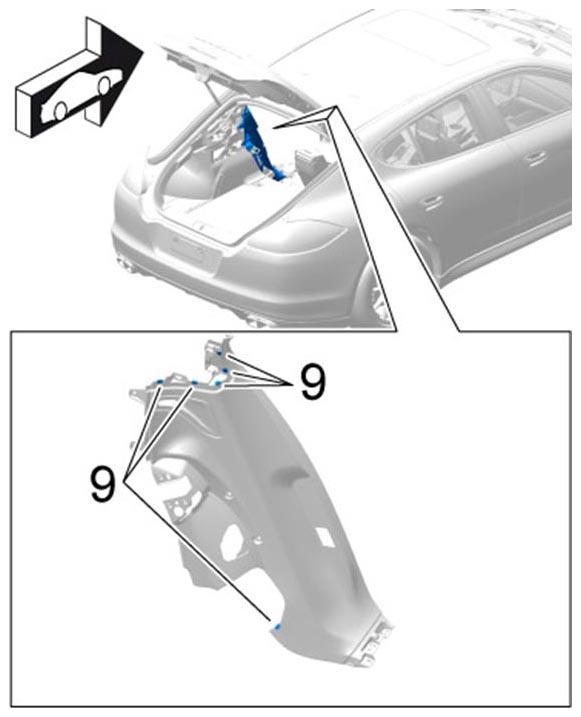

1. Check that rubber supports -9-  are fitted and check condition.

   Replace if necessary.

   Fig 1: Checking Rubber Supports

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

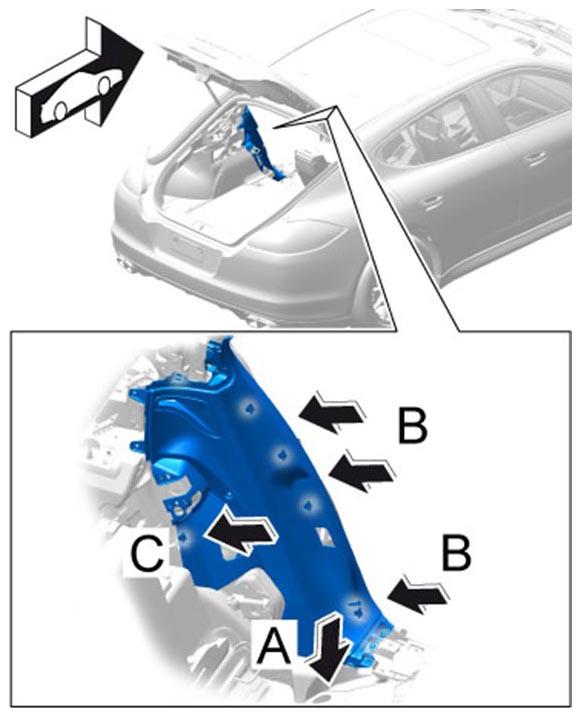

2. Place front part of C-pillar trim panel in installation position -A-  .
   1. 2.1. Make sure that the speed nut is positioned correctly.
3. Clip in front part of C-pillar trim panel.
   1. 3.1. Clip in outer fixing clips -B-  .
   2. 3.2. Clip in inner fixing clips at the bottom -C-  .
   Fig 2: Clipping In Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

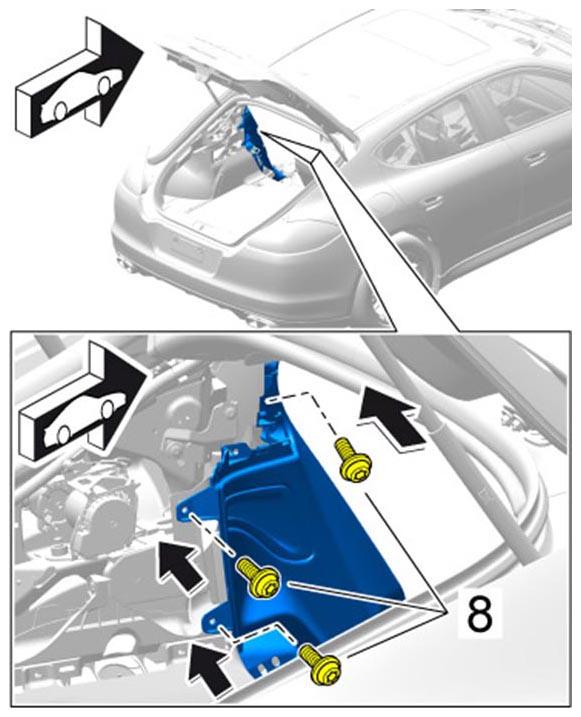

4. Tighten fastening screws to the specified tightening torque Tightening torque 1.7 Nm  until secure.
   Fig 3: Securing Front Part Of C-Pillar Trim Panel At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

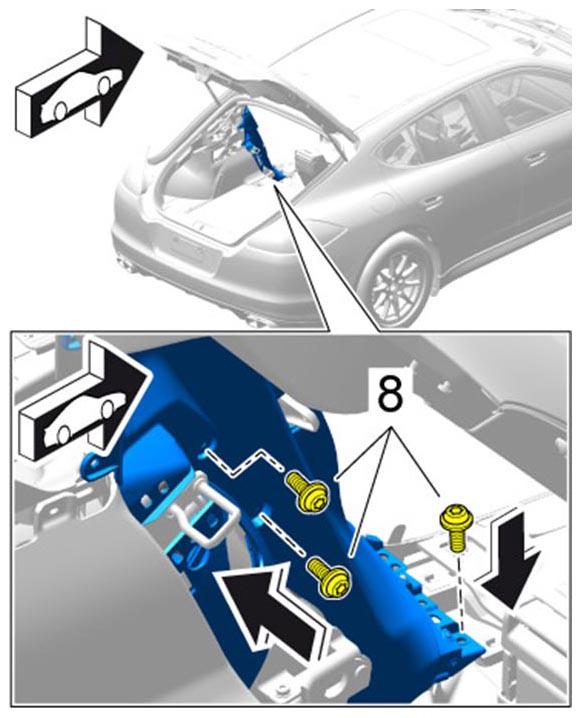

5. Tighten fastening screws to the specified tightening torque Tightening torque 1.7 Nm  until secure.
   Fig 4: Securing Front Part Of C-Pillar Trim Panel At Bottom

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

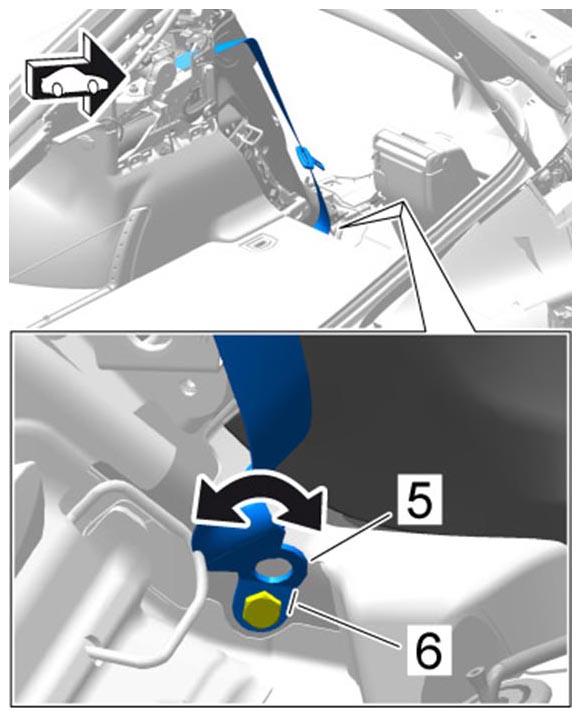

6. Position belt fitting -5-  at the marking -6-  and tighten to the specified tightening torque Tightening torque 50 Nm  (37 ftlb.) until secure.
   Fig 5: Positioning Belt Fitting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

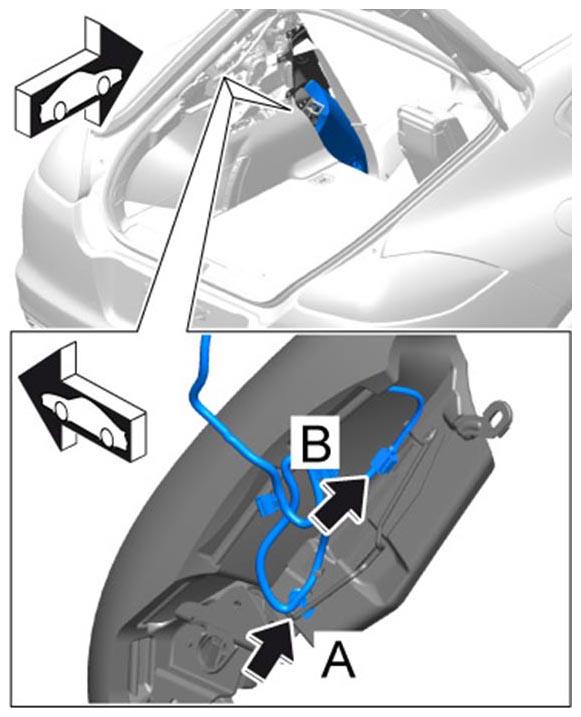

7. Secure plug connection.
   1. 7.1. Clip in wire harness -A-  .
   2. 7.2. Insert plug connection until it engages securely -B-  .
   Fig 6: Connecting Plug Connection
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

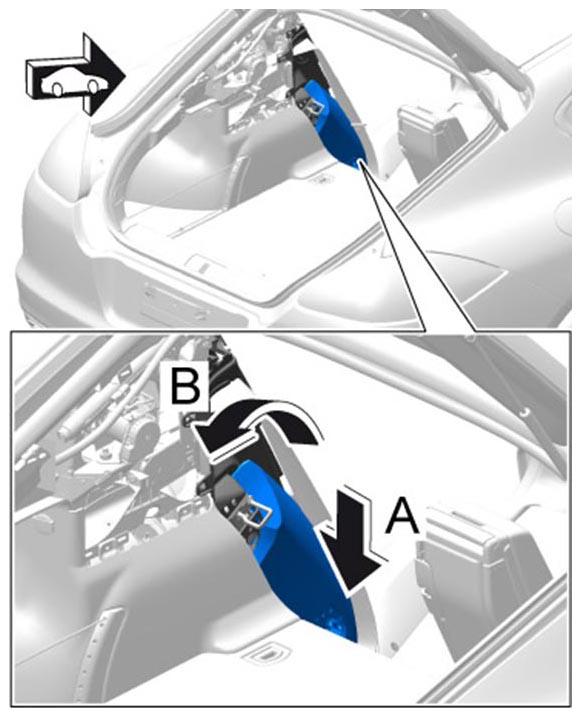

8. Clip in backrest side panel -A-  and swivel it into position -B-  .
   Fig 7: Clipping In Backrest Side Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

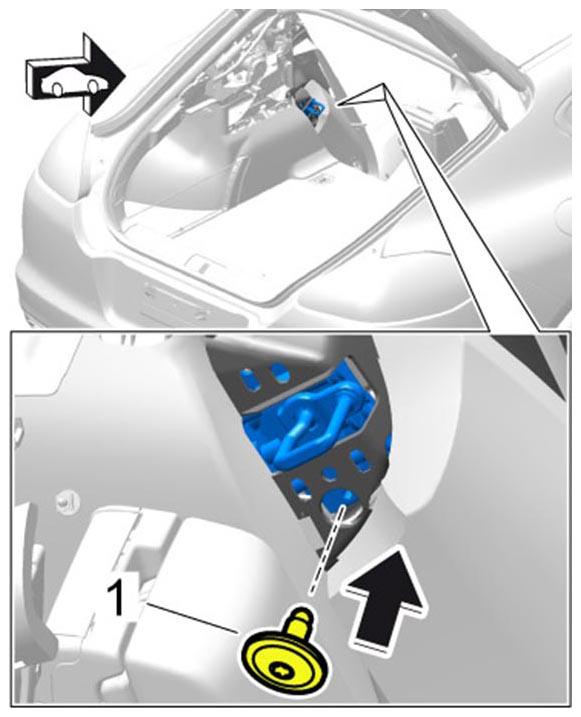

9. Tighten fastening screw -1-  to specified tightening torque Tightening torque 10 Nm (7.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)  until secure.
   Fig 8: Securing Backrest Side Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

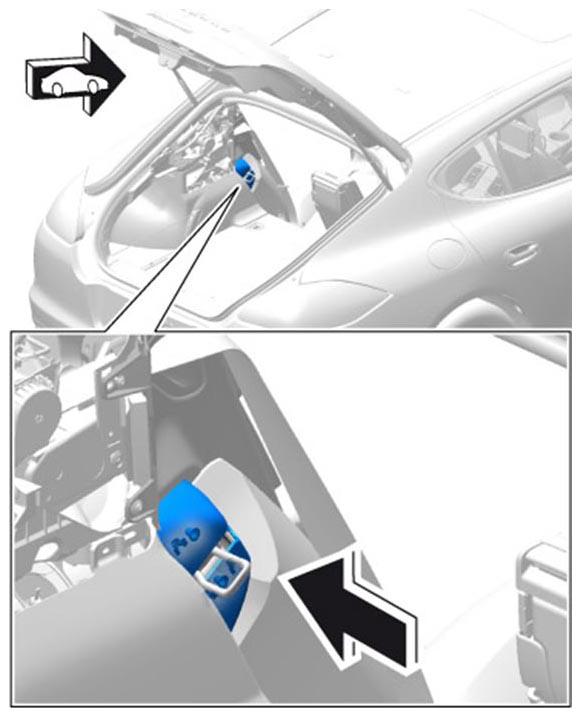

10. Clip in cover.
    Fig 9: Clipping In Cover

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

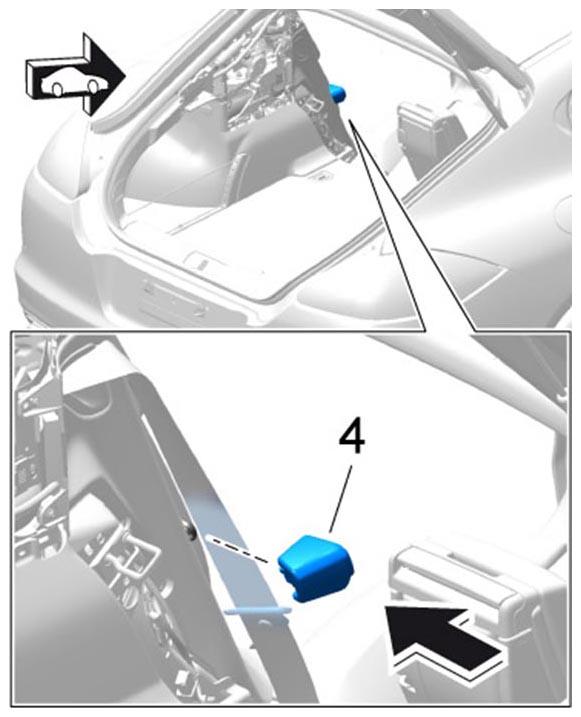

11. Position armrest extension -4-  and align the door panel according to the armrest contour.
    Fig 10: Positioning Armrest Extension

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

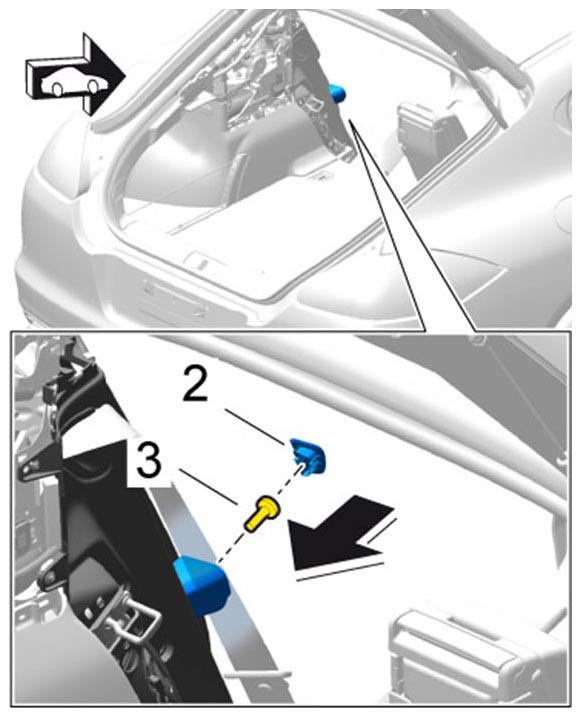

12. Secure armrest extension.
    1. 12.1. Tighten fastening screw -3-  to specified tightening torque Tightening torque 5.5 Nm (4 ftlb.) until secure.
    2. 12.2. Press in cover -2-  .
    Fig 11: Securing Armrest Extension

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
