Installing Rear Grab Handle

Fit grab handle -1- .

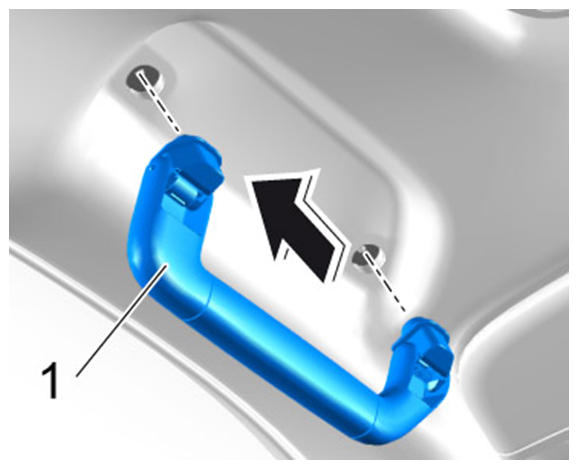

Fig 1: Fitting Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -3- to the specified tightening torque Tightening torque 5.5 Nm (4 ftlb.) until secure.

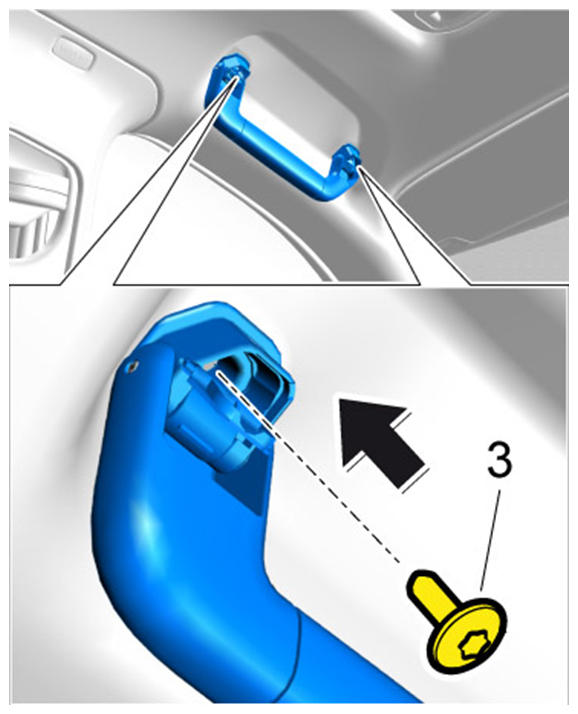

Fig 2: Securing Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close cover -2- .

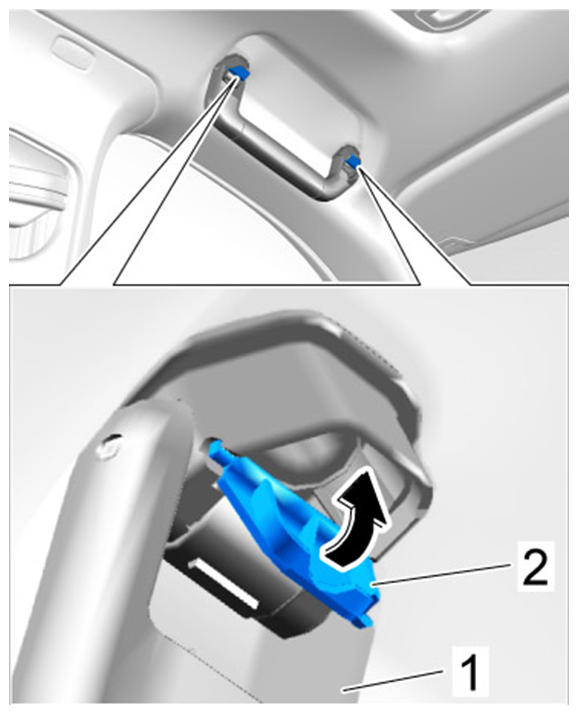

Fig 3: Closing Covers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The handle must return itself to a normal position after it is released!
Check fold-in function.

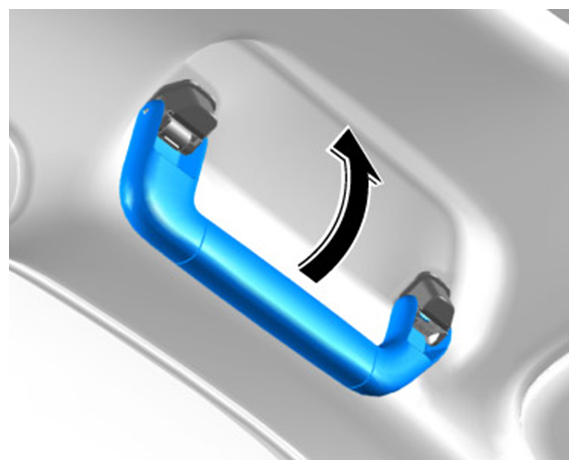

Fig 4: Folding In Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
