Removing Trailer Hitch Control Unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

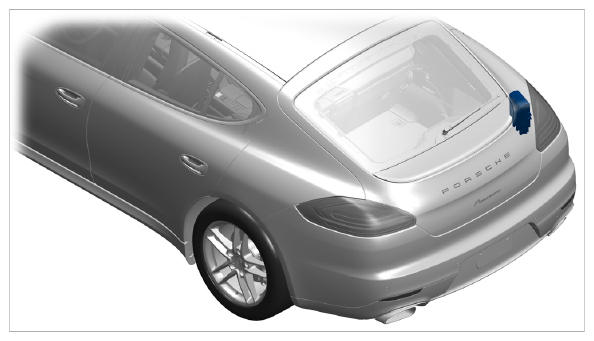

Fig 1: Identifying Trailer Hitch Control Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

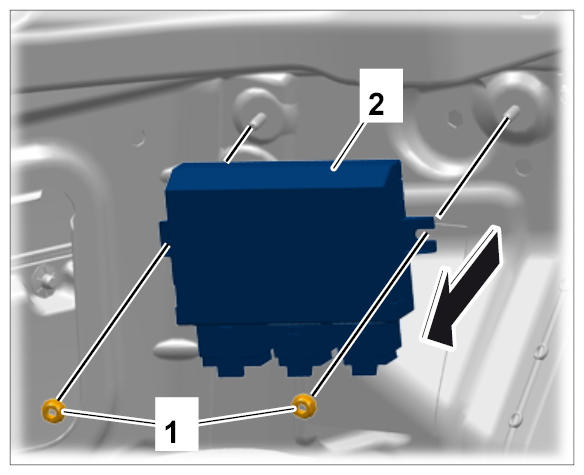

1. Unscrew both fastening nuts -1-  .
2. Take control unit -2-  out of the holder.
Fig 2: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

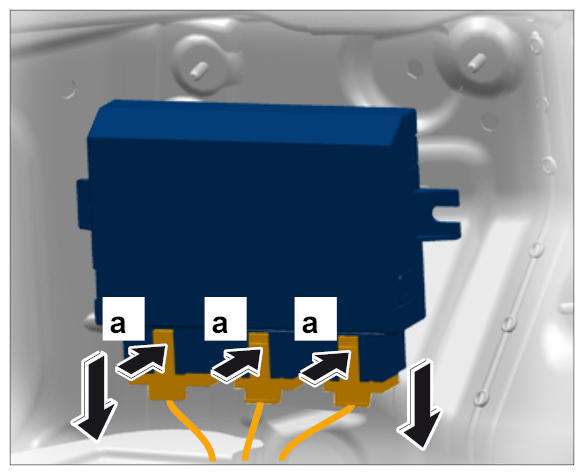

3. Release and unplug electric connectors -a-  .
   Fig 3: Releasing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
