Removing Spoiler Drive

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

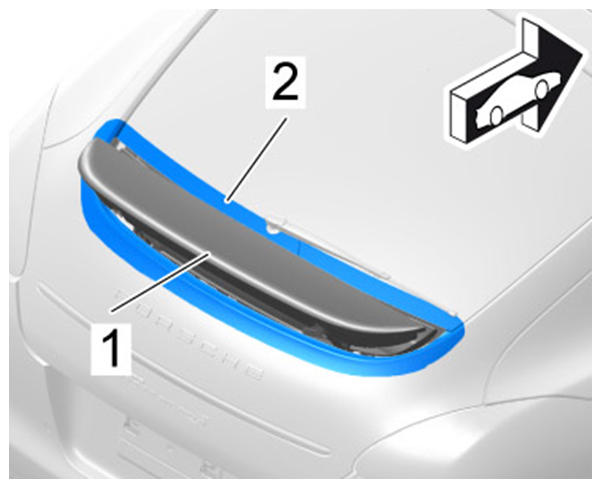

1. Extend the spoiler -1-  .
2. Switch off ignition and remove remote control (hand-held transmitter).
3. Affix adhesive tape -2-  to protect the adjacent areas of the spoiler recess.

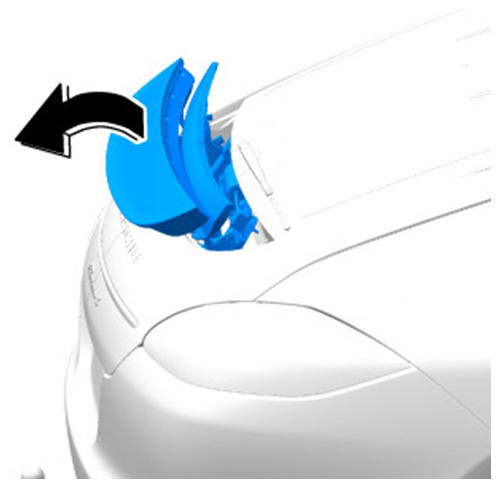

Fig 1: Removing Spoiler Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Disconnect wire harness.
   1. 4.1. Release plug connection -3-  (-a-  ) and pull it off -B-  .
   2. 4.2. Lever off retaining clip -4-  for wire harness.
   3. 4.3. Disconnect the cable strap -5-  and remove it from the lid.

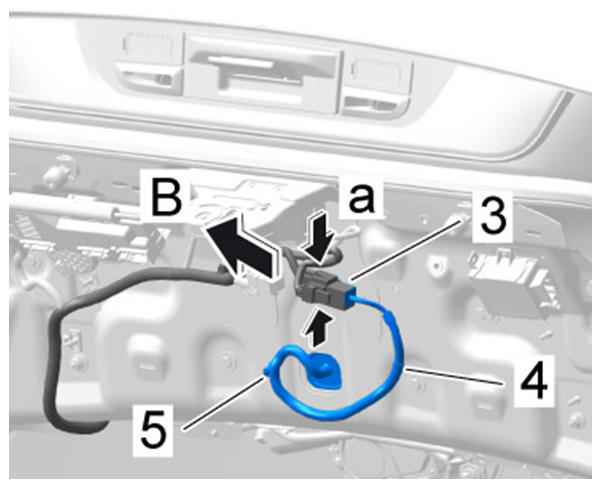

   Fig 2: Disconnecting Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

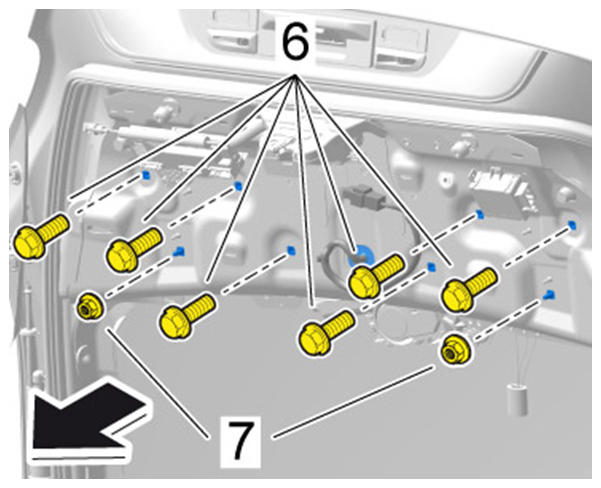

5. Unscrew fastening screws -6-  .
6. Screw off fastening nuts -7-  .
Fig 3: Identifying Spoiler Drive Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Swivel spoiler drive out towards the rear -arrow-  and remove it.
   Fig 4: Removing Spoiler Drive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

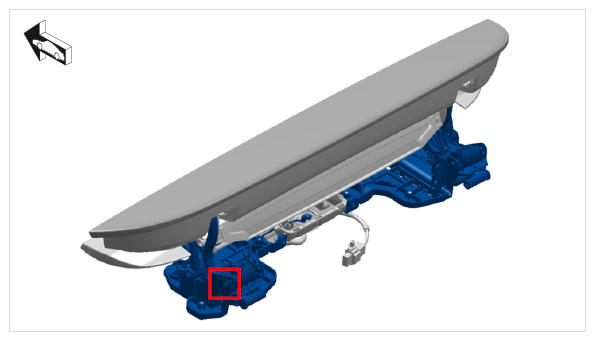

Fig 1: Identifying Installation Position Of Spoiler Drive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen wire harness for rear spoiler at the left spoiler drive.

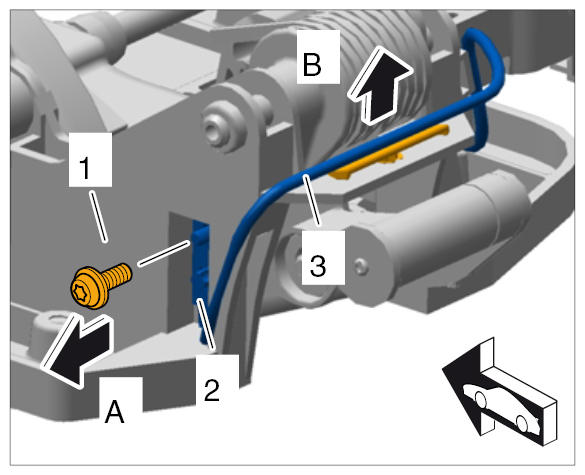

   1. 1.1. Unscrew fastening screw -1-  and remove microswitch for rear spoiler -2-  (-arrow A-  ).
   2. 1.2. Unclip wire harness for rear spoiler -3-  at the spoiler drive -arrow B-  and remove it.

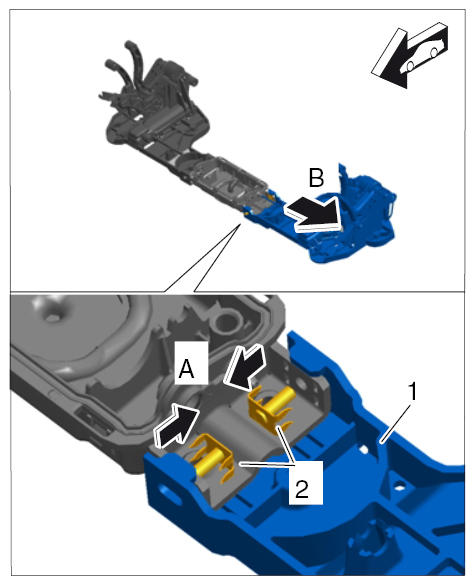

      Fig 2: Removing Wire Harness For Rear Spoiler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove rear cover.
   1. 2.1. Press pin on expanding clip -2-  through using a punch -arrow A-  and take expanding clip -2-  out of the rear cover -1-  .
   2. 2.2. Release clip on rear cover -1-  using a small screwdriver -arrow a-  and pull it off the spoiler drive -arrow B-  .

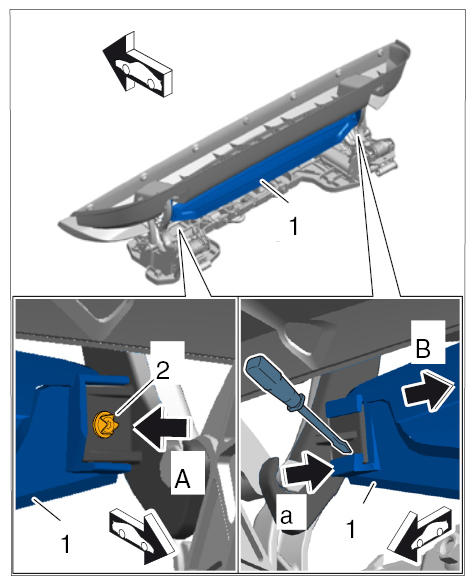

      Fig 3: Removing Rear Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove closing element of rear spoiler.
   1. 3.1. Mark installation position of closing element of rear spoiler -2-  with respect to the two spoiler drives -3-  .
   2. 3.2. Unscrew and remove fastening screws -1-  on closing element of rear spoiler -2-  on both sides -arrows A-  .
   3. 3.3. Remove closing element of rear spoiler -2-  - -arrow B-

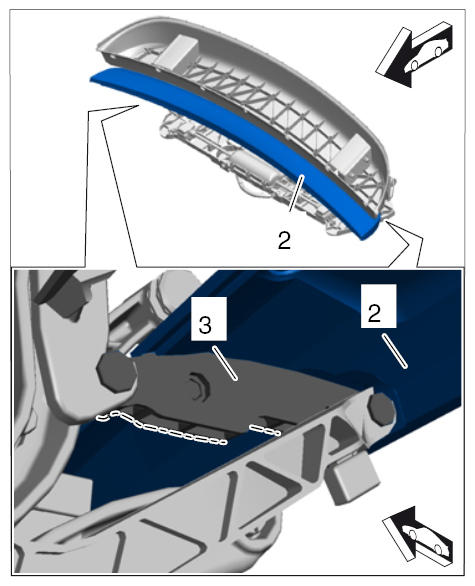

      Fig 4: Installation Position Of Closing Element Of Rear Spoiler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

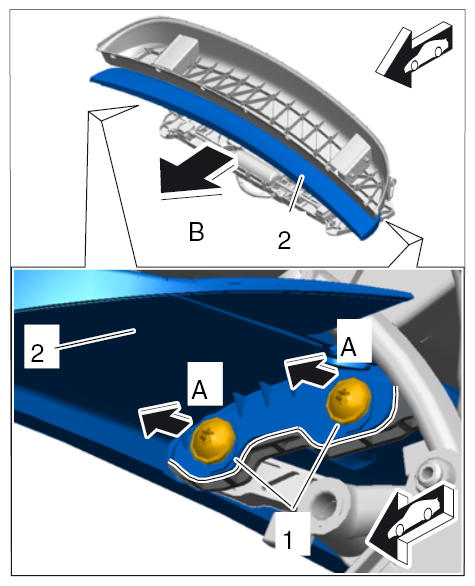

      Fig 5: Removing Closing Element Of Rear Spoiler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

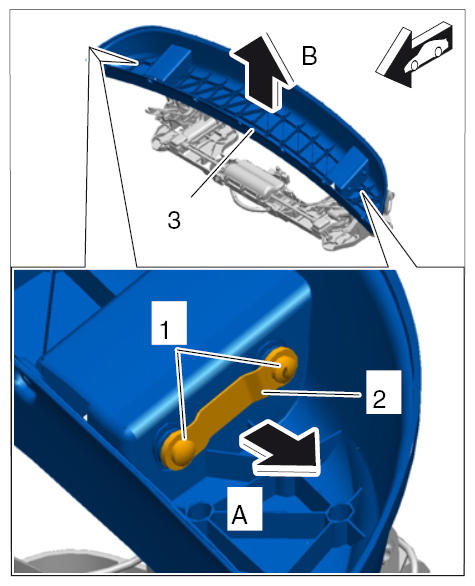

4. Remove lower part of rear spoiler.
   1. 4.1. Mark installation position of lower part of rear spoiler -3-  with respect to the two spoiler drives -4-  .
   2. 4.2. Unscrew and remove fastening screws -1-  on lower part of rear spoiler -3-  on both sides and remove retaining brackets -2-  (-arrow A-  ).
   3. 4.3. Remove lower part of rear spoiler -3-  (-arrow B-  ).

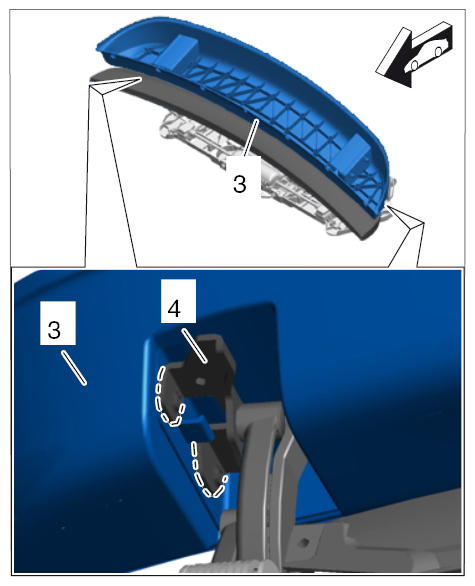

      Fig 6: Identifying Installation Position Of Lower Part Of Rear Spoiler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 7: Removing Lower Part Of Rear Spoiler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

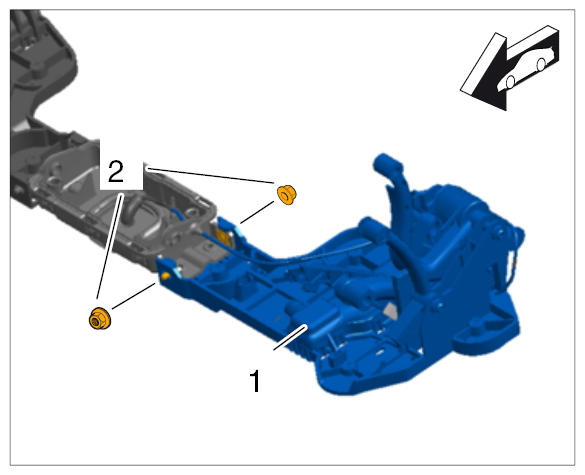

5. Screw off fastening nuts -2-  on the spoiler drive -1-  .
   Fig 8: Identifying Fastening Nuts On Spoiler Drive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove threaded bolts -2-  from the spoiler drive -1-  (-arrows A-  ) and remove the spoiler drive -1-  (-arrow B-  ).
   Fig 9: Removing Spoiler Drive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
