Installing Lower Part Of Rear Lid Lock

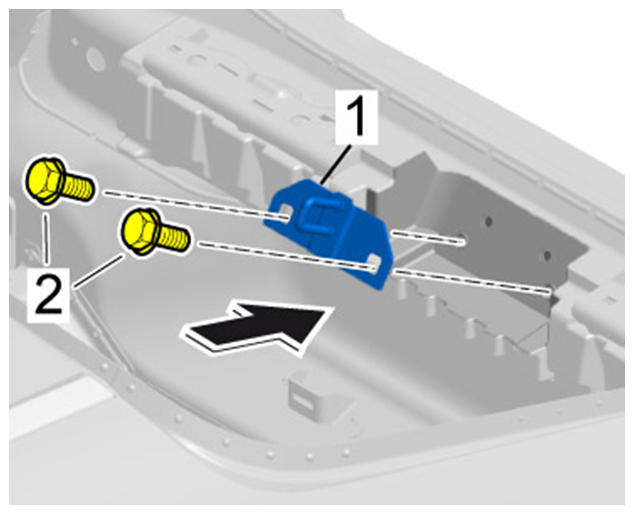

- Place lower part of lid lock -1-
in installation position.
- Tighten fastening screws -2-
slightly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

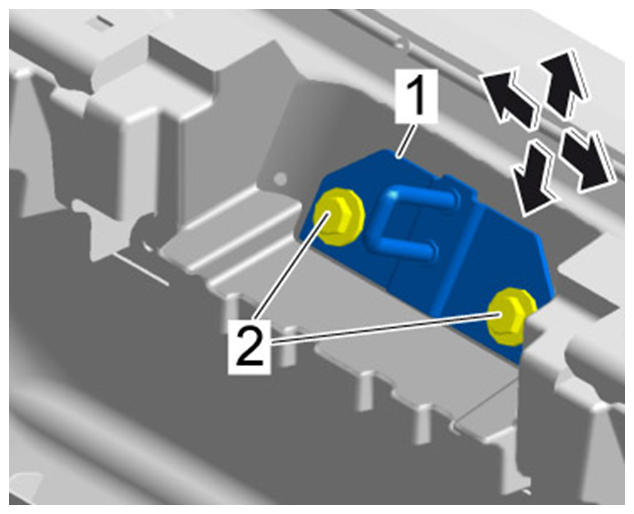

- Position lower part of lid lock -1-
on the old impressions.
- Tighten fastening screws to the specified tightening torque Tightening torque 23 Nm (17 ftlb.) +/-2.3 Nm (+/-1, 7 ftlb.) -2-
until secure.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Check adjustment of rear lid and re-adjust if necessary. → 559015 ADJUSTING REAR LID
