Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening nuts on upper part of lid lock | Tightening torque | 9.7 Nm (7.5 ftlb.) | |||
|

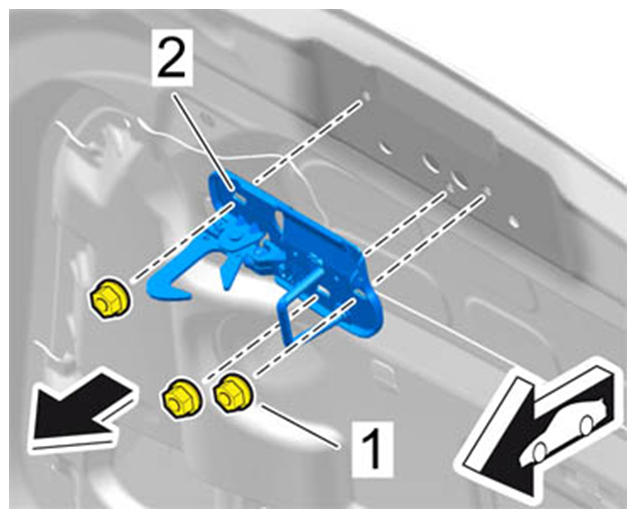

Fastening nuts on upper part of lid lock |
|||||
| Fastening screws securing lid hinge to bodyshell | Item 1 | Tightening torque | 33 Nm (24 ftlb.) | ||
|

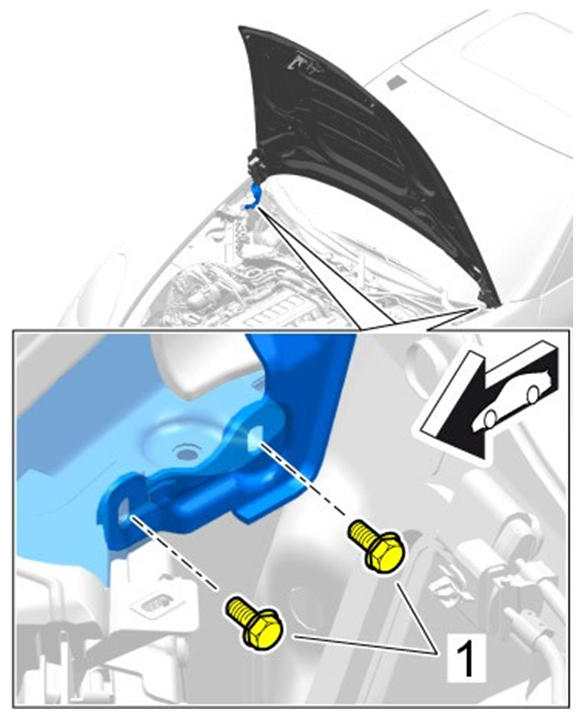

Removing front lid hinge |
|||||

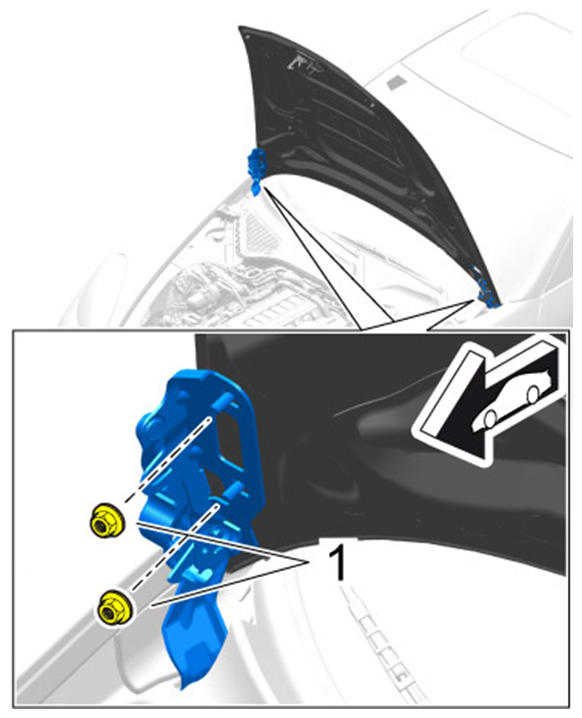

| Fastening nuts securing front lid to hinge | Item 1 | Tightening torque | 20 Nm | ||
|
Mounting for front lid |
|||||
| Front apron to front lid (B1) | Gap dimension | 3.5 mm | +/-0.5 mm | ||
|

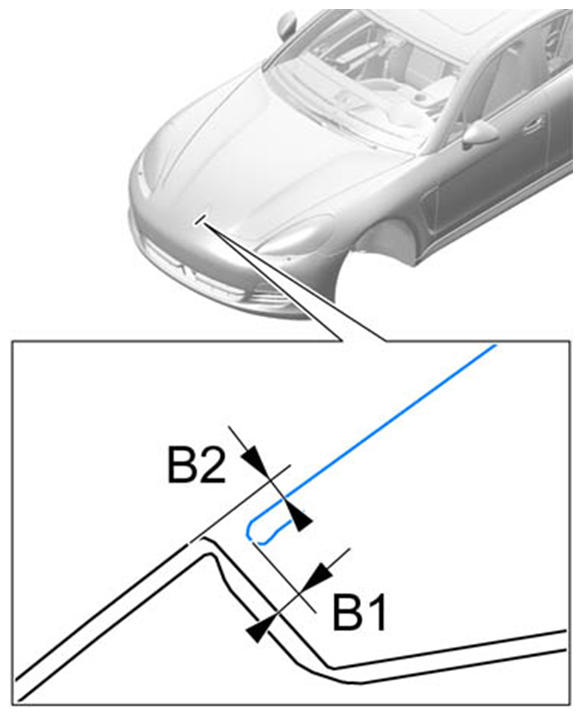

Gap dimension |
|||||
| Front apron to front lid (B2) | Offset | Gap dimension | -1 mm | +/-0.5 mm | |
|
Gap dimension |
|||||

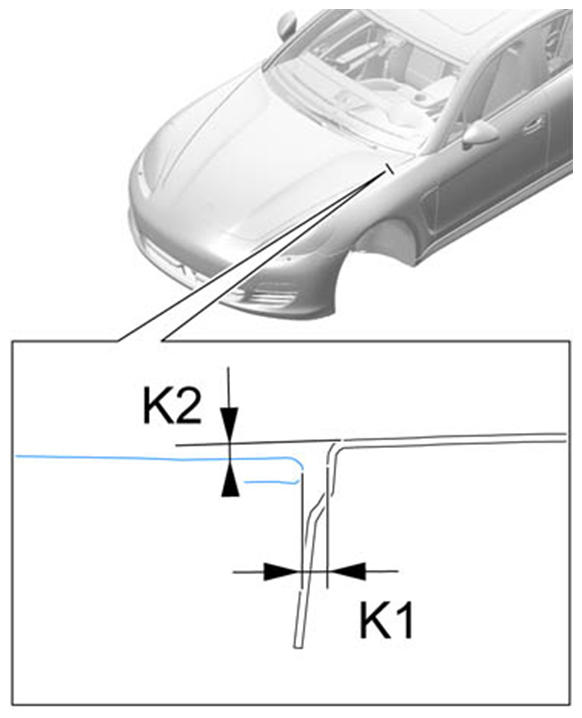

| Lid to wing (K1) | Gap dimension | 3.5 mm | +/-0.8 mm | ||
|
Gap dimension |
|||||
|
Gap dimension |
|||||

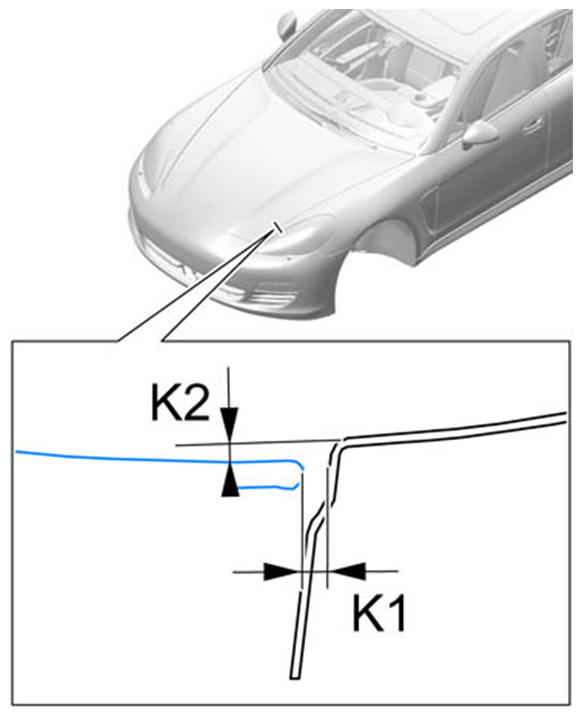

| Lid to wing (K2) | Offset | Gap dimension | -0.5 mm | +/-0.5 mm | |
|
Gap dimension |
|||||
|
Gap dimension |
|||||
