Adjusting Height Of Front Lid

Check that the lower part of the lid lock is at the basic setting in accordance with → 551719 REMOVING AND INSTALLING LOWER PART OF FRONT LID LOCK and correct it if necessary.
Remove cowl panel cover. → REMOVING COWL PANEL COVER
Loosen the fastening screws -3- so that the hinge can still be moved.

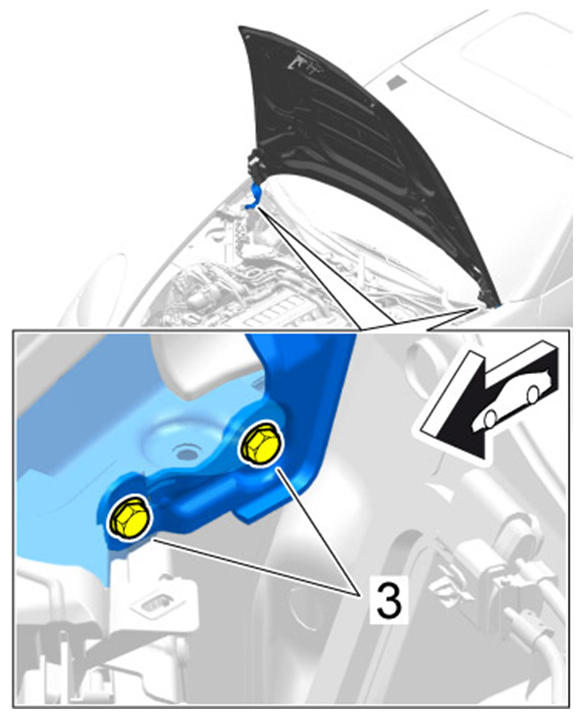

Fig 1: Loosening Front Lid Hinge Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the front lid.
Adjust the height by moving the lid.
- Front apron to front lid (B1). Gap dimension 3.5 mm +/-0.5 mm
- Front apron to front lid (B2). Gap dimension -1 mm +/-0.5 mm
- Lid to wing (K1). Gap dimension 3.5 mm +/-0.8 mm
- Lid to wing (K2). Gap dimension -0.5 mm +/-0.5 mm

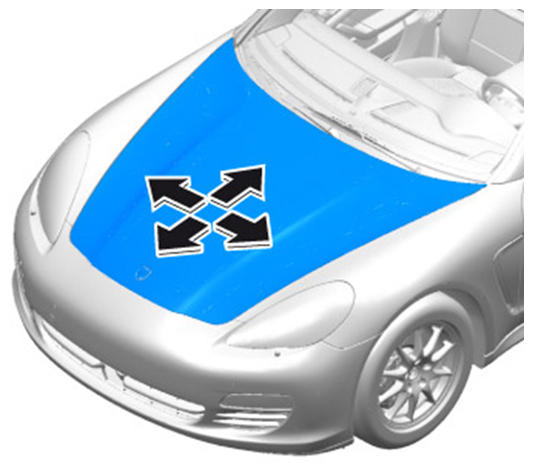

  Fig 2: Adjusting Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the front lid and check the setting. If the setting does not match the required values, the steps must be repeated.
Tighten fastening screws -3- to the specified tightening torque Tightening torque 33 Nm (24 ftlb.) until secure.

Fig 3: Securing Front Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cowl panel cover. → INSTALLING COWL PANEL COVER
