Installing Upper Part Of Front Lid Lock: Notes

Information

• The self-locking nuts and screws must always be replaced.

1. Roughly position upper part of lid lock -2-  .
2. Screw on fastening nuts -1-  but do not tighten them.

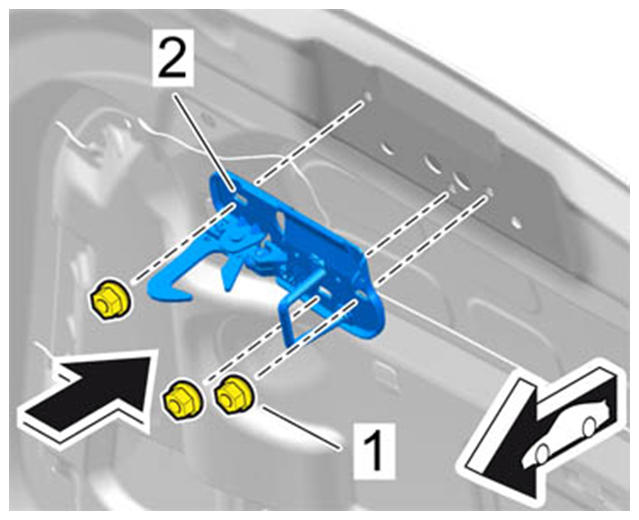

Fig 1: Positioning Upper Part Of Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Close the lid slowly until the clip -1-  for the upper part of the lock is touching the lower part of the lock.
   1. 3.1. The clip -1-  must be centered flush with the slit -2-  in the lower part of the lock.

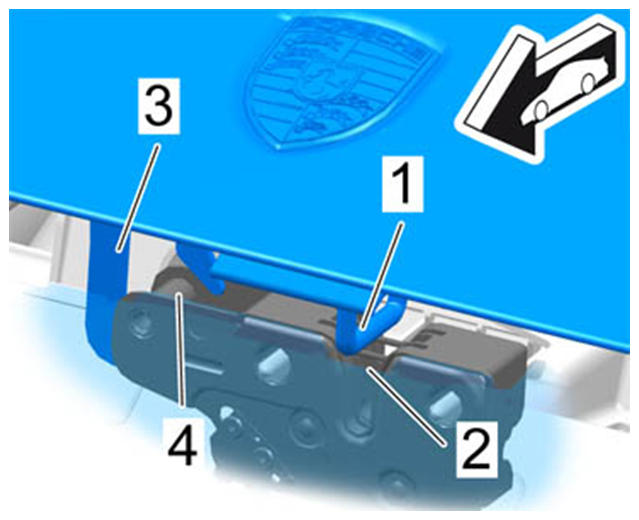

   Fig 2: Identifying Clip And Centered Flush Slit On Lower Part Lock
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Open the lid again.
5. Tighten fastening nuts to the specified tightening torque. Tightening torque 9.7 Nm (7.5 ftlb.)
