Installing Lower Part Of Lid Lock

Installation is performed in reverse order to removal.

1. Install the lock flush with the upper edge of the mounting bracket -arrow-  .

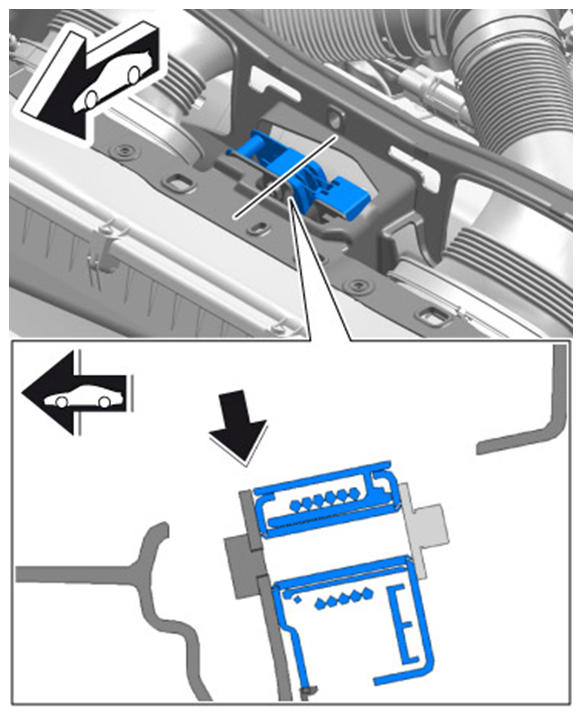

   Fig 1: Locating Lock Flush

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screws to the specified tightening torque. Tightening torque 9.5 Nm
3. Perform a function test.
   1. 3.1. Engage hook using a screwdriver.
   2. 3.2. Release the lid lock by actuating the inner opener.
