Removing Cable For Lid Lock

  1. Unclip cable for front lid -1-  at the lower part of the front lid lock.
    1. 1.1. Release locking lug -2-  on cable for front lid -A-  .
    2. 1.2. Unclip cable for lower part of lid lock -1-  (-B-  ).

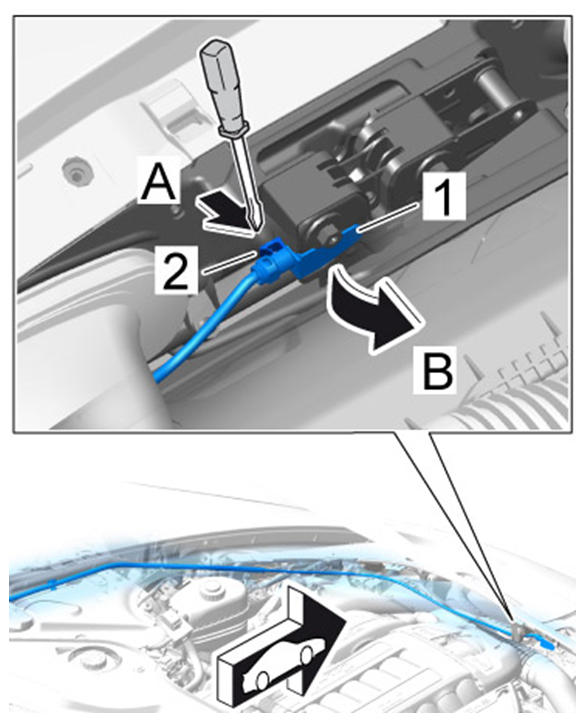

      3. Fig 1: Disconnecting Cable At Lower Part Of Lid Lock
      G09810102Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect cable for front lid at the release mechanism.
    1. 2.1. Unclip guide tube at the release mechanism and swivel the cable out -A-  .
    2. 2.2. Remove the cable from the mounting -B-  .

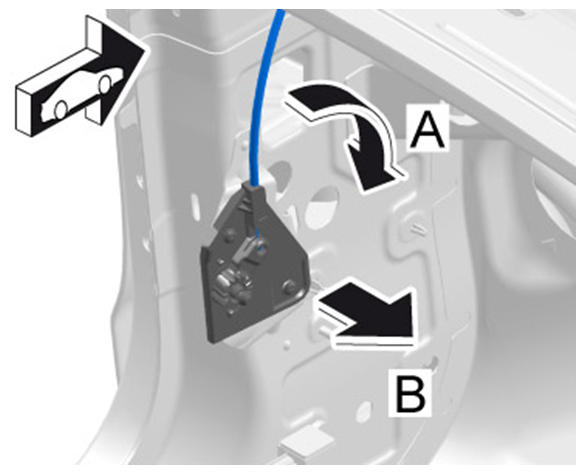

    Fig 2: Disconnecting Cable Of Front Lid
    G09810103Courtesy of PORSCHE CARS NORTH AMERICA, INC.
