Installing Cable For Lid Lock

  1. Secure cable for front lid release.
    1. 1.1. Fit driver into the bracket -A-  .
    2. 1.2. Clip guide tube into the bracket -B-  .

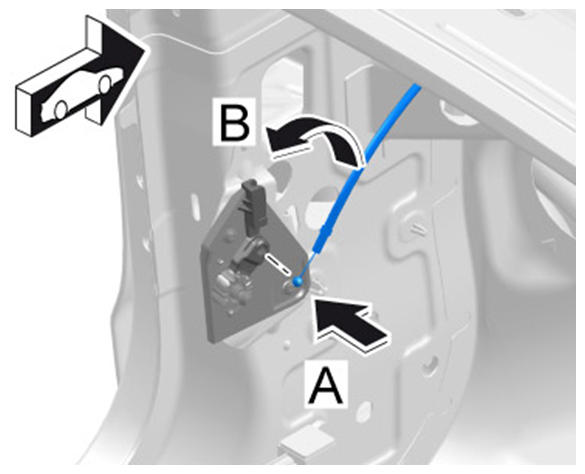

      3. Fig 1: Securing Cable For Front Lid
      G09810104Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure cable for release for lower part of front lid lock.
    1. 2.1. Clip driver into installation position.
    2. 2.2. Clip in cable -1-  on lower part of lid lock.

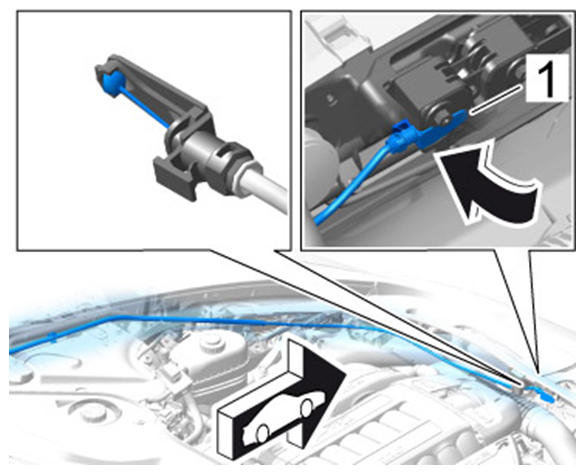

    Fig 2: Securing Cable On Lower Part Of Lid Lock
    G09810105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
