Subsequent Work

  1. Fit carpet.
  2. Install right front seat. → INSTALLING FRONT SEAT
  3. Install rear seat at the right. → INSTALLING REAR SEAT
  4. Lift up the fuel tank and fit restraining straps at the left and right. → INSTALLING FUEL TANK

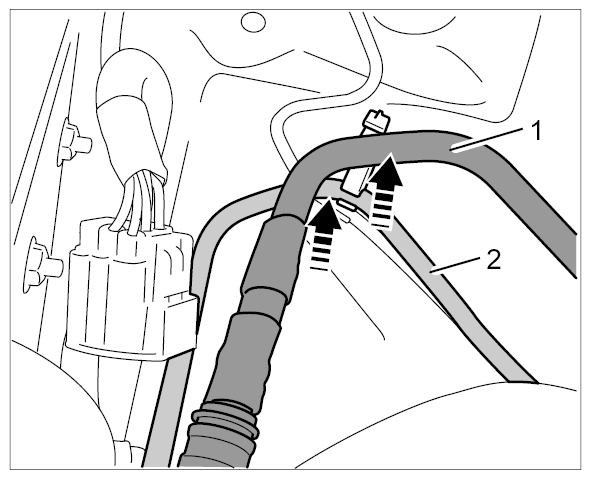

  5. Clip in fuel line -1-  and fuel vent line -2-  on the underbody at the right of the fuel tank -arrow-  .
    Fig 1: Clipping Fuel Line
    G09814111Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Install control unit for fuel pump. → INSTALLING CONTROL UNIT FOR FUEL PUMP
  7. Fill the fuel tank. → FILLING WITH FUEL (FILLING FUEL TANK)
  8. Connect the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
