Removing Hose For Windscreen Washer System

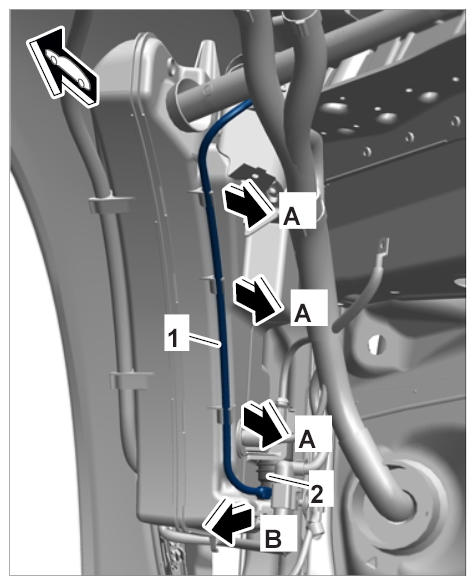

- Detach hose under the wing.
- 1.1. Pull hose -1-
off the pump -2-
(-B-
).
- 1.2. Unclip hose from the reservoir -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

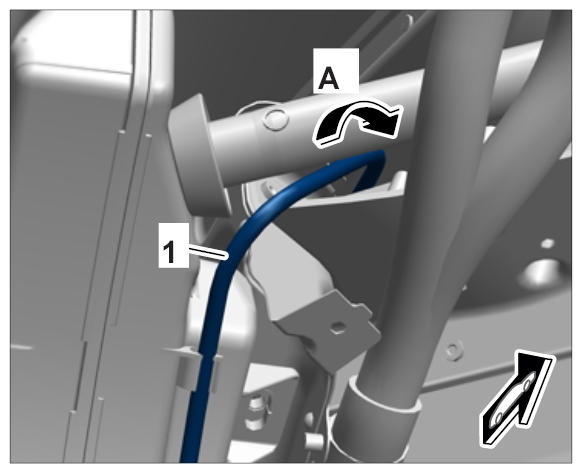

- Press hose -1-
between the wing and plenum panel upwards -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

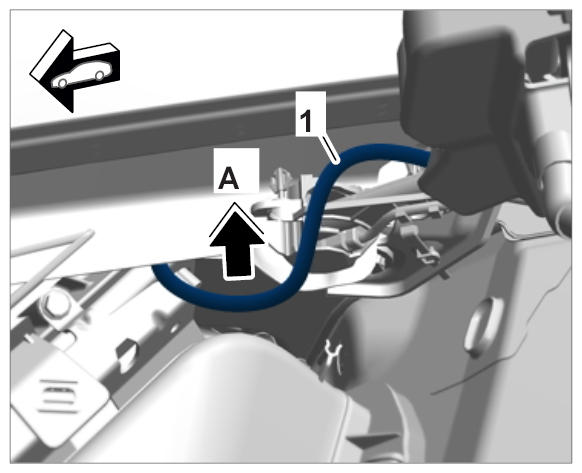

- Pull hose -1-
up out of the engine compartment -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

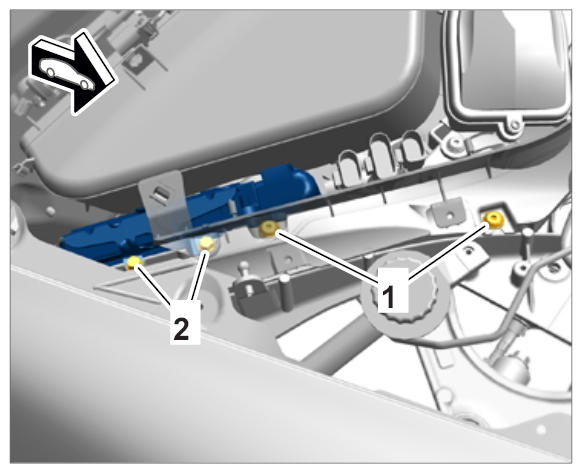

- Detach engine control unit.
- 4.1. Unscrew and remove both fastening screws -1-
on the cowl panel.
- 4.2. Unscrew and remove both fastening screws -2-
on the engine control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

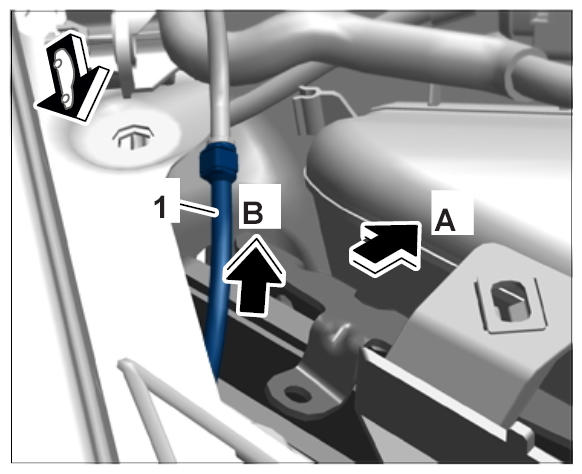

- Press engine control unit to the rear -A-
.
- Pull out the hose -1-
(-B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

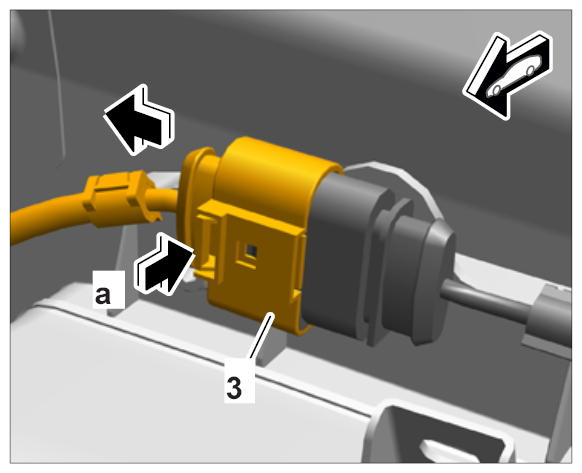

- Release and pull out electric plug connection -3-
(-a-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

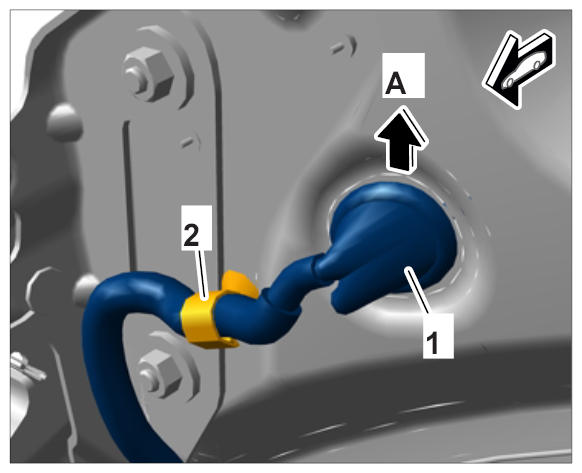

- Remove rubber sleeve -1-
from the opening -A-
.
- Open the clip -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

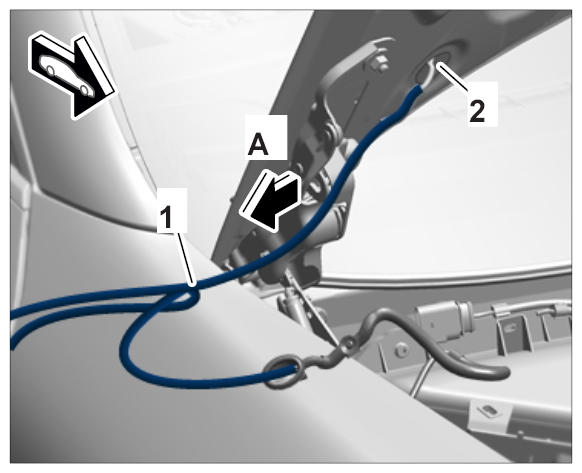

- Pull hose assembly -1-
out of the opening -2-
in the lid -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
