Removing Loudspeaker Amplifier

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Switch off ignition and remove remote control.
2. Screw off the three fastening nuts -2-  on the loudspeaker amplifier and remove the loudspeaker amplifier.

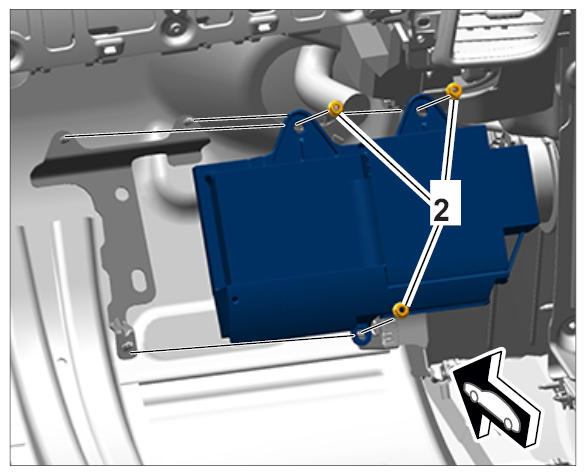

   Fig 1: Removing Loudspeaker Amplifier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release the connector -3-  (-a-  ) and pull it off.

   Information

   The number of plug connections can vary, depending on equipment.

4. Release the electric plug connections -4-  (-b-  ), slide the locking mechanism to the side -A-  and pull off the connectors -B-  .

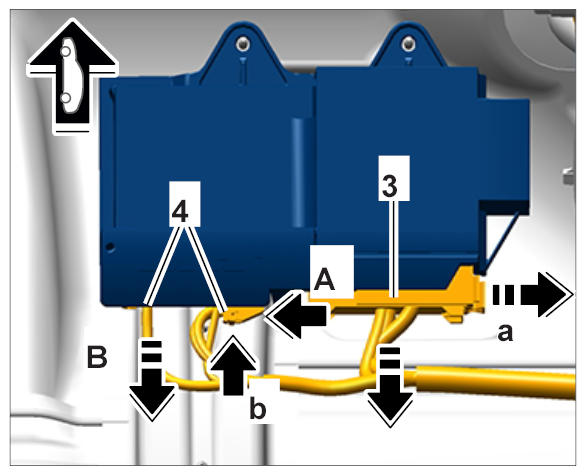

Fig 2: Releasing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
