Removing Front Belt Lock

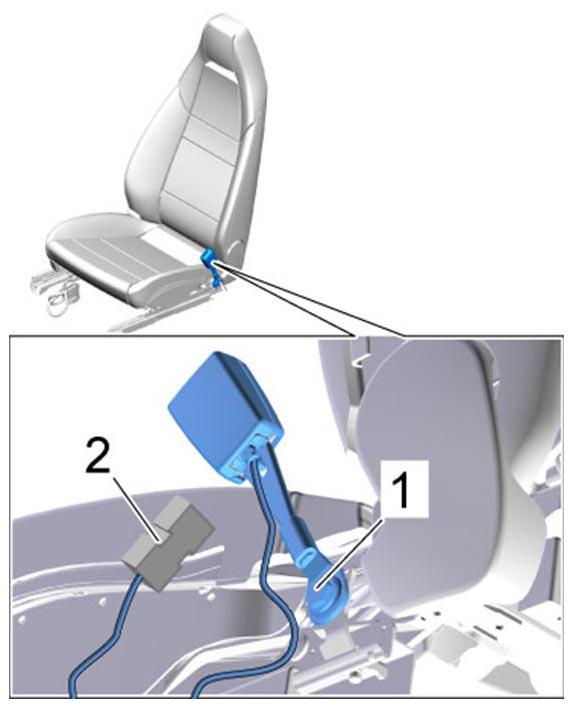

- Remove wire harness for belt lock.

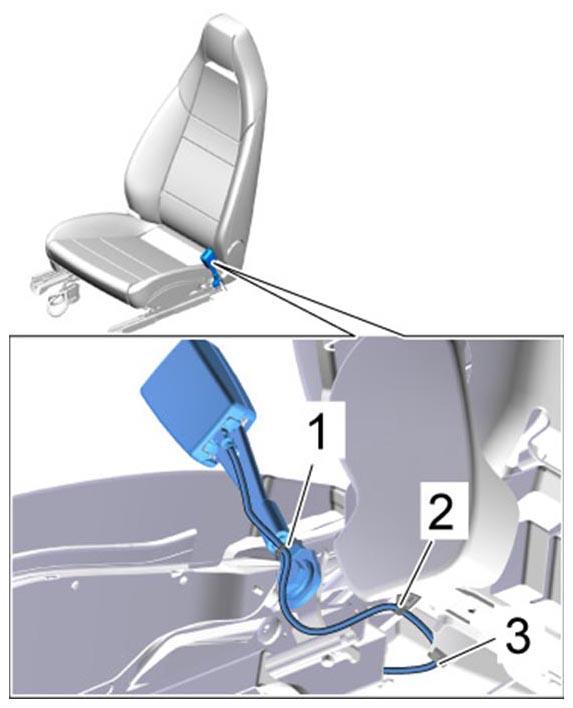

- 1.1. Remove tie-wraps -1, 2 and 3-
on wire harness for front belt lock.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.2. Remove all relevant tie-wraps and holders for the belt lock wire harness as far as the connector socket.

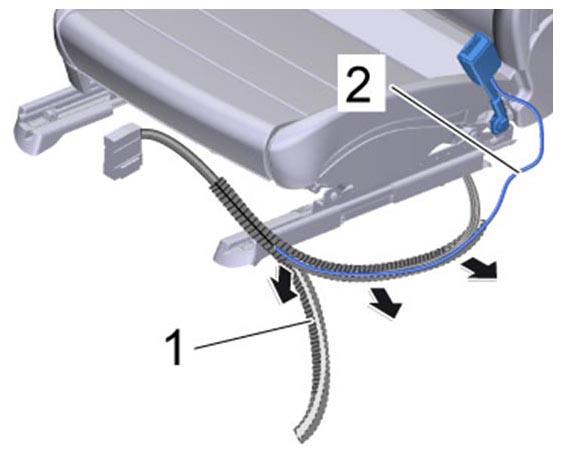

- 1.3. Remove the split cable conduit -1-
and expose the belt lock wire harness -2-
as far as the cable sheathing.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

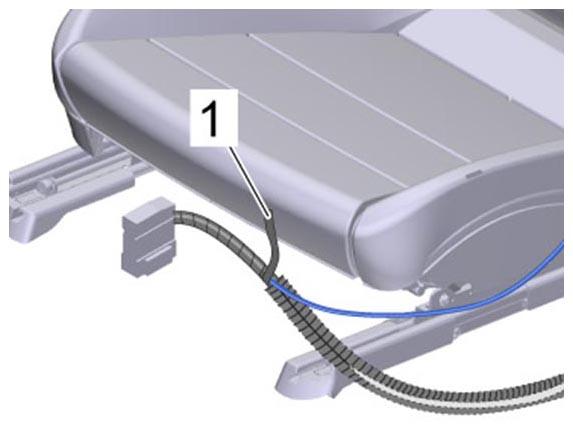

- 1.4. Remove cable sheathing -1-
by unwrapping it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

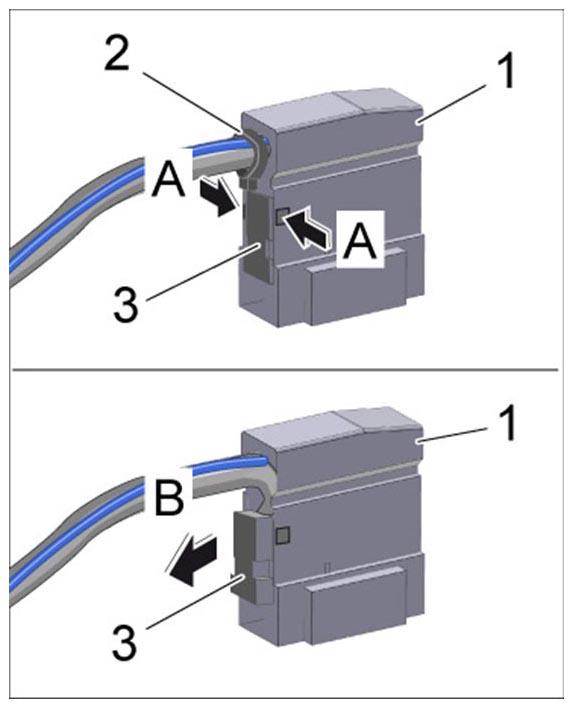

- 1.5. Remove tie-wrap -2-
on the connector socket -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.6. Release single connectors -3-
(-A-
) and remove them from the connector socket -1-
(-B-
).
- Remove belt lock.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 2.1. Unscrew and remove fastening screw -1-
.
- 2.2. Pull wire harness -2-
out through the seat frame.
- 2.3. Remove belt lock and wire harness.
