Installing Plenum Panel Cover

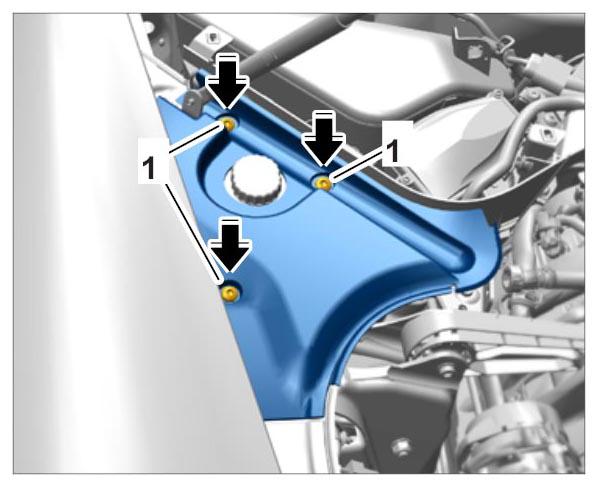

- Position plenum panel cover.
- Screw in and tighten the three fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

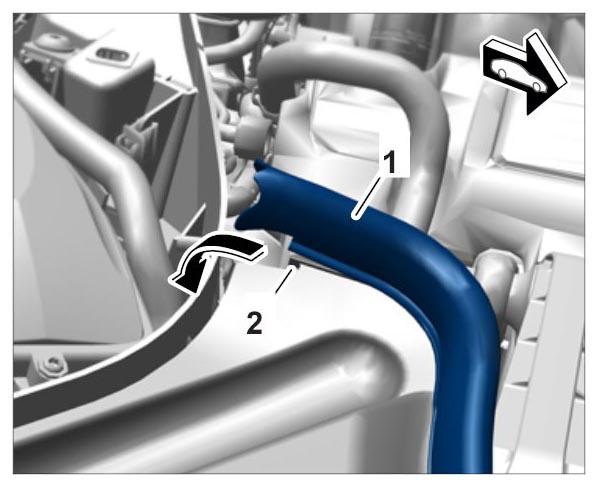

- Pull the end -1-
of the front profile seal over the retaining lug -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 3.1. Hook the end -1-
of the front profile seal into the retaining lug -2-
and press it on.

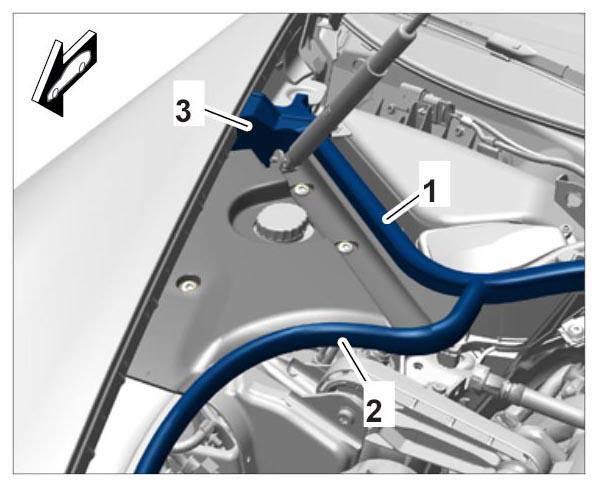

- Fit the rear profile seal on the lid -1-
and press on firmly from the inside out.
- Press the foam corner piece -3-
onto the profile seal.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
