Oil Circuit For Turbocharger, Cylinders 1-3

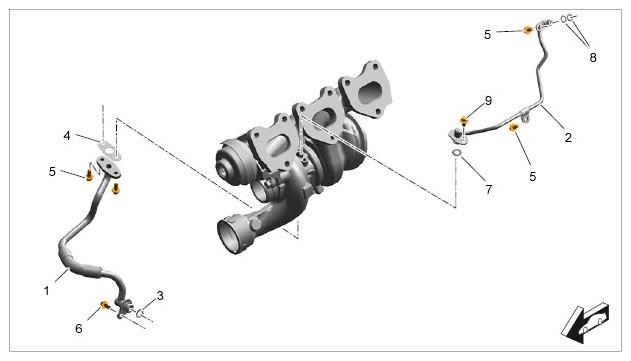

Fig 1: Identifying Oil Circuit For Turbocharger (Cylinders 1-3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Oil extraction line
2. Oil feed line
3. O-ring, 12 x 3/replace
4. Seal
5. Screw, M6 x 12 → Tightening torque: 10 Nm (7.5 ftlb.)
6. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
7. O-ring, 10 x 3/replace
8. O-ring, 8 x 2.5/replace
9. Screw, M6 x 10 → Tightening torque: 10 Nm (7.5 ftlb.)
