Control Lines For Boost Pressure And Ambient Air

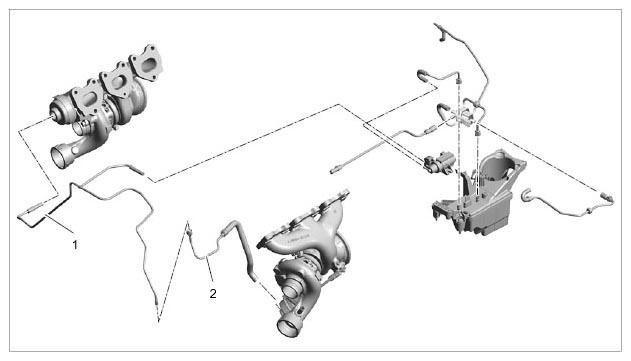

Fig 1: Identifying Control Lines For Boost Pressure And Ambient Air

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Control line for cylinder 1-3
2. Control line for cylinder 4-6
