Securing Compressor

Information

For the leak test, the seals on the sealing elements should seal the openings in the compressor housing.

1. Compressor removed. → 211419 REMOVING AND INSTALLING COMPRESSOR
2. Insert gearbox support and sealing elements into the engine bracket.
3. Secure the compressor on the gearbox support as shown. For fitting screws -1-  , use the bores "1", "4", "9" and "13"  .

   On the front right, use screw -2-  to screw the support -T40206/2-  directly to the compressor housing.

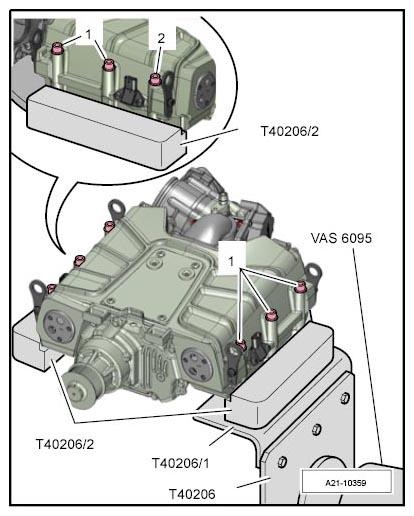

   Fig 1: Securing Compressor To Gearbox Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installation position of supports:

   The seals on the supports seal the openings in the compressor housing.

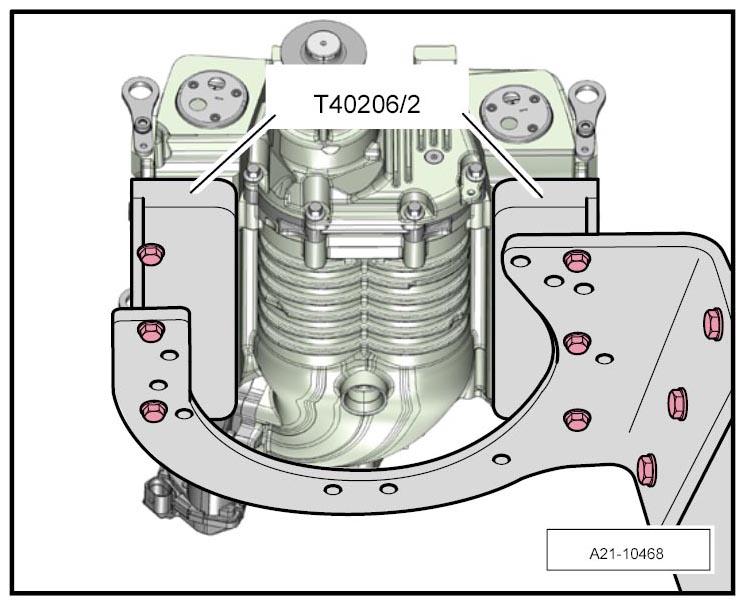

   Fig 2: Identifying Seals Supports Installation Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
