60 - Sliding Roof, Tilting Roof -- PANAMERA (970)
>>
WM 604655 Replacing Seal For Sliding Roof (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Overlength seal
Length
2 mm
+1 mm
Rear cut
Length
approx. 1 mm

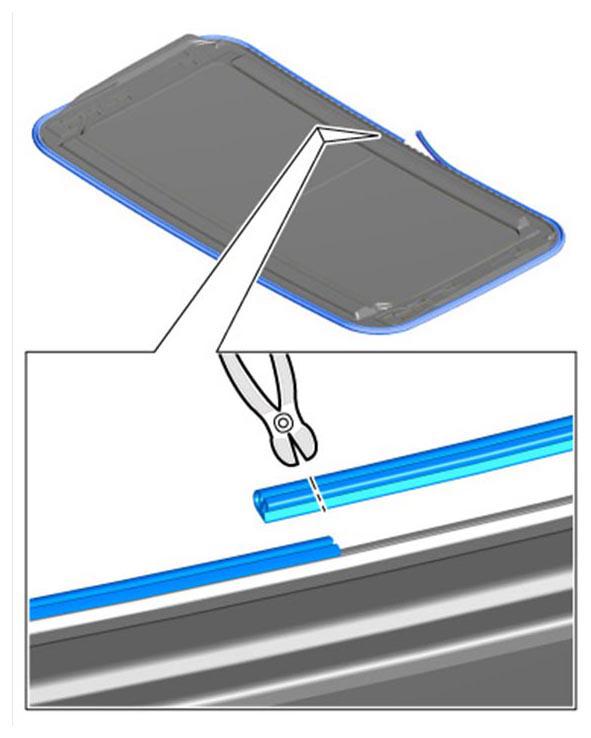

Trimming the seal
