Technical Values: Notes
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

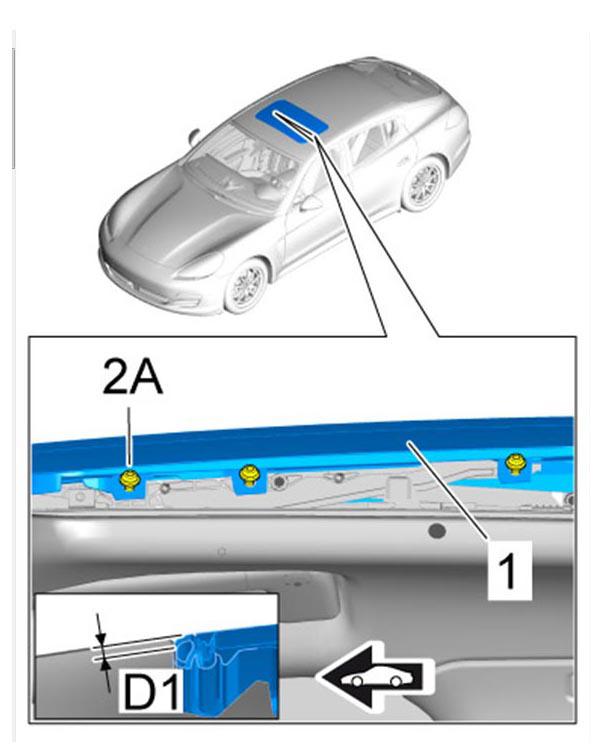

| Fastening screw securing sliding roof panel to sliding roof trim surround | Item 2A | Tightening torque | 4.5 Nm | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Adjusting height at the front |
|||||

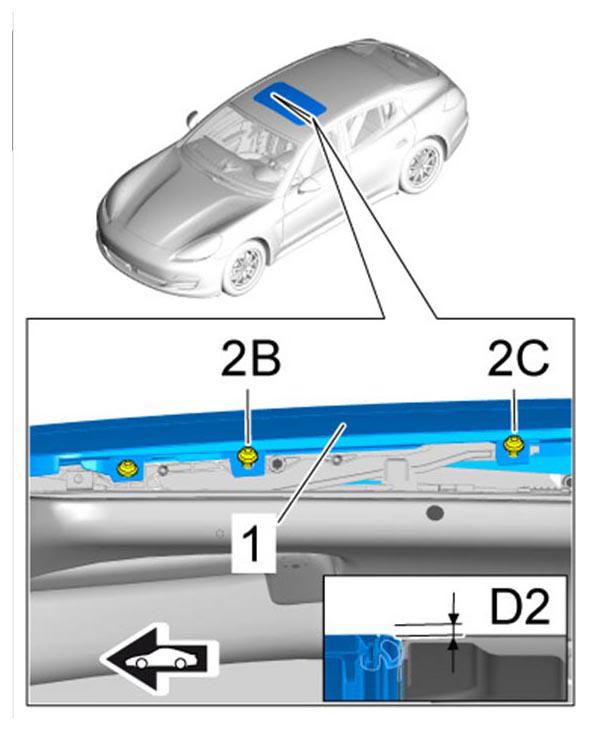

| Fastening screw securing sliding roof panel to sliding roof trim surround | Item 2B, 2C | Tightening torque | 4.5 Nm | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Adjusting height at the rear |
|||||
