Installing Sliding-Roof Panel

Move sliding roof mechanism to end position "roof closed".
Fit sliding-roof panel -1- .

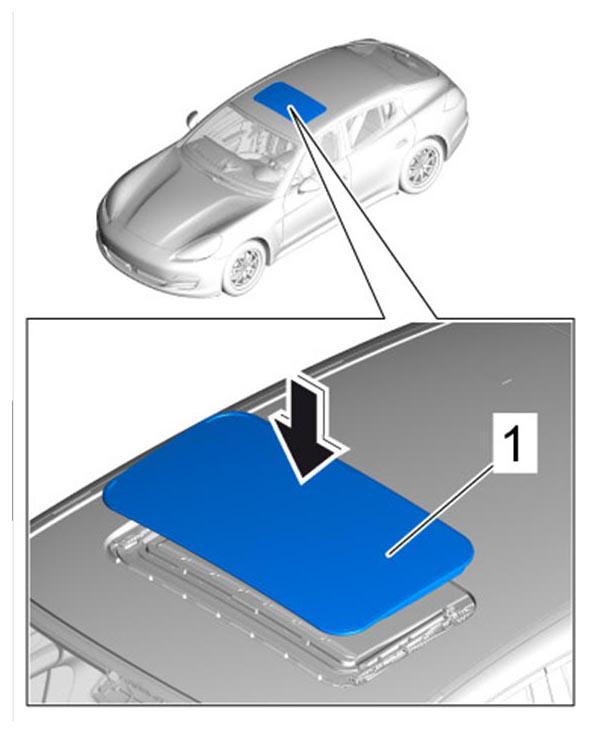

Fig 1: Inserting Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the sliding-roof panel.

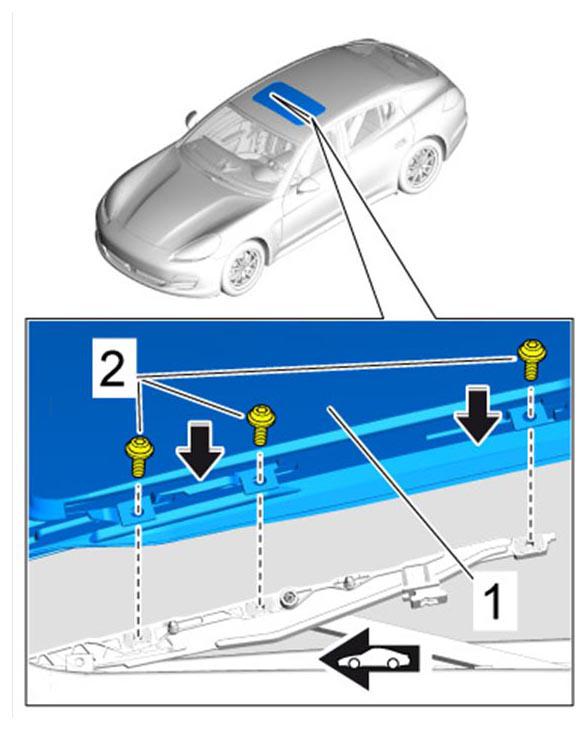

Fig 2: Securing Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Screw in and tighten fastening screws -2- so that the sliding-roof panel -1- can still be moved easily.
Adjust sliding-roof panel. → Adjusting Sliding-Roof Panel
Move sliding-roof panel -1- to the final raised position.

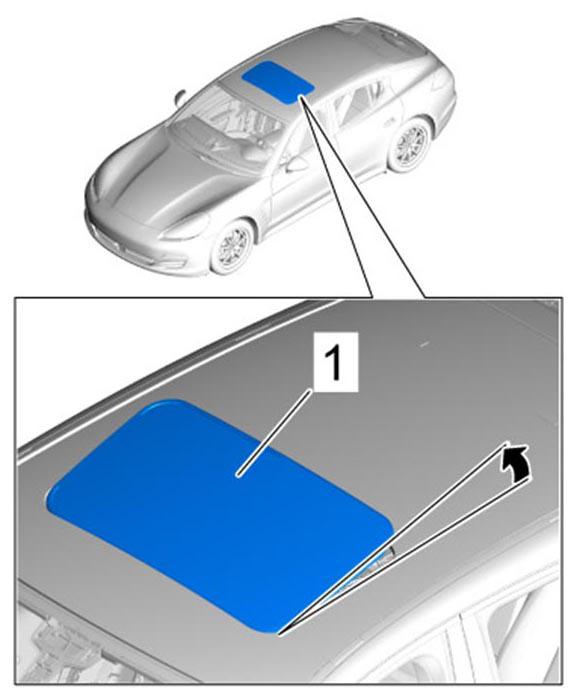

Fig 3: Opening Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hook in bellows.
1. 6.1. Push bellows -1- at the bottom in the rear area backwards into the guide.

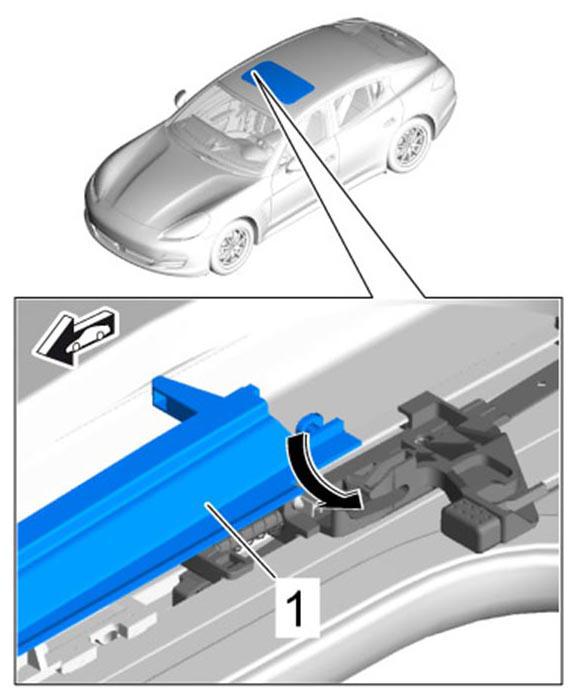

  Fig 4: Guiding In Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Hook bellows -1- at the top in the rear area forwards into the holding lug -2- .

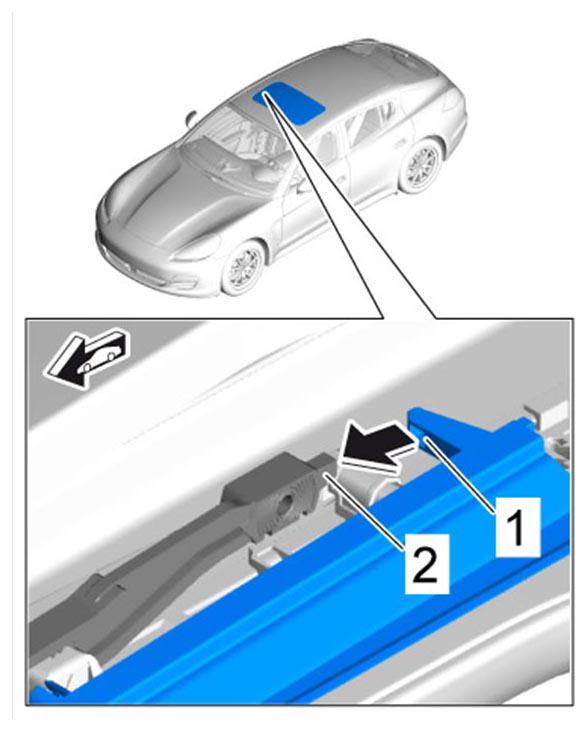

  Fig 5: Hooking In Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in bellows.
1. 7.1. Clip in bellows -1- at the top and bottom in the front area.

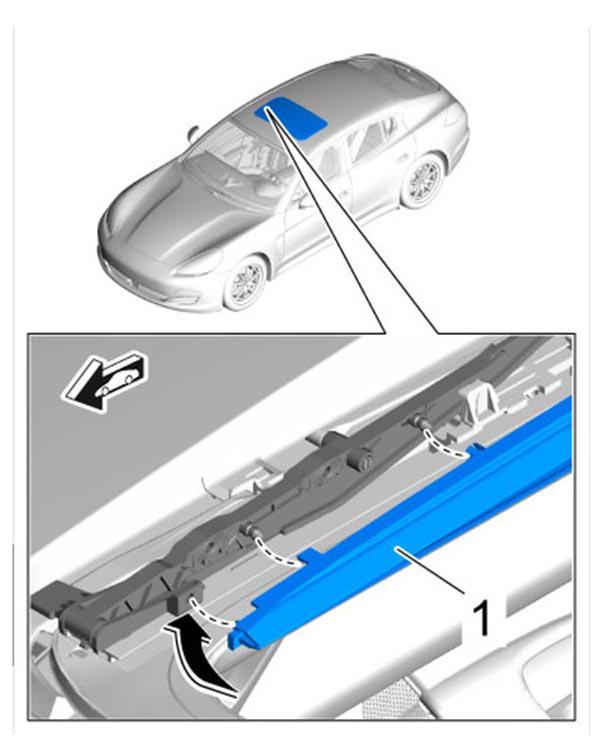

  Fig 6: Clipping In Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform function test.
1. 8.1. Check sliding roof functions by fully opening and closing or raising it.
