Removing Air Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

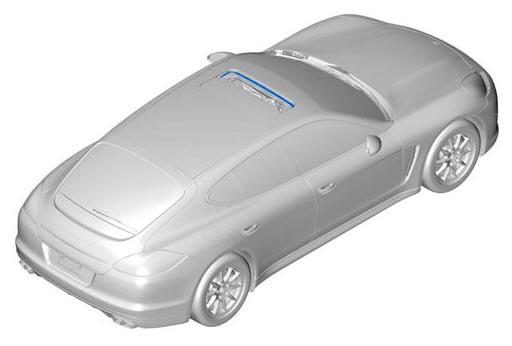

- Open sliding roof fully.
- Remove air deflector.

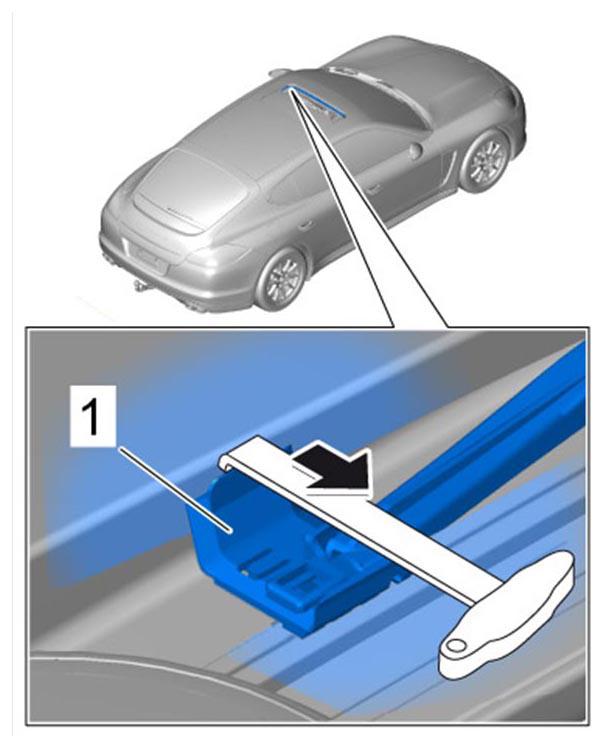

- 2.1. Unclip air deflector -1-
at both sides as far as the center of the vehicle using a hook 3370
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

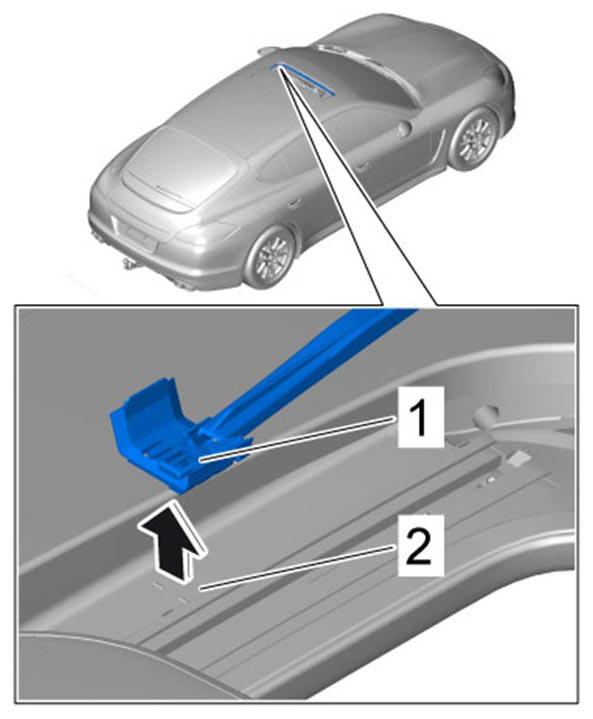

- 2.2. Lift up the air deflector -1-
and remove it from the sliding-roof frame -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

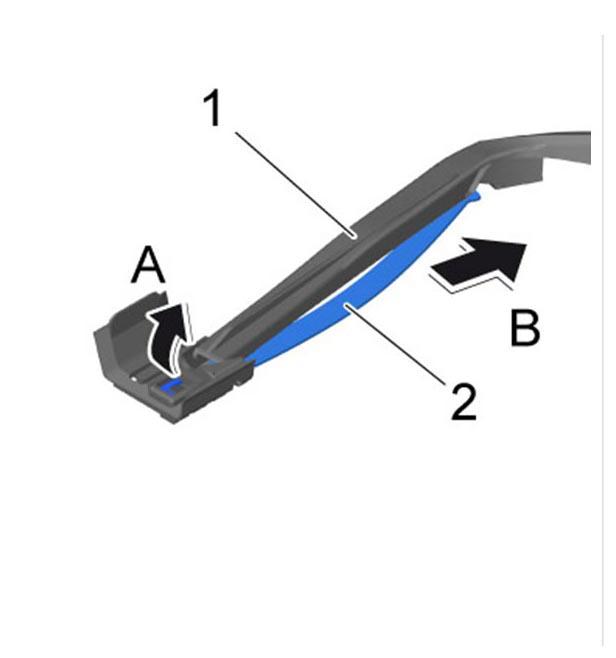

- Lift up the spring -2-
at the back -A-
and take it out of the air deflector -1-
(-B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
