Installing Cover For Front Seat

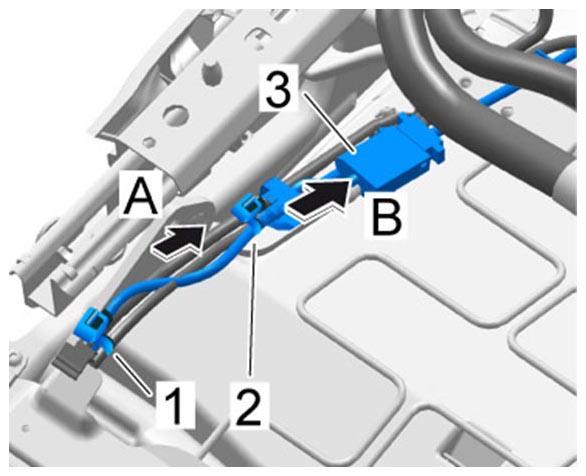

Fig 1: Fitting Front Seat Cover Lines, Connectors And Tie-Wraps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Pull connectors -1-  through in a downward direction -A-  .
2. 2.2. Plug in connectors -1-  and make sure that the locking mechanism engages correctly.
3. 2.3. Fit the two tie-wraps -1 and 2-  on the underside of the seat.

Information

• Replace any damaged cushion clips/plastic and engage them in the integrated metal strut for the cover.
• Fasten cover to the padding, starting from the inside.
• Sequence - rear (cushion clips/metal), front (for seats with air conditioning: cushion clips/plastic)

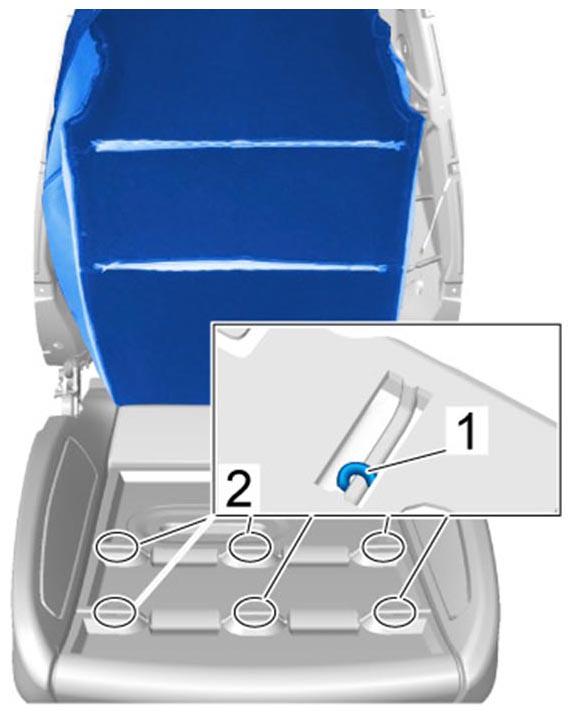

1. 3.1. Fit cushion clips -1-  using cushion clip pliers.

   Cushion clip pliers Nr.130

   Fig 2: Fitting Cushion Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. For seats with air conditioning:

   Engage cushion clips -1-  on the cushion carrier -A-  .

   Fig 3: Engaging Cushion Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

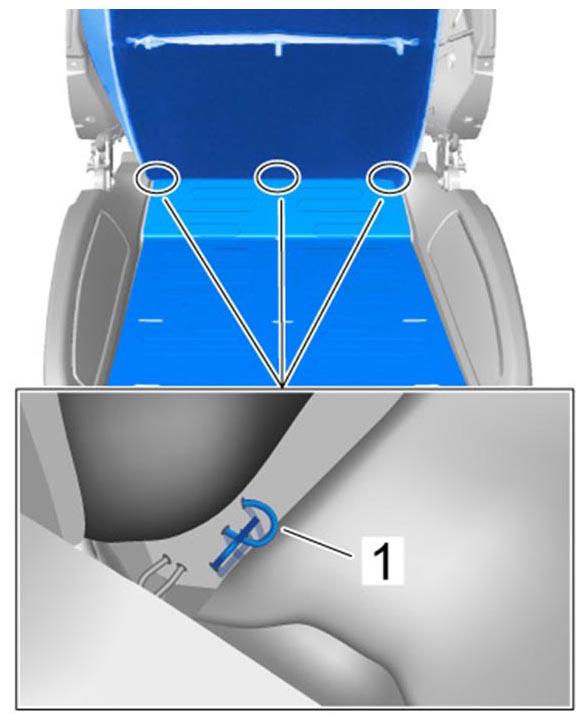

   1. 3.2.1. Engage cushion clips -1-  at the sides.
      Fig 4: Engaging Cushion Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

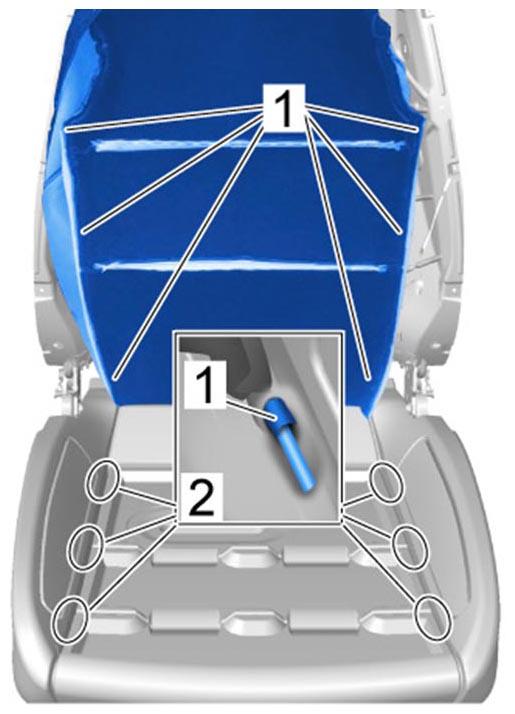

3. 3.3. For seats without air conditioning:

   Fit cushion clips -1-  using cushion clip pliers.

   Cushion clip pliers Nr.130

   Fig 5: Attaching Cushion Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.3.1. Engage cushion clips -1-  at the sides.
      Fig 6: Engaging Cushion Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

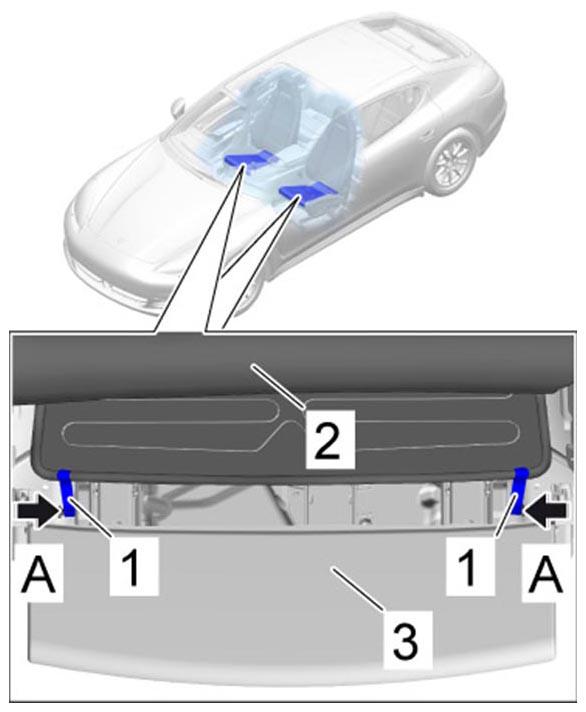

1. 4.1. Engage the two restraining straps -1-  at the sides by pulling them inwards -A-  and pull the cover -2-  over the cushion -3-  .
   Fig 7: Engaging Restraining Straps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

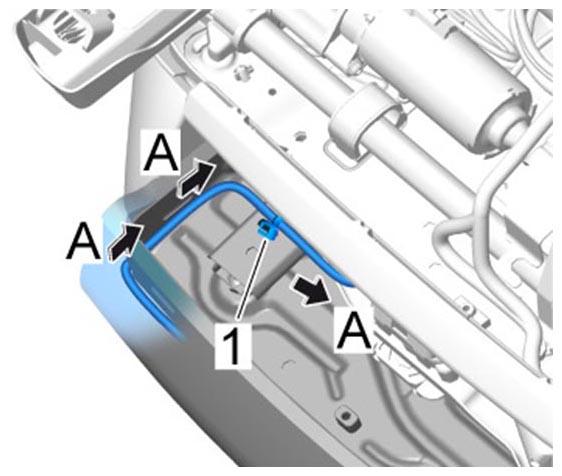

2. 4.2. Route the seat heating line for the seat-surface extension towards the rear -A-  and fit tie-wraps -1-  .
   Fig 8: Routing Seat Heating Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Fit all tie-wraps used to secure the seat heating line for the seat-surface extension.

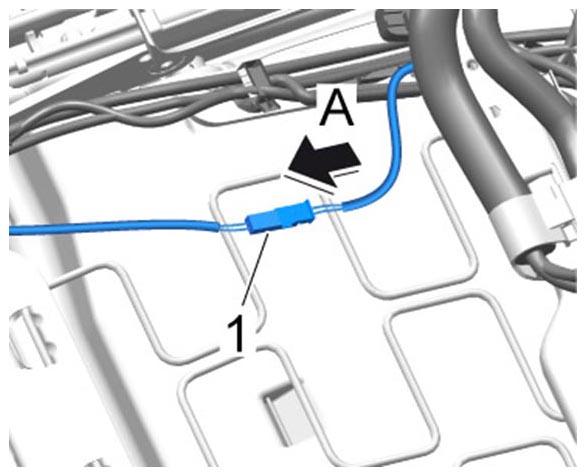

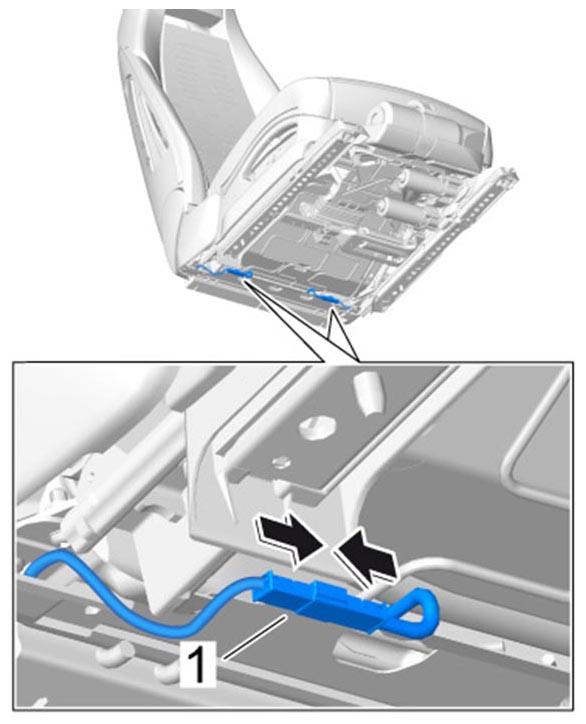

4. 4.4. Plug in connector for seat heating -1-  for seat-surface extension under the seat -A-  .
   Fig 9: Plugging Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

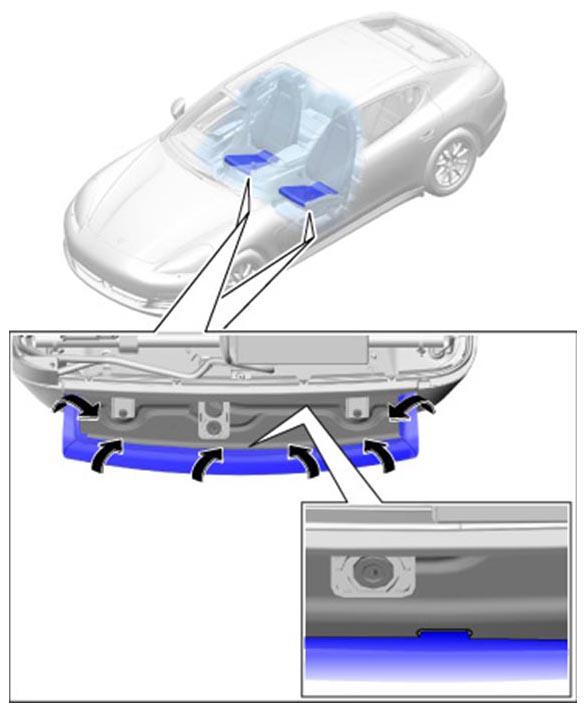

5. 4.5. Pull cover for seat extension over the seat cushion and engage it all the way around -arrows-  .
   Fig 10: Engaging Cover For Seat-Surface Extension

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
