Removing Control Unit For Memory Seat Adjustment

→ Remove the ignition key and switch off load before disconnecting or removing load.

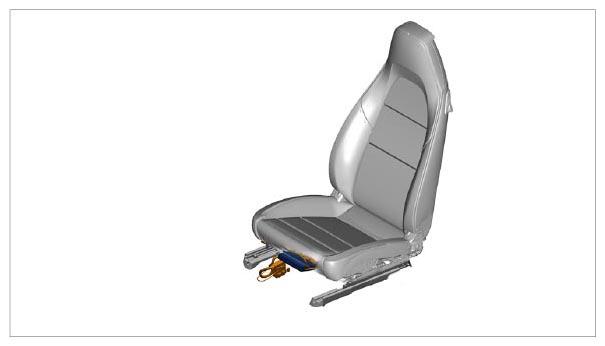

Fig 1: Identifying Installation Position Of Control Unit For Memory Seat Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Move front seat back and up as far as possible.
2. Unscrew and remove the two fastening screws -1-  for the control unit and cut the tie-wrap.

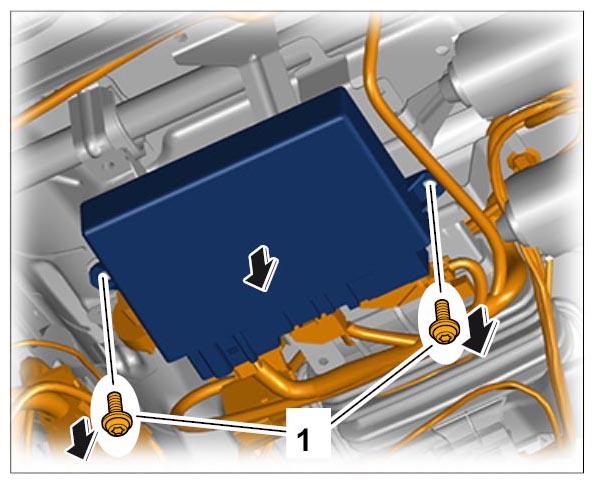

   Fig 2: Removing Control Unit Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull the control unit forward slightly.
4. Release and disconnect electric plug connections -3, 4 and 5-  .

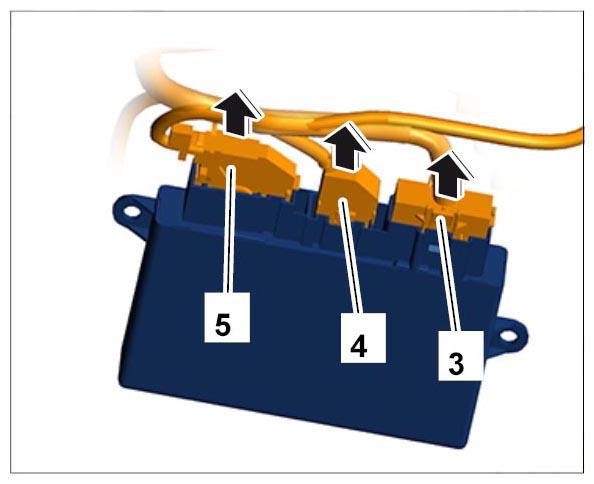

   Fig 3: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove the control unit.
