Removing Motor For Seat Adjustment

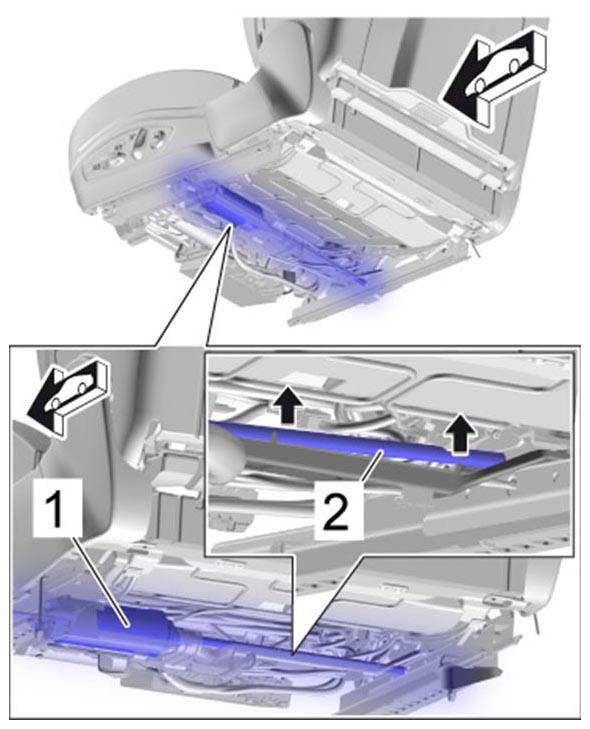

- Unclip the sleeve for the long drive shaft -2-
for the motor for seat adjustment -1-
at the holder.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

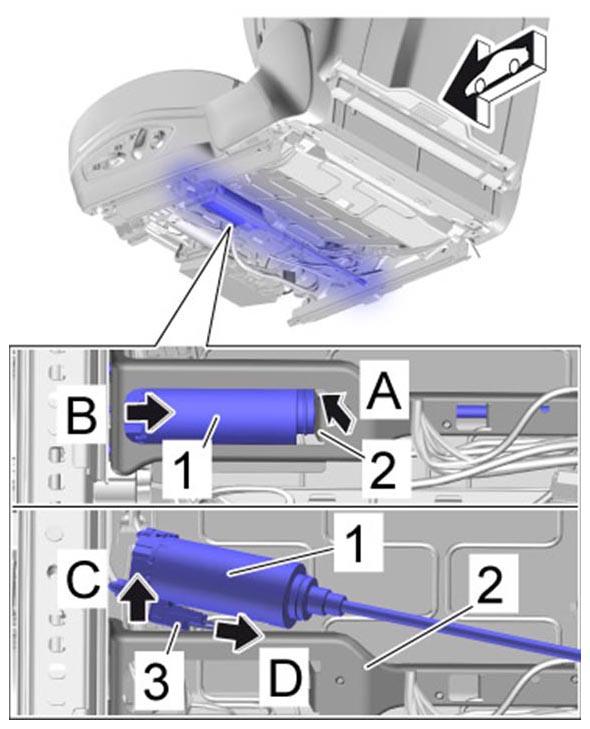

- Press motor for seat adjustment -1-
out of the holder -2-
at the boot -arrow A-
.
- Pull motor for seat adjustment -1-
off the short drive shaft -arrow B-
.
- Pull motor for seat adjustment -1-
forward under the holder -2-
(-arrow C-
) and pull off the connector -3-
(-arrow D-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

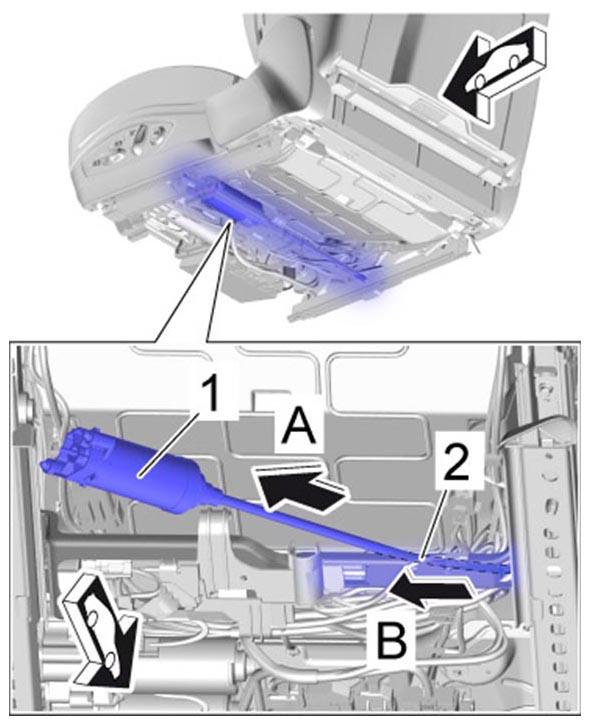

- Pull motor for seat adjustment -1-
with the sleeve off the long drive shaft -2-
(-arrow A-
).
- Pull the long drive shaft -2-
out of the transmission mount -arrow B-
and check it for damage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

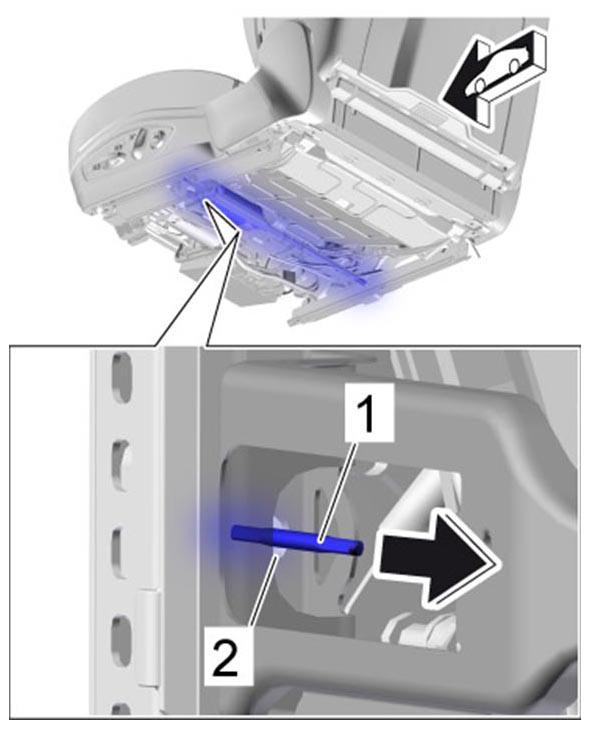

- Pull the short drive shaft -1-
out of the transmission mount -2-
and check it for damage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
