Removing Side Cushion

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

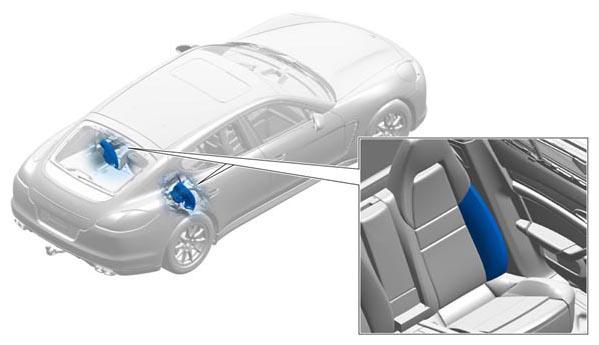

Fig 1: Identifying Installation Position Of Side Cushion

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unclip cover for backrest adjustment mechanism.

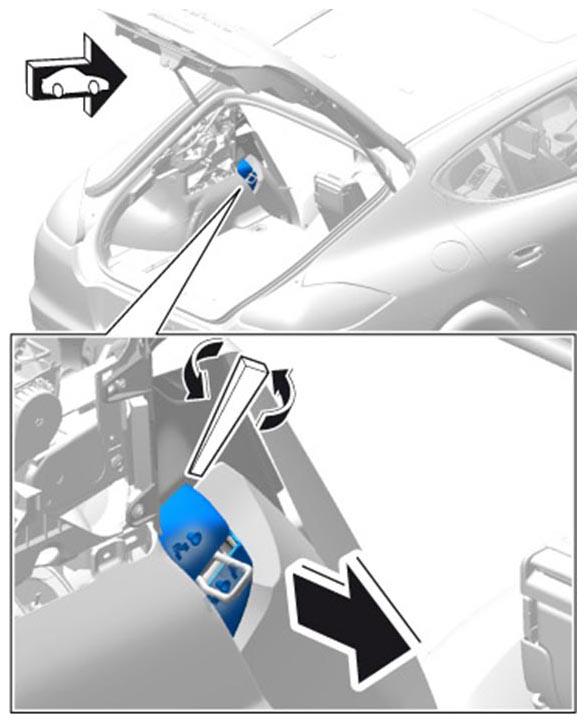

   Fig 2: Unclipping Cover For Backrest Adjustment

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Move backrest into center position.
3. Unscrew fastening screw -1-  for backrest section.

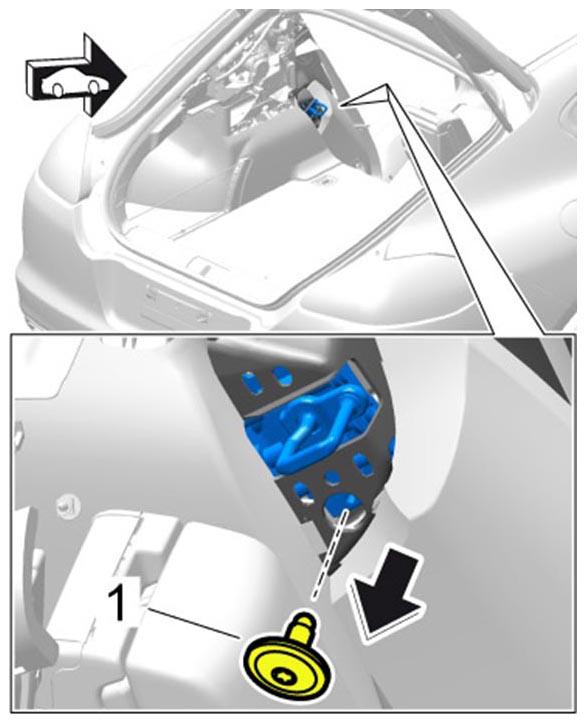

   Fig 3: Detaching Backrest Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Swivel backrest section forward -arrow A-  and unclip it in an upward direction -arrow B-  .

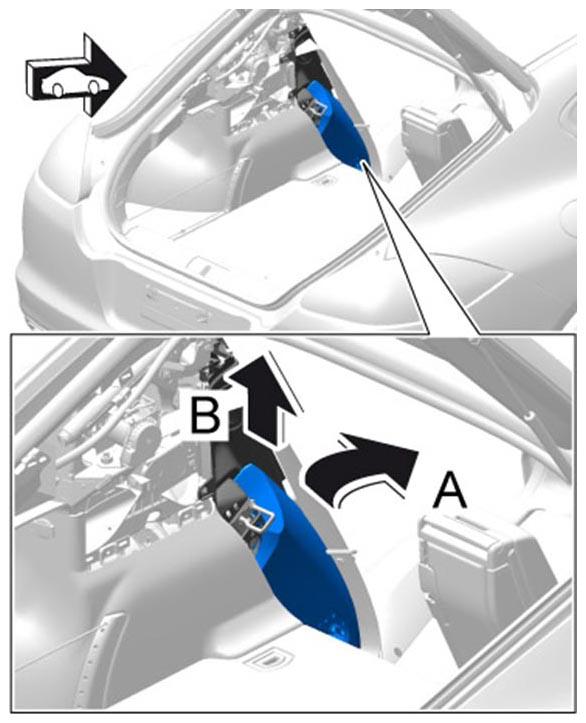

   Fig 4: Detaching Backrest Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Disconnect plug connection.

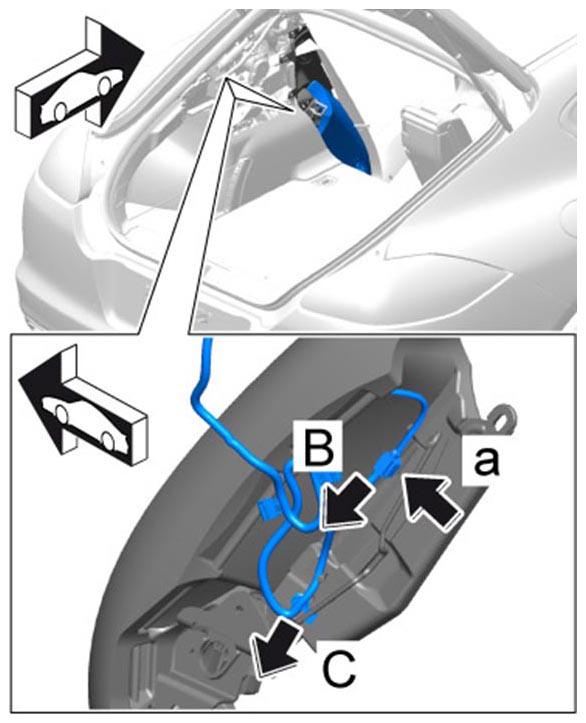

   Fig 5: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unclip electric wire harness at the C-pillar trim panel.
7. Loosen fixing clip -C-  .
8. Release plug connections -a-  and disconnect them -B-  .
