Installing Rear Seat

  1. Position the rear seat and raise it slightly.
  2. Connect electric plug connection -arrow C-  until it engages securely.
  3. Position the rear seat -arrow D-  and clip the locking lugs -1-  for the rear seat into the clips -2-  until they engage securely.

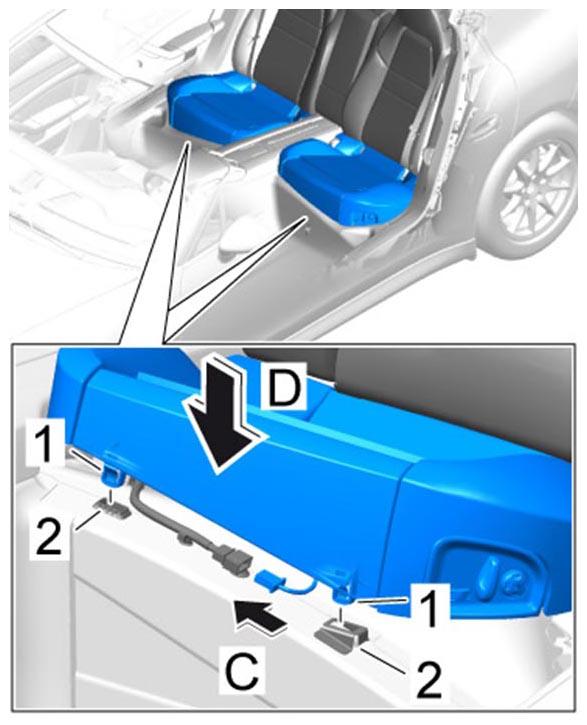

    Fig 1: Connecting Electric Plug Connection
    G09812651Courtesy of PORSCHE CARS NORTH AMERICA, INC.
