Removing Lumbar Support

  1. Lift up lumbar support -arrow A-  .
  2. Loosen fastening clip -1-  from the retaining pin -2-  (-arrow B-  ).
  3. Remove lumbar support from the base carrier -3-  .

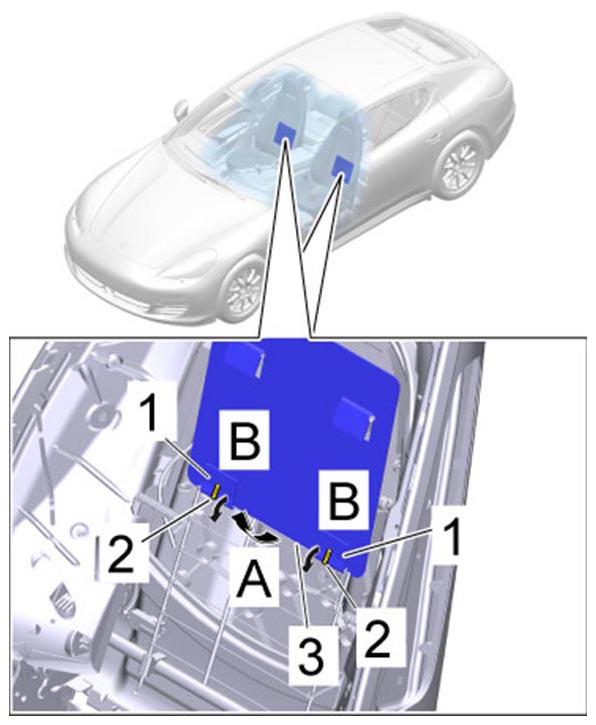

    4. Fig 1: Removing Lumbar Support
    G09812598Courtesy of PORSCHE CARS NORTH AMERICA, INC.
