Installing Lumbar Support

  1. Position lumbar support on the base carrier -3-  .
  2. Place fastening clip -1-  around the base carrier -3-  .
  3. Secure fastening clip -1-  on the retaining pin -2-  (-arrow A-  ).
  4. Move lumbar support to its original position -arrow B-  .

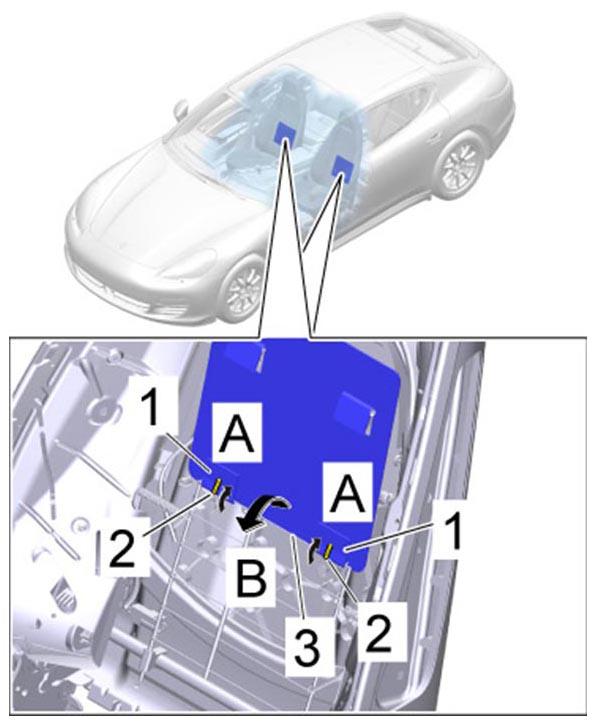

    5. Fig 1: Installing Lumbar Support
    G09812599Courtesy of PORSCHE CARS NORTH AMERICA, INC.
