Removing Air Cushion For Backrest
- Lift side cushion and cover forward from the backrest frame until the air cushions for the backrest are visible.
- Remove pressure line.

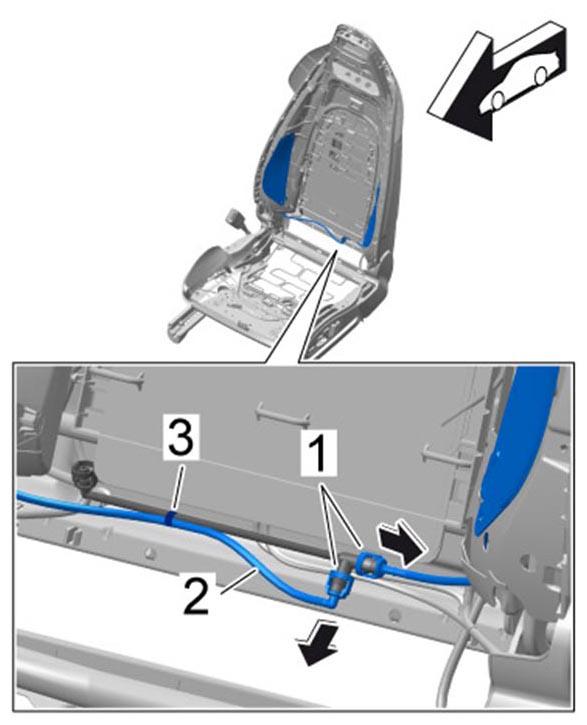

- 2.1. Disconnect pneumatic plug connection -1-
(red and yellow pressure line) from the distributing piece -arrow-
.
- 2.2. Cut tie-wrap -3-
.
- 2.3. Guide red and yellow pressure lines -2-
through the backrest frame to the air cushion.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove air cushion.

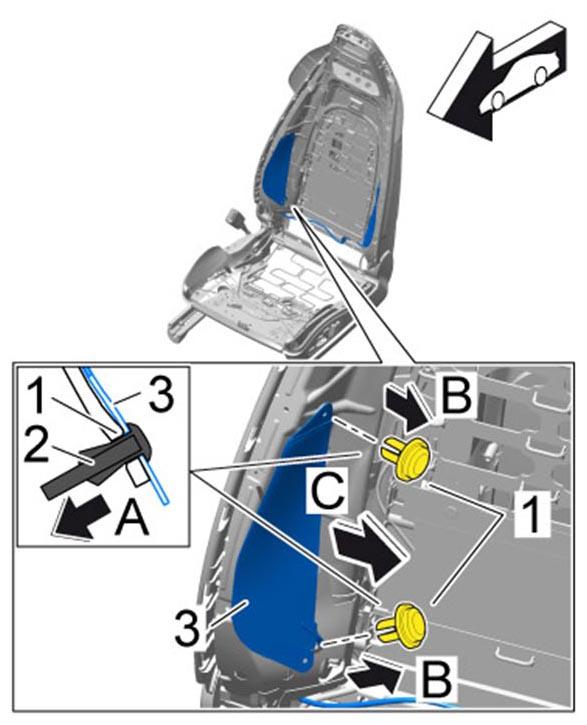

- 3.1. Press in pins -2-
on the expanding clips -1-
(-arrow A-
).
- 3.2. Remove relieved expanding clips -1-
(-arrow B-
).
- 3.3. Remove air cushion for backrest -3-
and pressure line from the backrest frame -arrow C-
.
