Removing Air Cushion For Seat

  1. Remove pressure line.
    1. 1.1. Disconnect pneumatic plug connection -2-  (-arrow-  ).
    2. 1.2. Unclip pressure line -3-  from the holder -1-  .

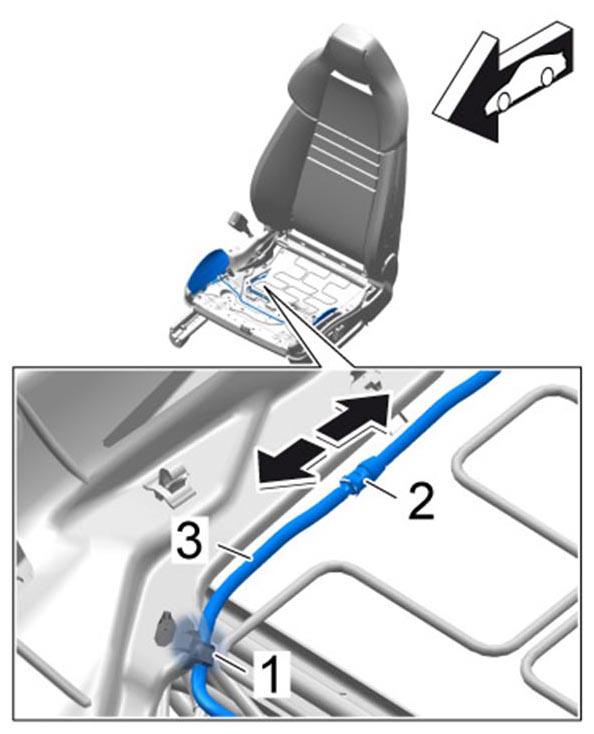

      3. Fig 1: Disconnecting Pressure Line
      G09812519Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull pressure line -1-  out of the opening in the seat frame -2-  (-arrow-  ).

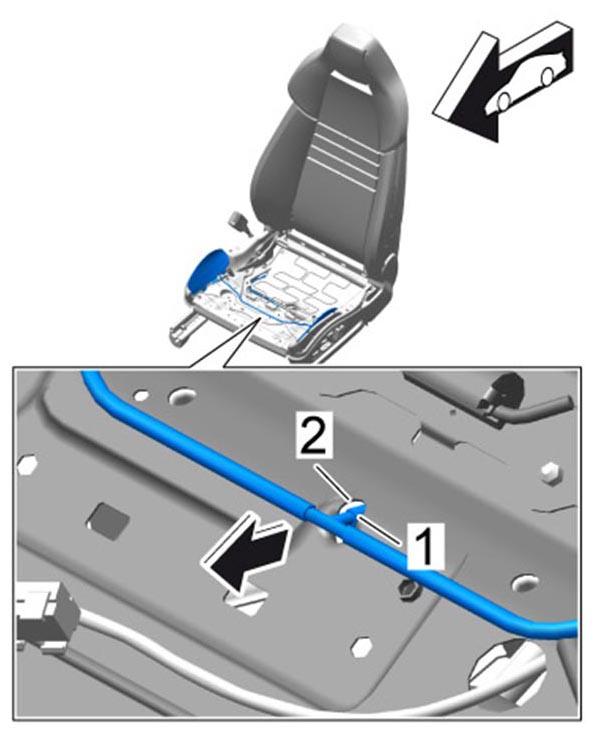

    Fig 2: Pulling Pressure Line Out Of Seat Frame
    G09812520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Instructions for installing the air cushion are provided for one side only.
    • The air cushion must be installed on the opposite side as a mirror image of the steps described here.
  3. Remove air cushion.
    1. 3.1. Press in pins -2-  on the expanding clips -1-  (-arrow A-  ).
    2. 3.2. Remove relieved expanding clips -1-  (-arrow B-  ).
    3. 3.3. Remove air cushion for seat -3-  and pressure line -arrow C-  .

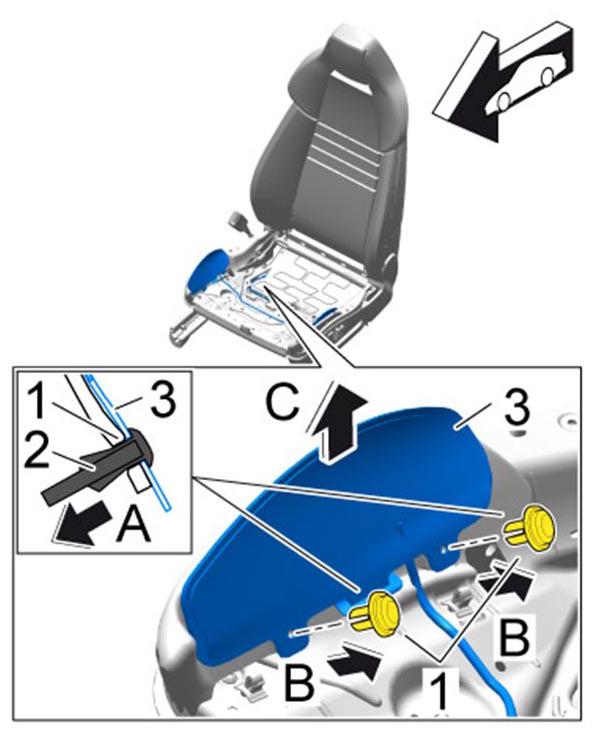

    Fig 3: Removing Air Cushion For Seat
    G09812521Courtesy of PORSCHE CARS NORTH AMERICA, INC.
