Installing Air Cushion For Seat

Information

• Instructions for installing the air cushion are provided for one side only.
• The air cushion must be installed on the opposite side as a mirror image of the steps described here.

1. Install air cushion.
   1. 1.1. Position air cushion for seat -3-  (-arrow A-  ).
   2. 1.2. Secure air cushion for seat -3-  using an expanding clip -1-  (-arrow B-  ).
   3. 1.3. Press pins -2-  into the expanding clip -1-  (-arrow C-  ).

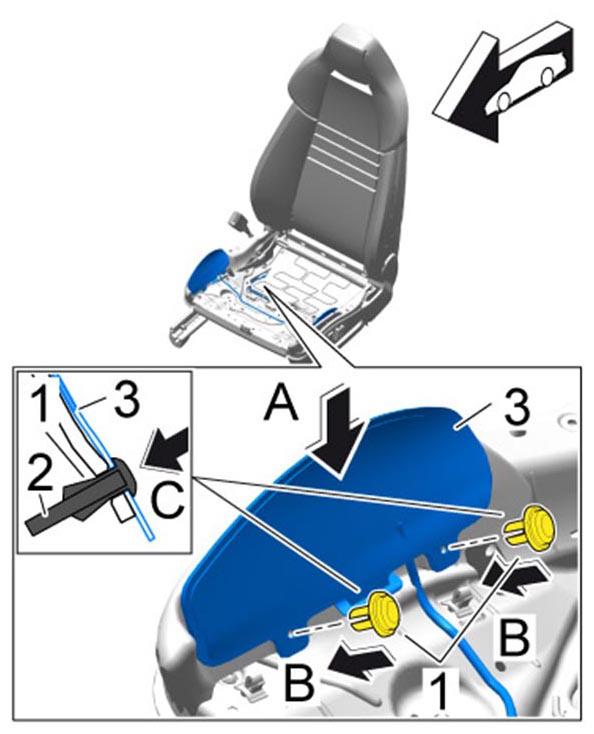

   Fig 1: Installing Air Cushion For Seat
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Guide pressure line -1-  through the opening in the seat frame -2-  (-arrow-  ) and route to the pneumatic plug connection.

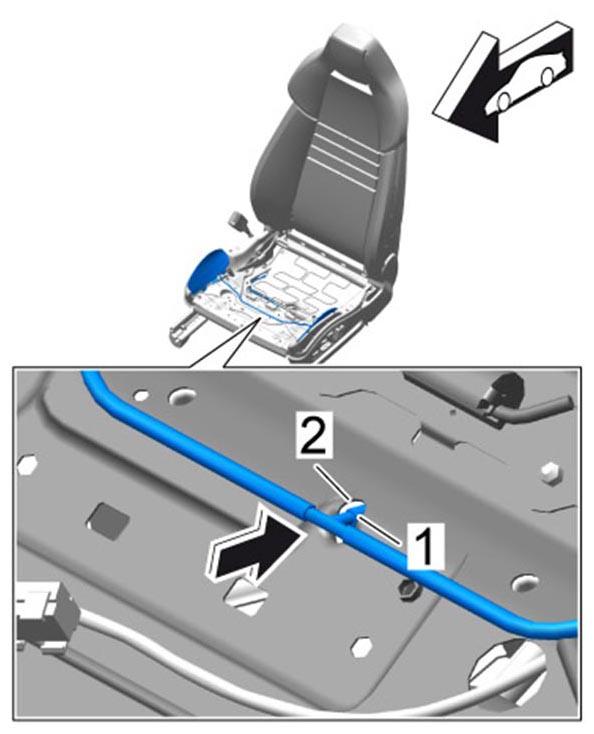

   Fig 2: Positioning Pressure Line In Seat Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install the pressure line.
   1. 3.1. Position pressure line -3-  onto the pneumatic plug connection -2-  .
   2. 3.2. Press pneumatic plug connection -2-  together until it securely engages -arrow-  .
   3. 3.3. Clip pressure line -3-  into the holder -1-  .

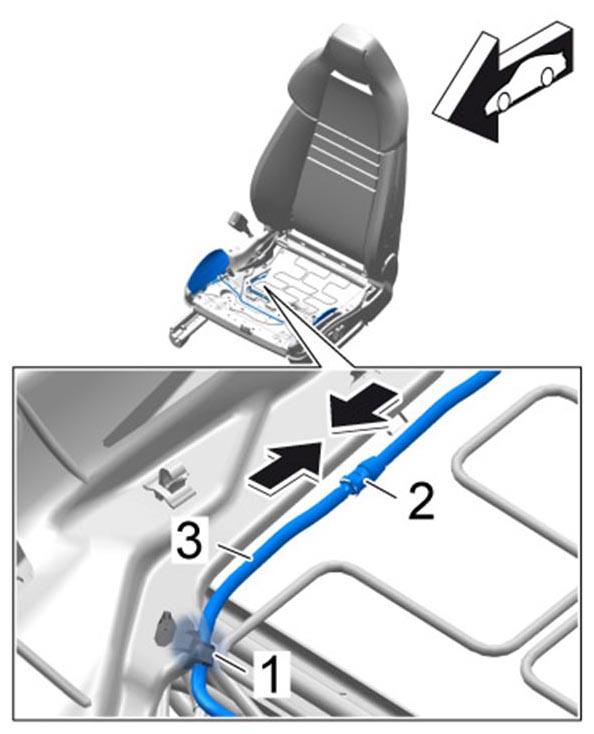

   Fig 3: Connecting Pressure Line
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
