Installing Front Seat

→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

Information

Always replace the fastening screws on the front seat after customer service and reworking. The micro-self-locking or self-tapping screws must not be treated, greased or loosened and then screwed on again.

1. Place front seat in the vehicle and tilt backwards.
2. Plug in and lock electric plug connection.

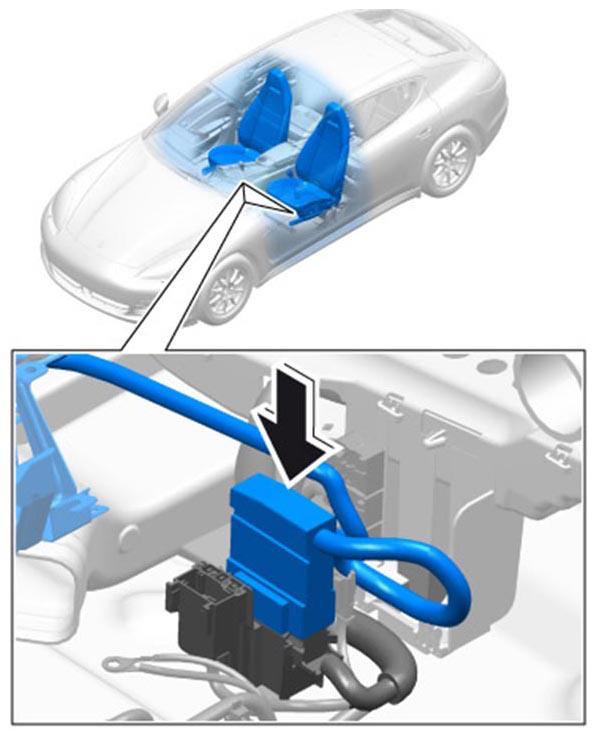

   Fig 1: Connecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Route the line under the carpet and close the cut-out in the carpet so that it looks perfect.

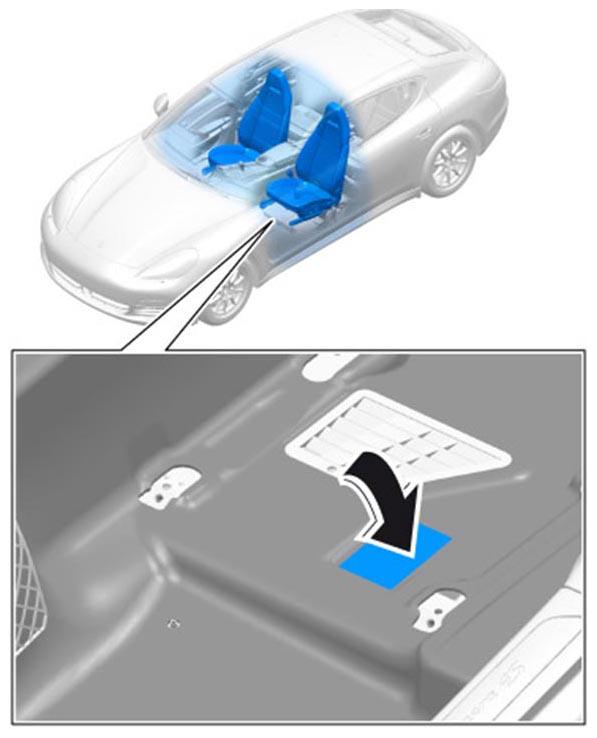

   Fig 2: Closing Cut-Out In Carpet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fold the seat forward and insert the centering pins -3-  into the cut-outs -4-  on the body.

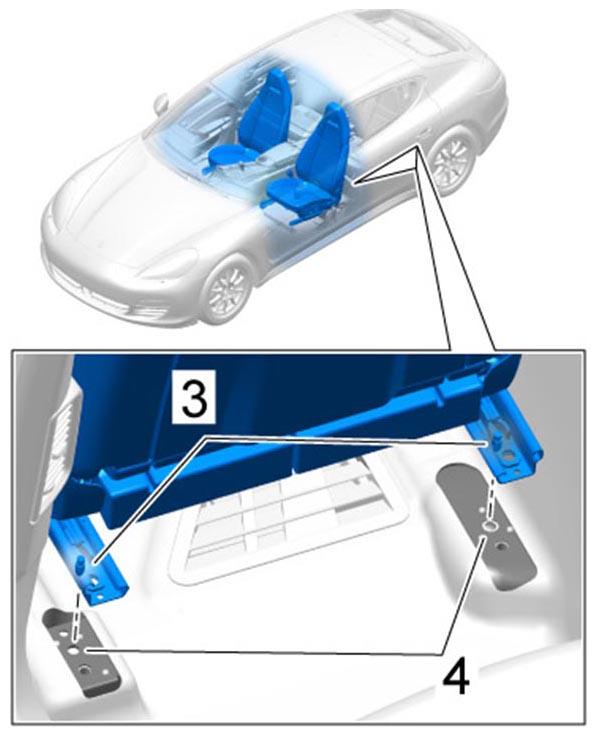

   Fig 3: Identifying Body Centering Pins

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Connect ground strap for battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
6. Move the front seat all the way back and secure it to the front seat frame with the fastening screws -2-  .

   Tightening torque 50 Nm (37 ftlb.) +/-5 Nm (+/-3.5 ftlb.)

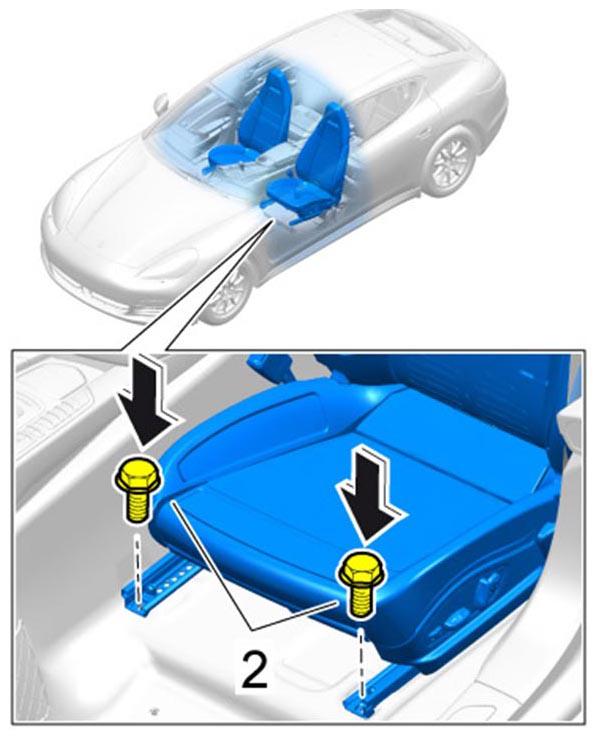

   Fig 4: Tightening Front Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Fit the front covers on the seat rail. Make sure that the cover is also fitted in the guide.

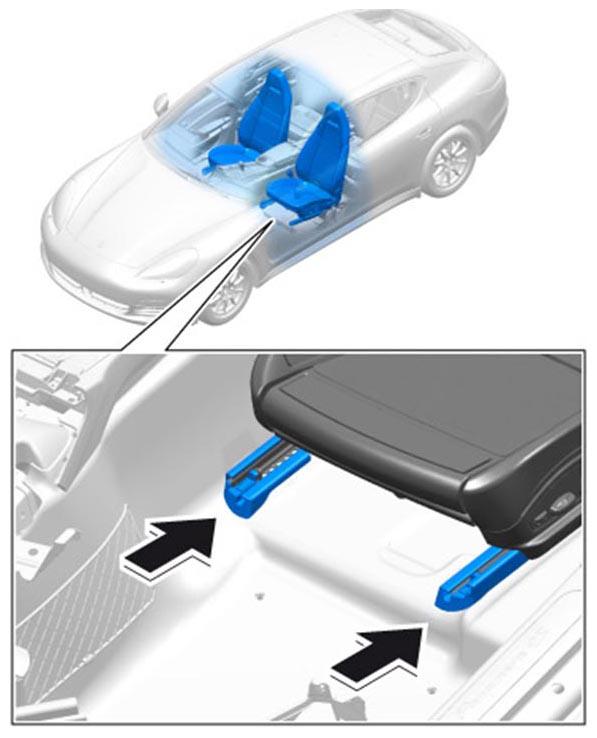

   Fig 5: Fitting Front Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Move the front seat all the way forward and secure it to the seat frame with the rear fastening screws -1-  .

   Tightening torque 50 Nm (37 ftlb.) +/-5 Nm (+/-3.5 ftlb.)

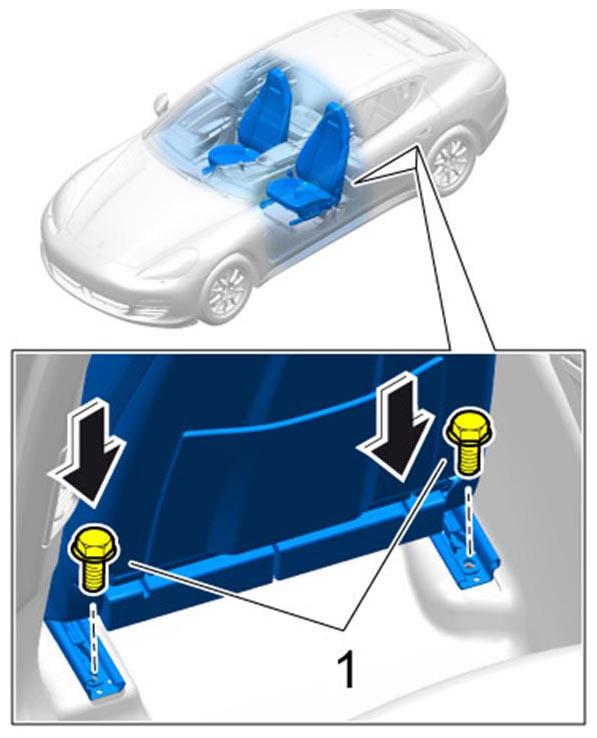

   Fig 6: Tightening Rear Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Fit the rear covers on the seat rail. Make sure that the cover is also fitted in the guide.

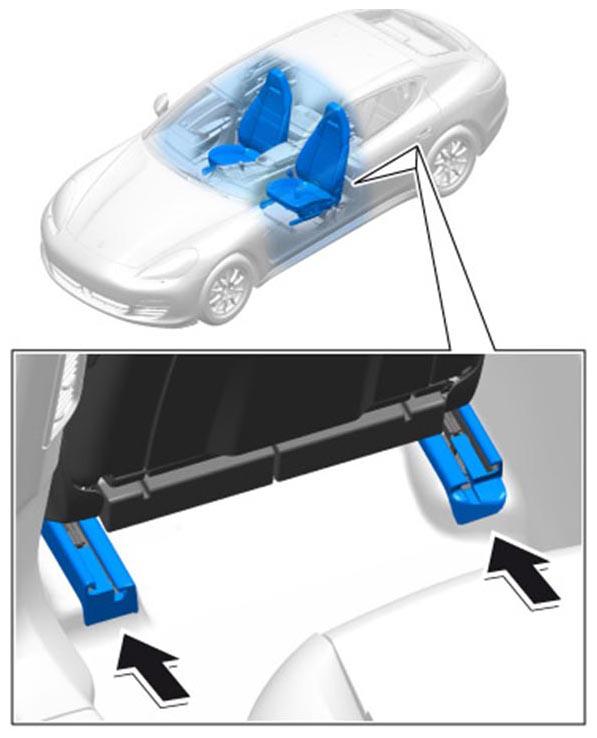

   Fig 7: Fitting Rear Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
