Installing Rear Part Of C-Pillar Trim Panel

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

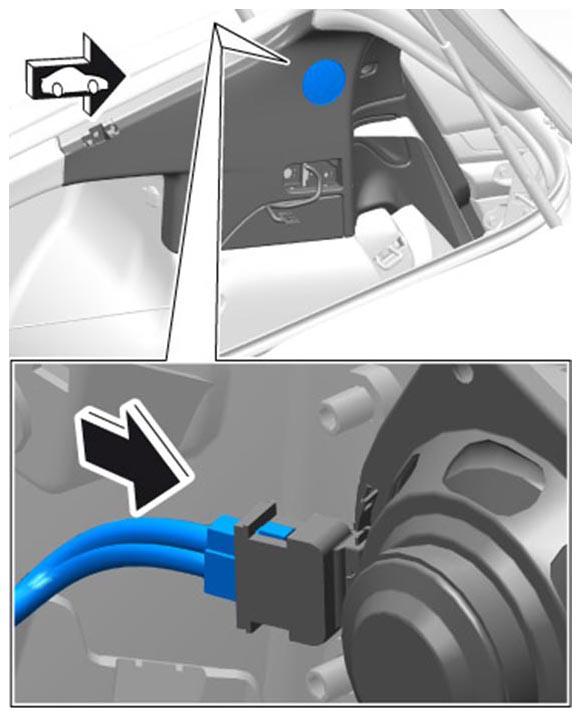

1. Connect plug connection for loudspeaker until it engages securely.
   Fig 1: Connecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

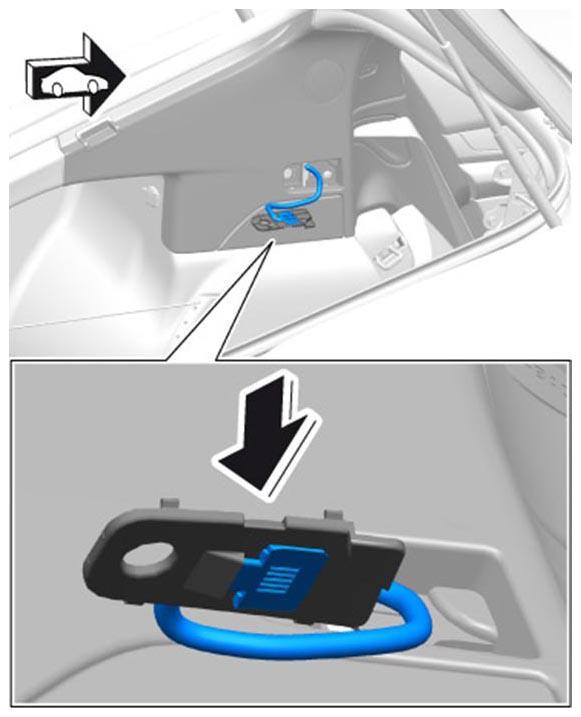

2. Guide contact plate through the opening in the trim panel.
3. Clip contact plate into the cover.
   Fig 2: Clipping In Contact Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

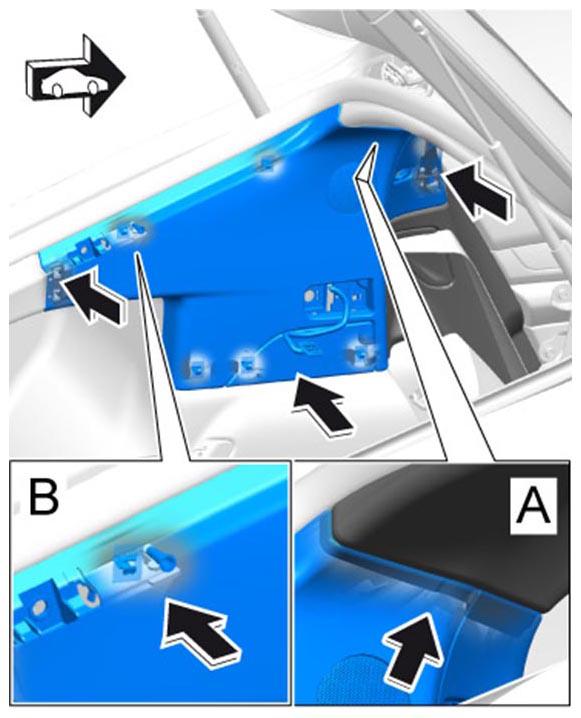

4. Secure rear part of C-pillar trim panel.
   1. 4.1. Place trim panel in installation position -A-  and -B-  .
   2. 4.2. Clip in trim panel.
   Fig 3: Clipping In Rear Part Of C-Pillar Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

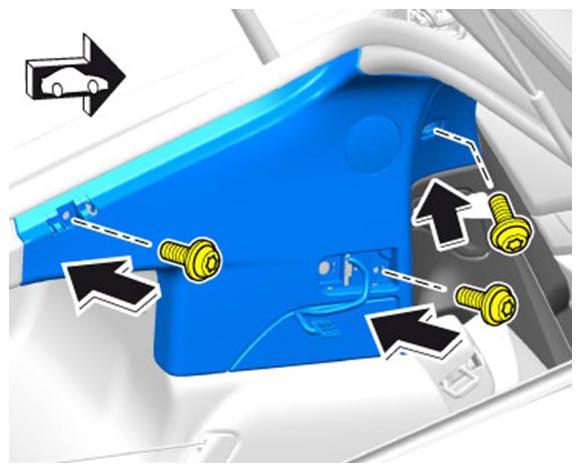

5. Tighten fastening screws to the specified tightening torque Tightening torque 5.5 Nm (4 ftlb.)  until secure.
   Fig 4: Securing Rear Part Of C-Pillar Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

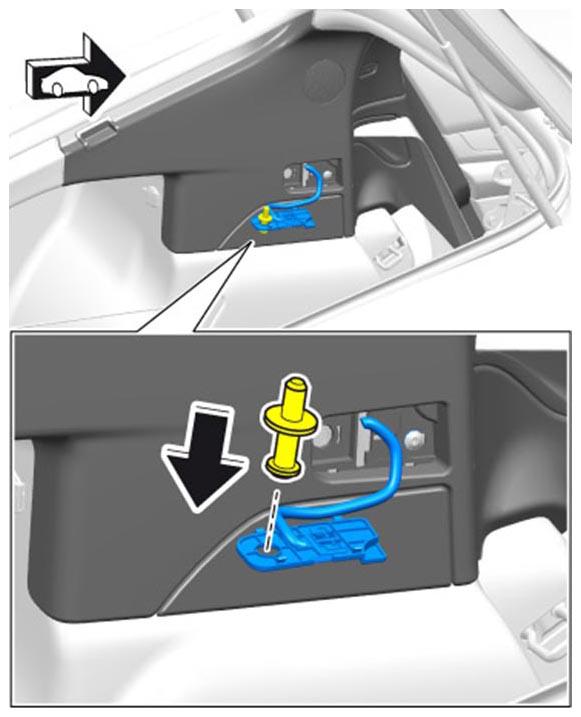

6. Insert bolt for roll-up sunblind in the cover.
   Fig 5: Inserting Bolt For Roll-Up Sunblind

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Tighten bolt for roll-up sunblind to the specified tightening torque Tightening torque 12 Nm  until secure.

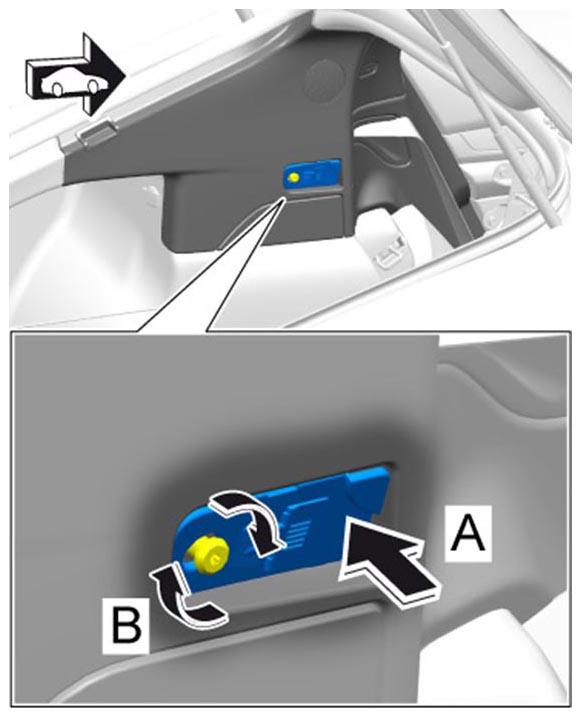

8. Clip in cover -A-  .
Fig 6: Screwing In Bolt For Roll-Up Sunblind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

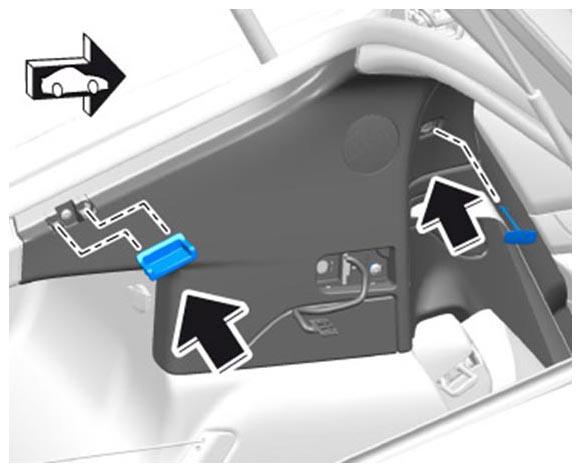

9. Clip in covers.
   Fig 7: Clipping In Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
