Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

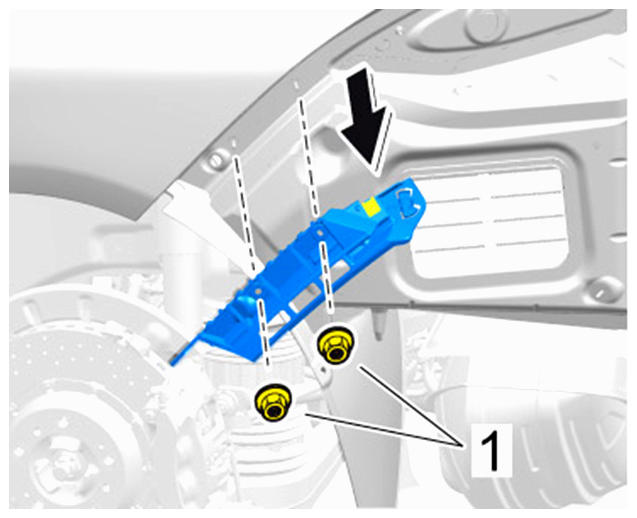

| Lateral retaining strip | Tightening torque | 4.8 Nm (3.5 ftlb.) | +/-1 Nm (+/-0.5 ftlb.) | ||
|
Removing lateral retaining strip |
|||||

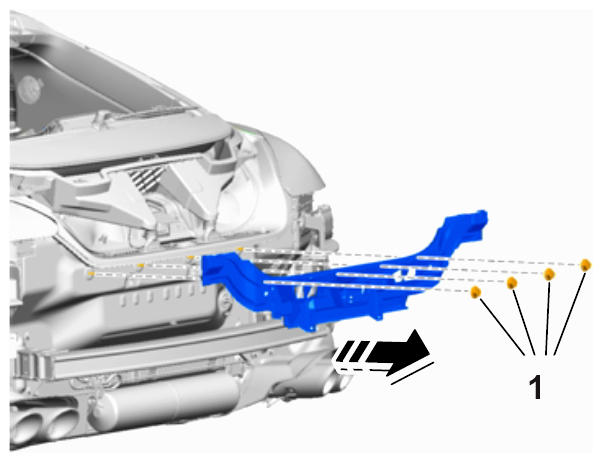

| Centre retaining strip to end plate | Tightening torque | 4.8 Nm (3.5 ftlb.) | +/-1 Nm (+/-0.5 ftlb.) | ||
|
Centre retaining strip |
|||||

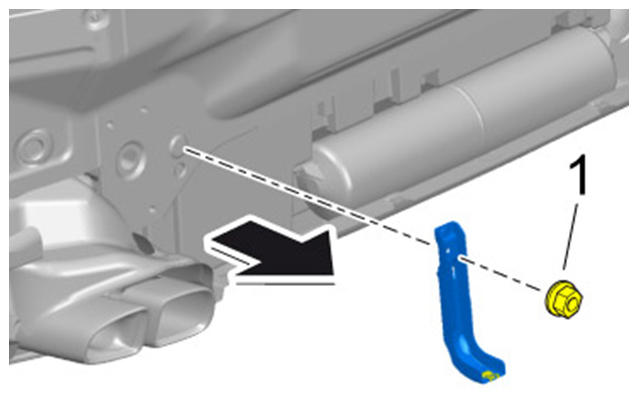

| Lower retaining strip to end plate | Tightening torque | 4.8 Nm (3.5 ftlb.) | +/-1 Nm (+/-0.5 ftlb.) | ||
|
Removing lower holder |
|||||

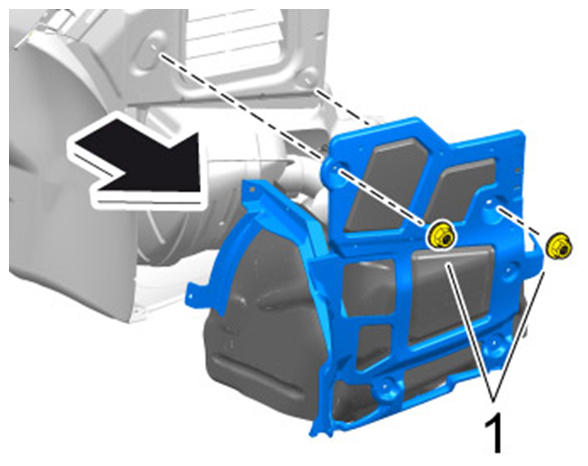

| Fastening screw for holder with heat protection | Tightening torque | 4.8 Nm (3.5 ftlb.) | +/-1 Nm (+/-0.5 ftlb.) | ||
|
Removing holder with heat protection |
|||||

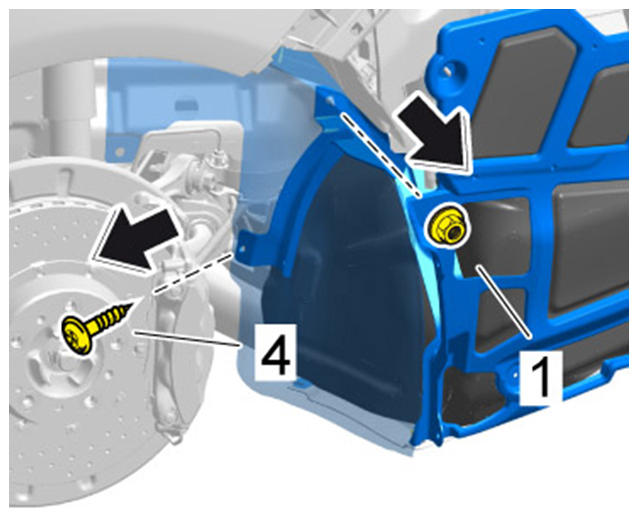

| Fastening nut for holder with heat protection | Tightening torque | 4.8 Nm (3.5 ftlb.) | +/-1 Nm (+/-0.5 ftlb.) | ||
|
Removing holder with heat protection |
|||||
