Removing Holder With Heat Protection

  1. Unscrew fastening screws -4-  .

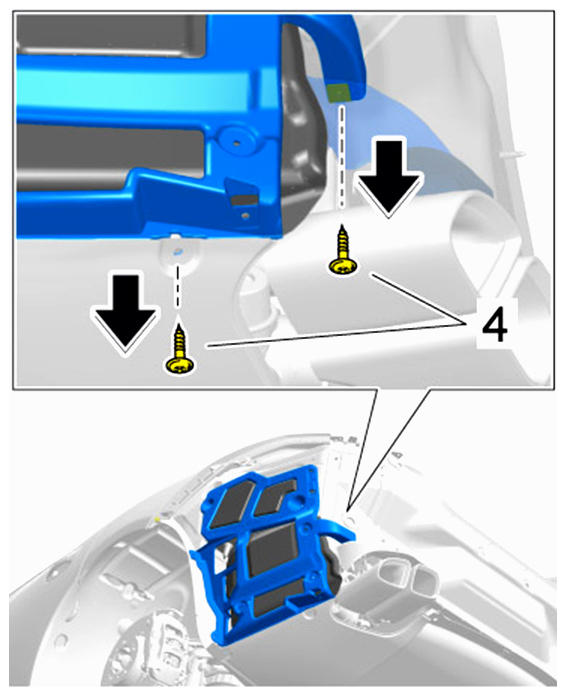

    Fig 1: Removing Holder With Heat Protection
    G09810883Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -4-  .
  3. Screw off fastening nut -1-  .

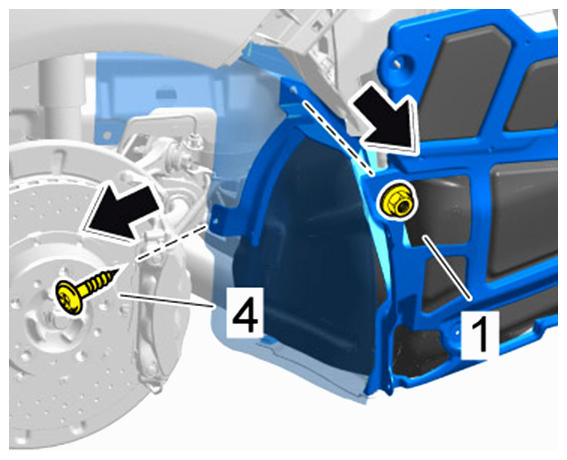

    Fig 2: Removing Holder With Heat Protection
    G09810884Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Screw off fastening nuts -1-  .

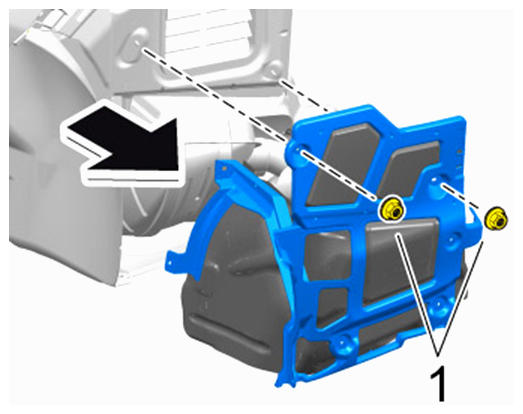

    Fig 3: Removing Holder With Heat Protection
    G09810885Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove holder with heat protection.
