Installing Side Retaining Strip

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol.
• Always use a clean cloth.
• The room and object temperature must be at least +18 °C.
• Humidity should be 40 % to 60 %.

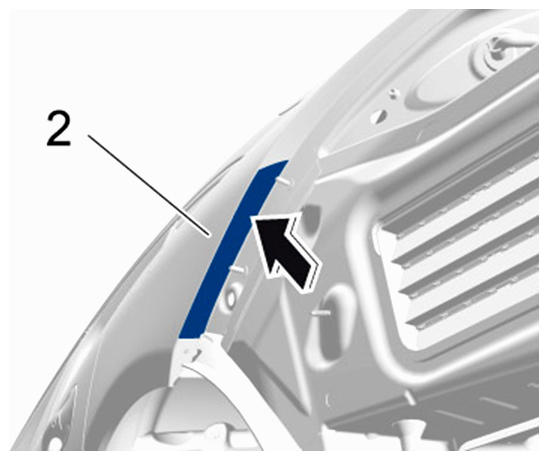

1. Check anti-chafing film -2-  for damage and replace protective film if necessary.
   Fig 1: Replacing Rear Protective Film

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. The retaining strips are installed in reverse order to removal.
3. Tighten retaining strips to the specified tightening torque.

   Side retaining strip Tightening torque 4.8 Nm (3.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)  .

   Centre retaining strip Tightening torque 4.8 Nm (3.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)  .

   Lower holder on end plate Tightening torque 4.8 Nm (3.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)  .

   Fastening screw for holder with heat protection Tightening torque 4.8 Nm (3.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)  .

   Fastening nut for holder with heat protection Tightening torque 4.8 Nm (3.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)  .
