Disassembling Rear Apron

  1. Remove cover for towing lug.
    1. 1.1. Release locking lug -arrow A-  .
    2. 1.2. Remove cover -arrow B-  .
    3. 1.3. Unhook safety strap -arrow C-  .

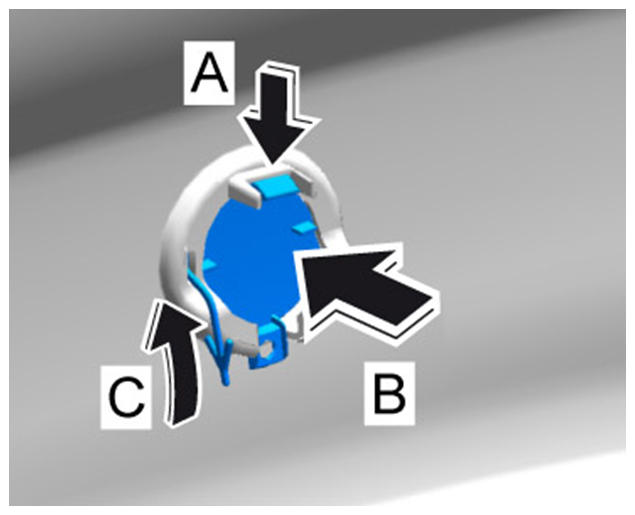

      4. Fig 1: Towing Lug Cover
      G09810868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
