Assembling Rear Apron

  1. Install cover for towing lug.
    1. 1.1. Hook in safety strap -arrow A-  .
    2. 1.2. Fit the cover -arrow B-  .
    3. 1.3. Clip in cover -arrow C-  .

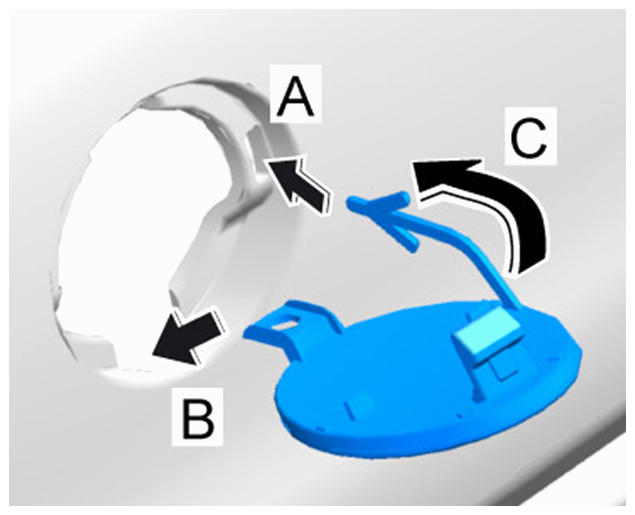

      4. Fig 1: Towing Lug Cover
      G09810869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
