Installing Front Retaining Strip

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol.
• Always use a clean cloth.
• The room and object temperature must be at least +18 °C.
• Humidity should be 40 % to 60 %.

1. Check anti-chafing film -2-  for damage and replace the film if necessary.

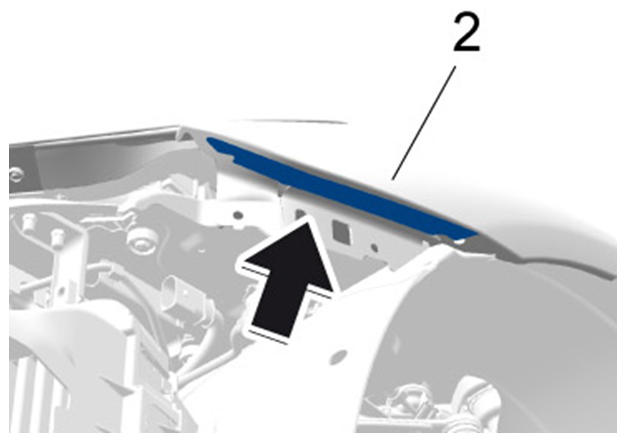

   Fig 1: Replacing Anti-Chafing Film

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit new speed nuts -3-  .

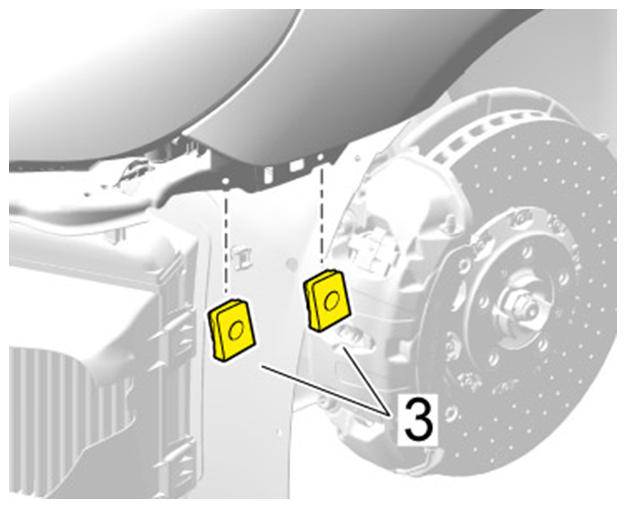

   Fig 2: Identifying Speed Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit new speed nut -4-  .
4. Position the holder.
5. Tighten fastening screws to the specified torque Tightening torque 2.8 Nm (2 ftlb.) -1-  .

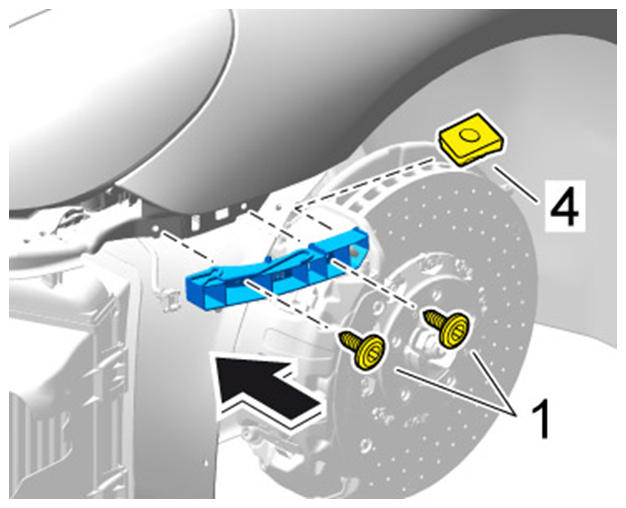

   Fig 3: Installing Front Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
